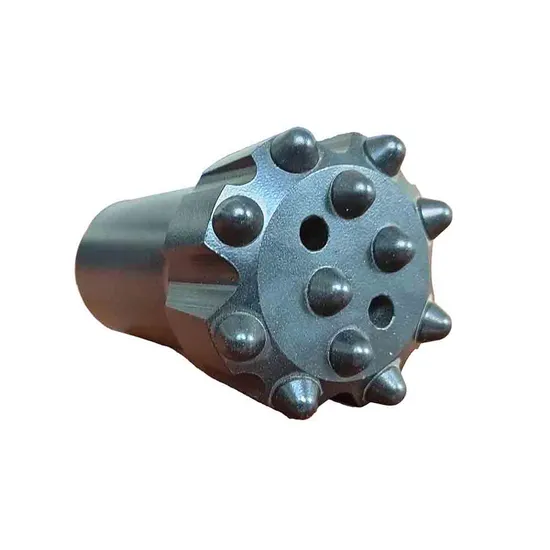

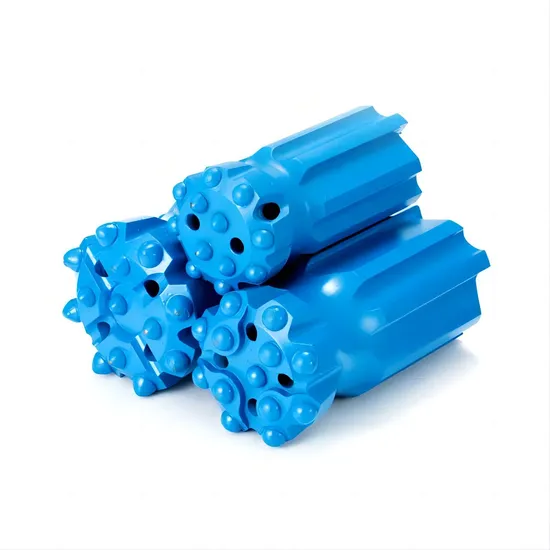

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer 9 primary threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These are designed for seamless use with button bits, cross bits, and reaming products.
| Carbide Dimensions | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|
| Gauge | Front | [mm] | [in] | Front | Side | ||
| 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| 8 | 12.7 | 6 | 11 | 85 | 3 3/8" | 2 | 1 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| 8 | 16 | 6 | 14 | 115 | 4 1/2" | 2 | 0 |
| 8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| 9 | 11 | 8 | 10 | 89 | 3 1/2" | 3 | 1 |
| 9 | 12.7 | 8 | 12.7 | 102 | 4" | 3 | 1 |
