We are committed to providing high-quality and durable drilling tools for various industries. With years of experience and expertise in the field, we have developed a range of shank adapters that are specifically designed to withstand the challenges of drilling in different geological conditions.
High-Performance Shank Adapters
Our HLX5, HLX5T, HFX5T, and RDX5 shank adapters are designed to be compatible with various drilling rigs and rock drills, making them versatile and reliable tools for your drilling operations. These shank adapters are engineered to provide a secure and efficient connection between the drill rod and the drilling rig, ensuring optimal performance and productivity.
⚙️
HLX5 Series
Designed for heavy-duty and high-torque applications, suitable for demanding drilling conditions.
⚡
Energy Efficiency
Patented designs offer improved energy transfer and reduced vibration for operator comfort.
🛡️
Premium Durability
Manufactured using high-quality alloy steel and advanced heat treatment processes.
🔄
Versatile Range
Including RDX5 adapters designed specifically for reverse circulation drilling environments.
Technical Excellence
With precision engineering and rigorous quality control measures, our shank adapters are built to withstand the demands of drilling in tough rock formations and abrasive conditions. Whether you are operating in mining, construction, or quarrying, our solutions are designed to meet your toughest challenges.

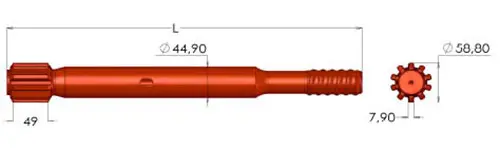

Specifications: HLX 5 / HLX 5 T / HFX 5 T / RDX5
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIA. |
Product no. |
| mm |
In. |
mm |
In. |
Ref 1 |
Ref 2 |
| R32 |
500 |
19.69 |
45 |
1.75 |
7803-7585-01 |
- |
| R38 |
500 |
19.69 |
45 |
1.75 |
7804-7585-01 |
90516173 |
| SR38 |
500 |
19.69 |
45 |
1.75 |
- |
90516177 |
| T38 |
500 |
19.69 |
45 |
1.75 |
7304-7585-01 |
90516198 |
| T45 |
500 |
19.69 |
45 |
1.75 |
- |
90003672 |
| R32 |
575 |
22.64 |
45 |
1.75 |
7803-7586-01 |
- |
| T35 |
575 |
22.64 |
45 |
1.75 |
7307-7586-01 |
- |
| SR38 |
575 |
22.64 |
45 |
1.75 |
- |
90516178 |
| T38 |
575 |
22.64 |
45 |
1.75 |
7304-7586-01 |
90516199 |
| T45 |
575 |
22.64 |
45 |
1.75 |
7305-7586-01 |
90516144 |
| T38 |
600 |
23.62 |
45 |
1.75 |
- |
- |
| T45 |
600 |
23.62 |
45 |
1.75 |
- |
- |
We understand that every drilling operation is unique, which is why we offer customization options to meet specific requirements and preferences. Contact us today to learn more about how our adapters can enhance the performance and efficiency of your operations.
Frequently Asked Questions
What materials are used in the manufacturing of these shank adapters?
Our shank adapters are manufactured using high-quality alloy steel combined with advanced heat treatment processes to ensure exceptional durability and wear resistance.
Are these adapters compatible with my existing drilling rig?
Yes, the HLX5, HLX5T, HFX5T, and RDX5 series are designed for versatile compatibility with a wide range of standard drilling rigs and rock drills.
What makes the HLX5T and HFX5T models different?
These models feature a patented design specifically engineered to improve energy transfer from the rig to the drill string while significantly reducing vibrations.
Do you offer solutions for reverse circulation drilling?
Yes, the RDX5 shank adapter is specifically designed to provide reliable performance and high durability in challenging reverse circulation drilling environments.
Can I request a customized shank adapter?
Absolutely. We offer customization options to meet unique drilling requirements and specific technical preferences for different geological conditions.
Which industries typically use these drilling tools?
Our drilling tools are widely used in the mining, heavy construction, and quarrying industries where high torque and heavy-duty performance are required.
