China Br1 DTH Drilling Hammer for Construction and Mining Factory, Factories

1 / 5

China Br1 DTH Drilling Hammer for Construction and Mining Factory, Factories

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Info

Model NO.BR1

CertificationCE, ISO 9001:2000, ISO 9001:2008

StandardAISI, GB

Surface TreatmentSpray-Paint

Manufacturing ProcessStamping

MaterialCarbon Steel

Machine TypeDrilling Tools

ColorRed, Black, Yellow, White

Bit AdapterBr1

Length698mm

Outside Diameter56mm

Weight8.5kg

Working Pressure0.8-1.5MPa

Production Capacity500000PCS/Month

Packaging & Delivery

Package Size30.00cm * 30.00cm * 30.00cm

Package Gross Weight5.000kg

Transport PackageWooden Case

Product Description

High air pressure DTH hammer is designed for percussive drilling in rock formation, characterized by high air pressure and high efficiency. Using compressed air to drive the piston, it generates high impact energy for rapid penetration. It is widely used in mining, quarrying, construction, and water well drilling industries.

Key Advantages

Maximum Energy Transfer: Inner structure designed according to newest rock drilling theory for fast drilling and low air consumption.
Premium Materials: High quality alloy steel and advanced processing for long service life.
Low Maintenance: Simple, reliable, and easy to assemble/disassemble inner structure.
Versatile Connection: Multi-head thread connecting chuck and cylinder for easy bit replacement.
Interchangeability: Fully compatible with standard DTH bits and drill pipes.

Main Applications

High pressure drilling rigs & Water well drilling
Bench drilling & Civil Engineering applications
Mining & Mineral Exploration
Oil well drilling

Technical Specifications

Type	Model	Length (mm)	Weight (kg)	Ext. Dia. (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99	Φ110-135
	QL4	1097	41	Φ99	Φ110-135
	Mission40	1005	40	Φ99	Φ110-135
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125	Φ135-155
	QL5	1147	73	Φ125	Φ135-155
	Mission50	1110	68.5	Φ125	Φ135-155
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142	Φ155-190
	QL6	1212	95	Φ146	Φ155-190
	Mission60	1161	90	Φ146	Φ155-190

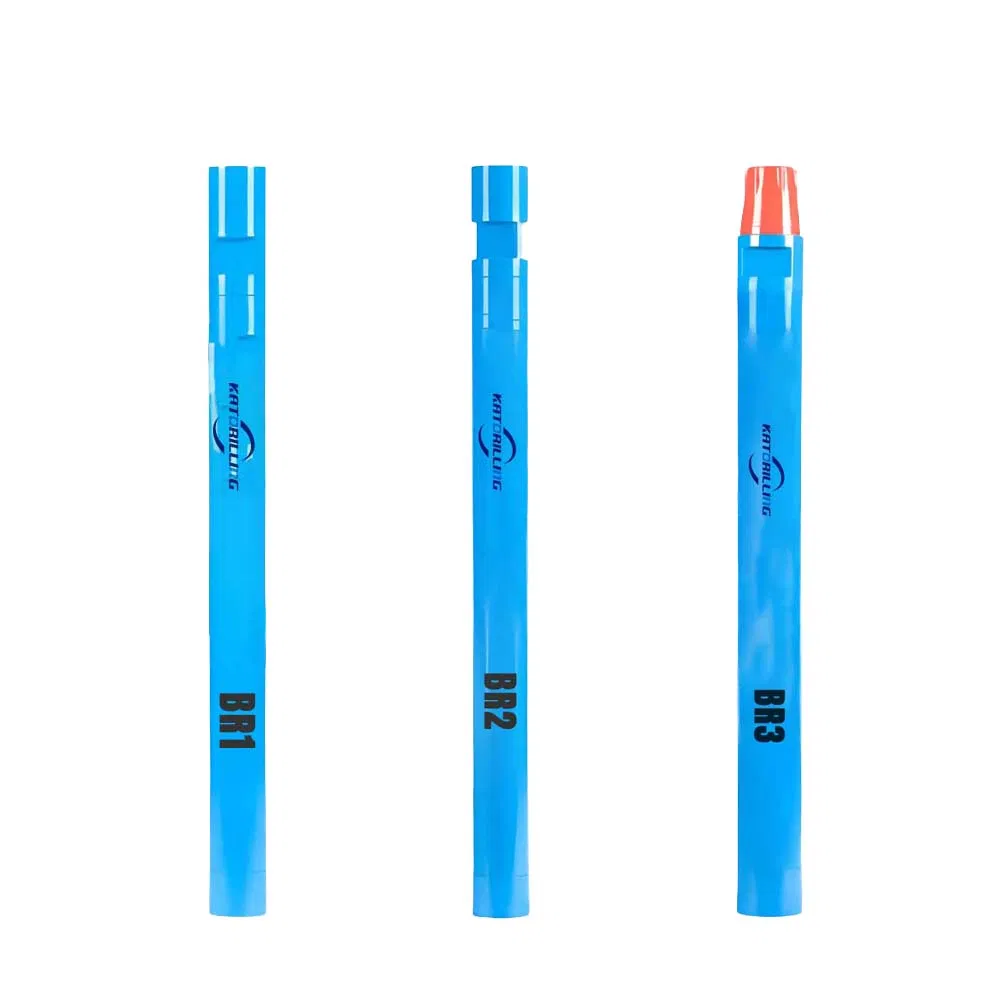

BR1 DTH Hammer Specific Details

Hammer Length (without bit)	698 mm
Top Sub Thread	RD40 BOX
Outside Diameter	56 mm
Weight	8.8 KG
Bit Diameter	64-76 mm
Working Pressure	0.8-1.5 MPa
Air Consumption	3 M³/min
Bit Shank	BR1

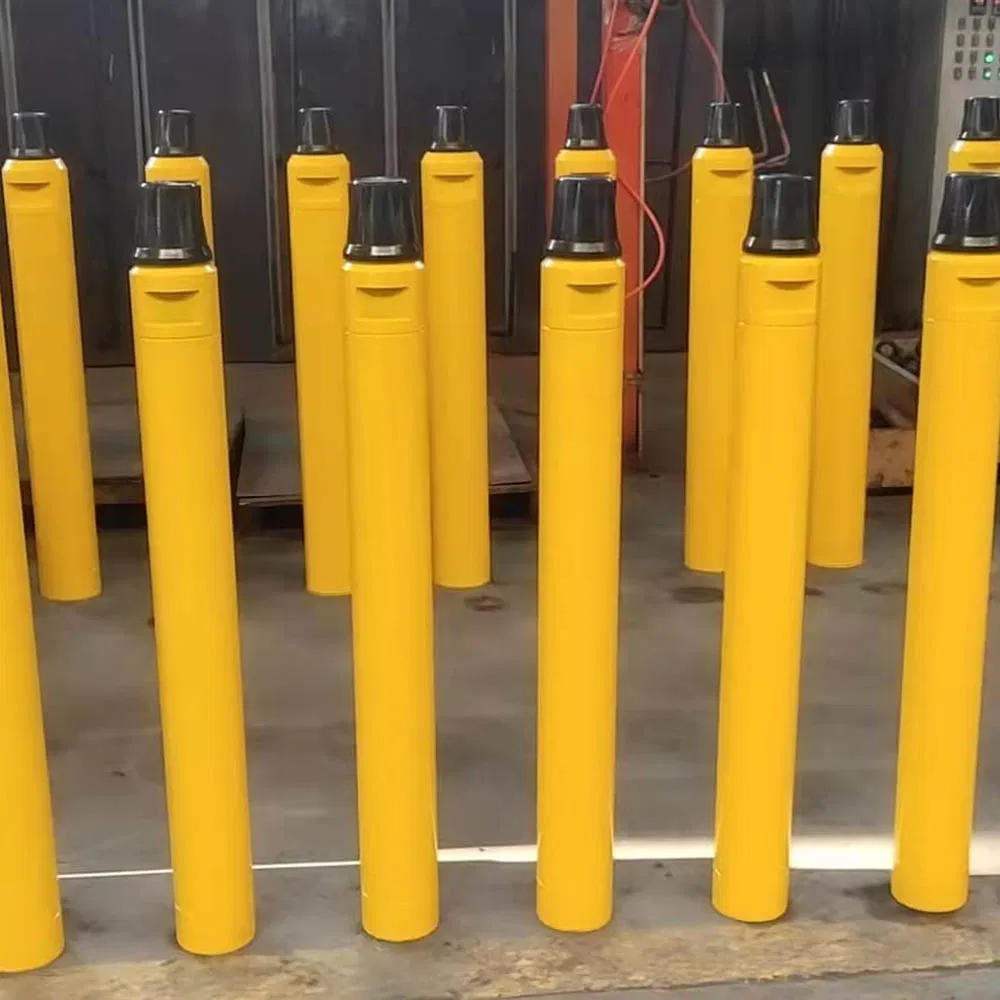

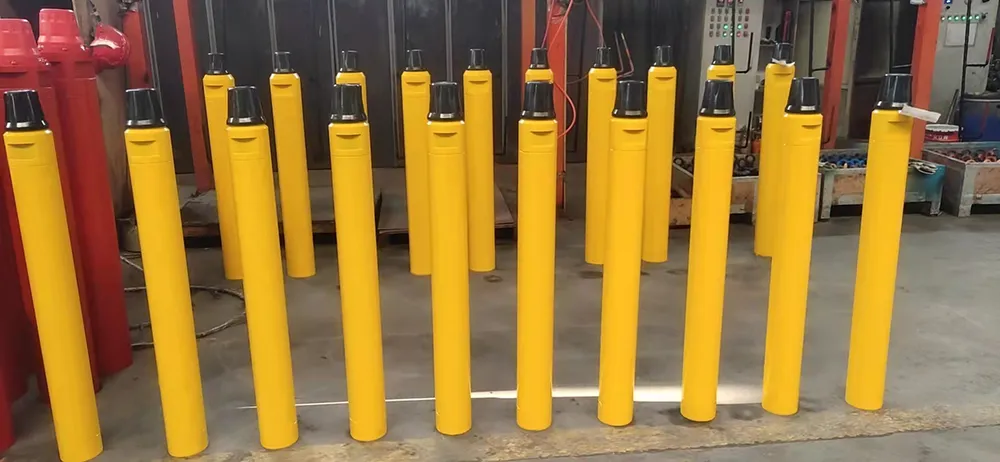

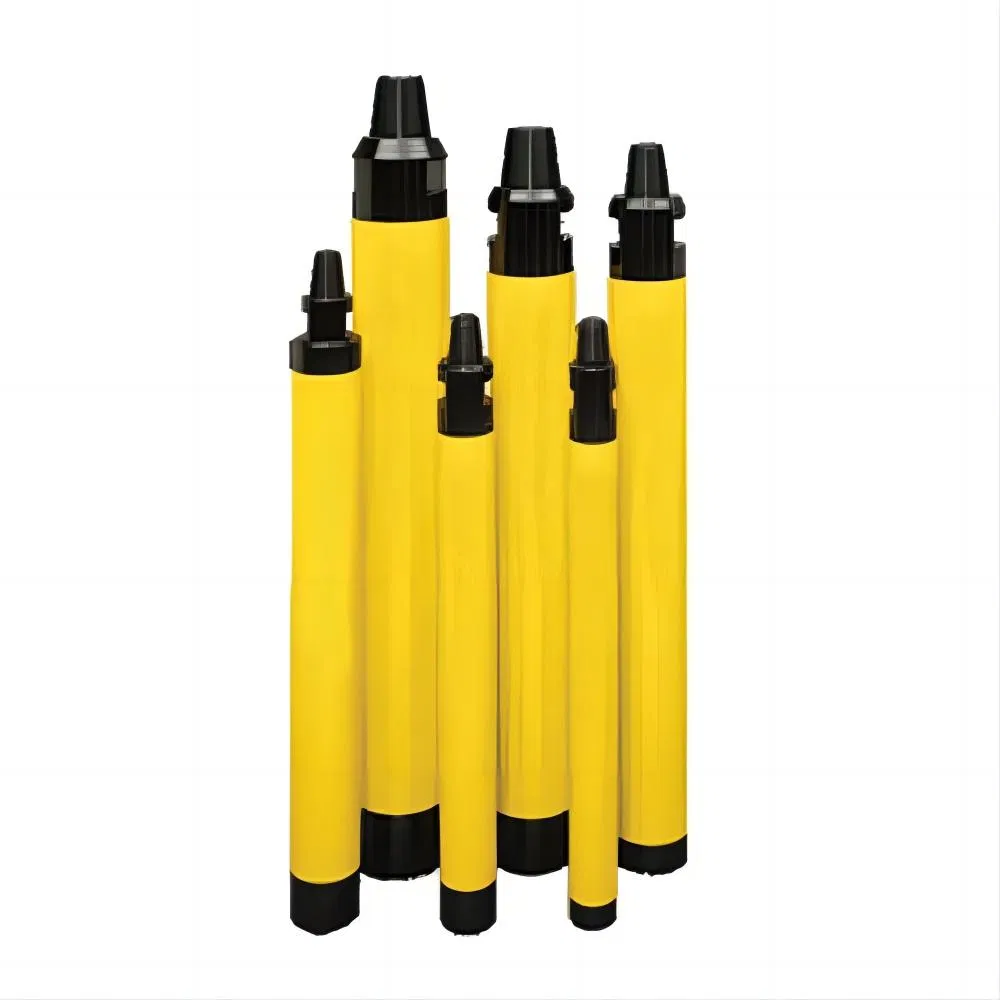

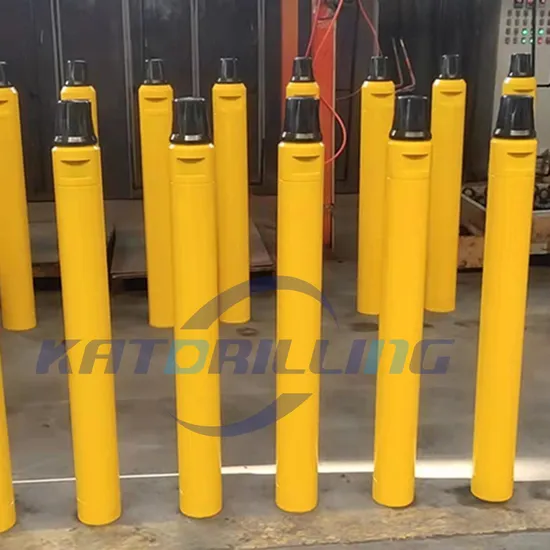

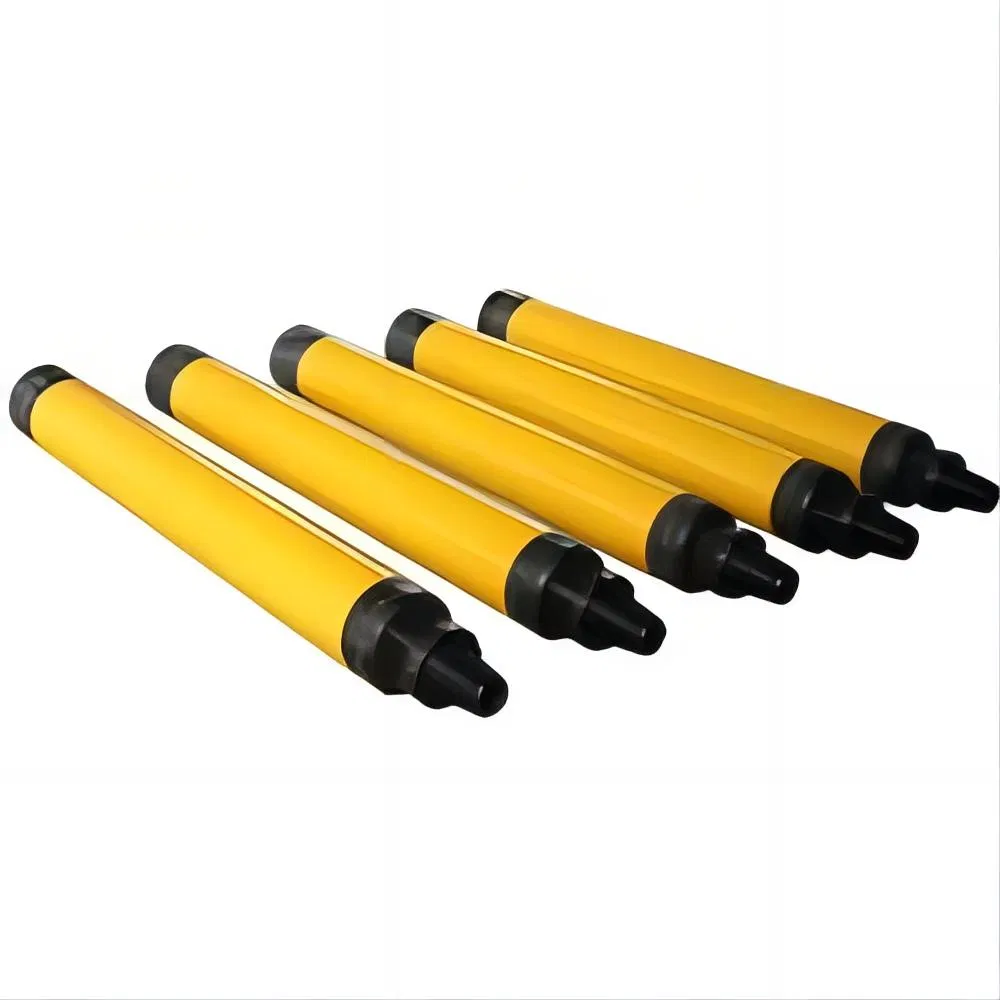

Detailed Photos

Packaging & Shipping

Frequently Asked Questions

1. What are the accepted methods of payment? We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

2. How long does it take to process an order? Based on the quantity, it normally takes 25 days for production. If the requested size is in stock, it only takes 2 to 3 days.

3. What are the available shipping options? For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or air. For bulk orders, shipping by air or sea is recommended.

4. How do you ensure product quality? We have an experienced internal QC team. Every order undergoes strict inspection and testing before being shipped out.

5. What is the after-sales service policy? Our sales team responds within 24 hours. We provide continuous technical support and offer free replacements for any confirmed quality failures.

6. Is the BR1 DTH hammer suitable for water well drilling? Yes, it is highly suitable for water well drilling, as well as mining, bench drilling, and various civil engineering applications.
