China Button bits for bench drilling Manufacturer, Factory

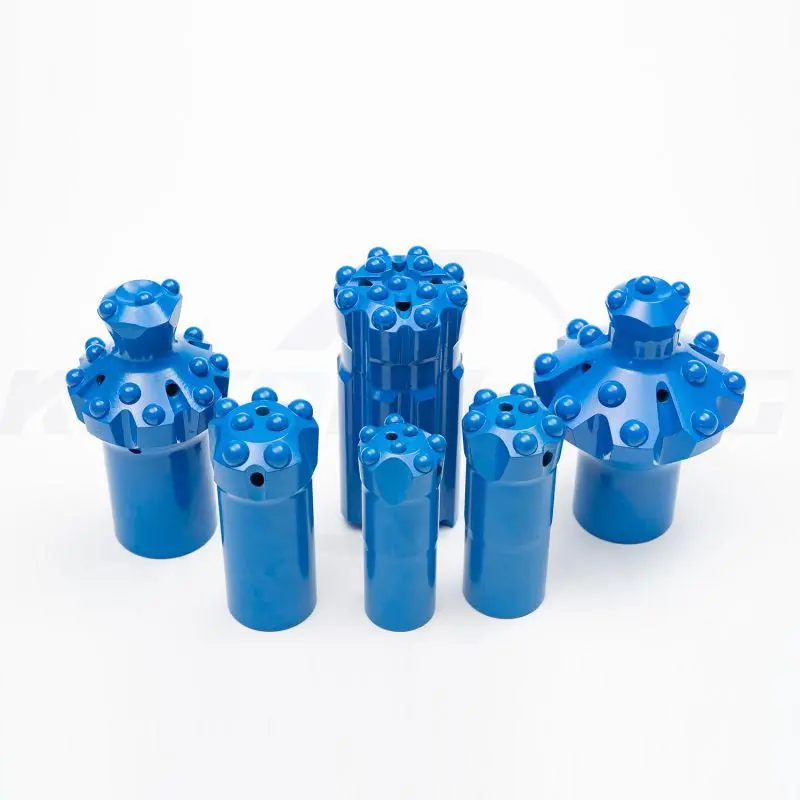

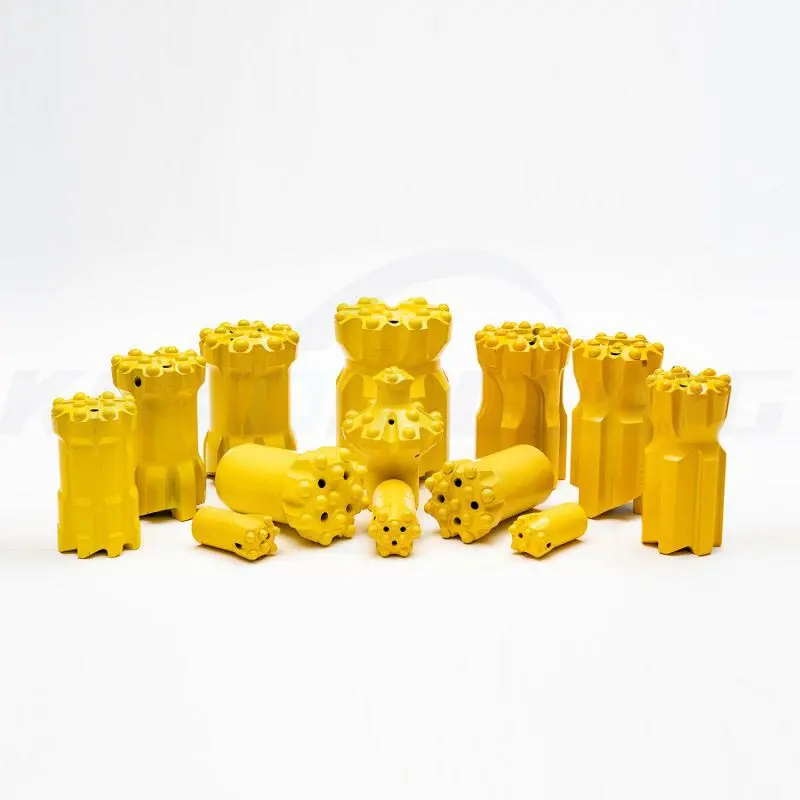

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads:Â R3212, R32,Â HL38,Â T38,Â T45,Â T51, T60,Â ST58Â andÂ ST68.Â They can be used withÂ button bits, cross bits and reaming products.

(1)Thread:Â R32, T35, R38, T38, T45, T51, ST58, ST68,T60

(2)Diameter: 54-152mm.

(3)Package: in wooden case or in carton.

(4)Productivity: 10000pcs/ month

Send Inquiry

Product Description

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 9 main threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They are compatible with button bits, cross bits and reaming products.

Our comprehensive range of rock drilling tools covers everything from 1” rope thread equipment up to T60 thread equipment. These tools are designed to improve productivity considerably in demanding drilling environments.

Bench Drilling Components

Bench drilling-R32

Bench drilling-T35

Bench drilling-R38

Bench drilling-T38

Bench drilling-T45

Bench drilling-T51

Bench drilling-ST58

Bench drilling-GT60

T35 Button Bits Specifications

Button Bit Type	Gauge		Front		Dimensions D		Flushing Hole
Button Bit Type	No.	mm	No.	mm	mm	in	Front	Side
Flat Face	6	10	3	9.5	54	2 1/8"	3	1
Flat Face	6	10	3	10	57	2 1/4"	3	1
Flat Face / Retrac
Retrac	6	10	3	9.5	54	2 1/8"	3	1

R38 Button & Cross Bits

Button Bit	Gauge (No/mm)	Front (No/mm)	Dim D (mm/in)	Flushing (F/S)
Standard Face	8 / 10	4 / 10	64 / 2 1/2"	2 / 0
Large Face	8 / 14	6 / 14	102 / 4"	2 / 0
Drop Center Type
Drop Center	6 / 10	3/1 / 10/9	64 / 2 1/2"	3 / 0

T38 Button Bits Technical Data

Model Type	Gauge Buttons	Front Buttons	Diameter (mm)	Diameter (in)
Standard	6 x 11mm	3 x 11mm	64mm	2 1/2"
Heavy Duty	8 x 12.7mm	6 x 12.7mm	89mm	3 1/2"

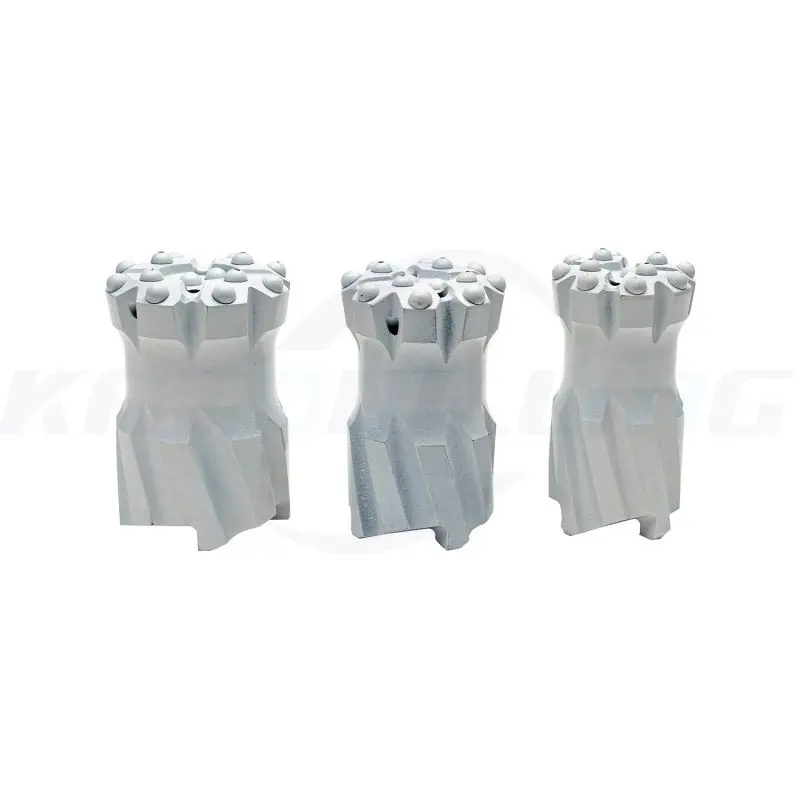

Retrac & Drop Center Options
Retrac HD	8 x 14mm	6 x 14mm	102mm	4"

T45 & T51 Production Tools

Thread	Bit Diameter	Gauge Dimension	Front Dimension	Flushing Holes
T45	76mm (3")	6 x 12.7	3 x 12.7	3 Front / 1 Side
T45	89mm (3 1/2")	6 x 14	4 x 14	3 Front / 0 Side
T51	89mm (3 1/2")	6 x 14	4 x 14	3 Front / 0 Side
T51	115mm (4 1/2")	8 x 14	7 x 14	4 Front / 2 Side

Large Diameter Bits (ST58, GT60, ST68)

Thread Type	Application	Bit Diameter (mm)	Gauge Buttons	Front Buttons
ST58	Retrac HD	102mm	8 x 14mm	6 x 12.7mm
GT60	Flat Face	115mm	8 x 14mm	7 x 14mm
ST68	Standard	102mm	8 x 12mm	10 x 12mm
ST68	Reaming	152mm	4 x 16mm	8 x 16mm

Frequently Asked Questions

Q1: What are the main thread types available for bench drilling tools? We offer 9 primary thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68, covering a wide range of production requirements.

Q2: Can these button bits be used with reaming products? Yes, our comprehensive range includes button bits, cross bits, and reaming products that are fully compatible with standard drilling rods and shank adapters.

Q3: What is the benefit of using "Retrac" type button bits? Retrac bits are designed with special grooves to help extract the drill string in difficult or fractured rock formations, significantly improving hole straightness and recovery speed.

Q4: What diameters are available for ST68 reaming bits? Our ST68 reaming bits are typically available in diameters such as 152mm (6"), designed for enlarging pilot holes in production drilling.

Q5: How does the flushing hole configuration affect performance? The number and placement of flushing holes (front and side) are optimized to efficiently clear rock chips from the bit face, reducing wear and preventing overheating during high-speed drilling.

Q6: Are these tools compatible with large-scale production drilling? Absolutely. Our range covers everything from 1” rope threads to heavy-duty GT60 and ST68 threads, making them ideal for high-productivity bench drilling and large-scale mining operations.
