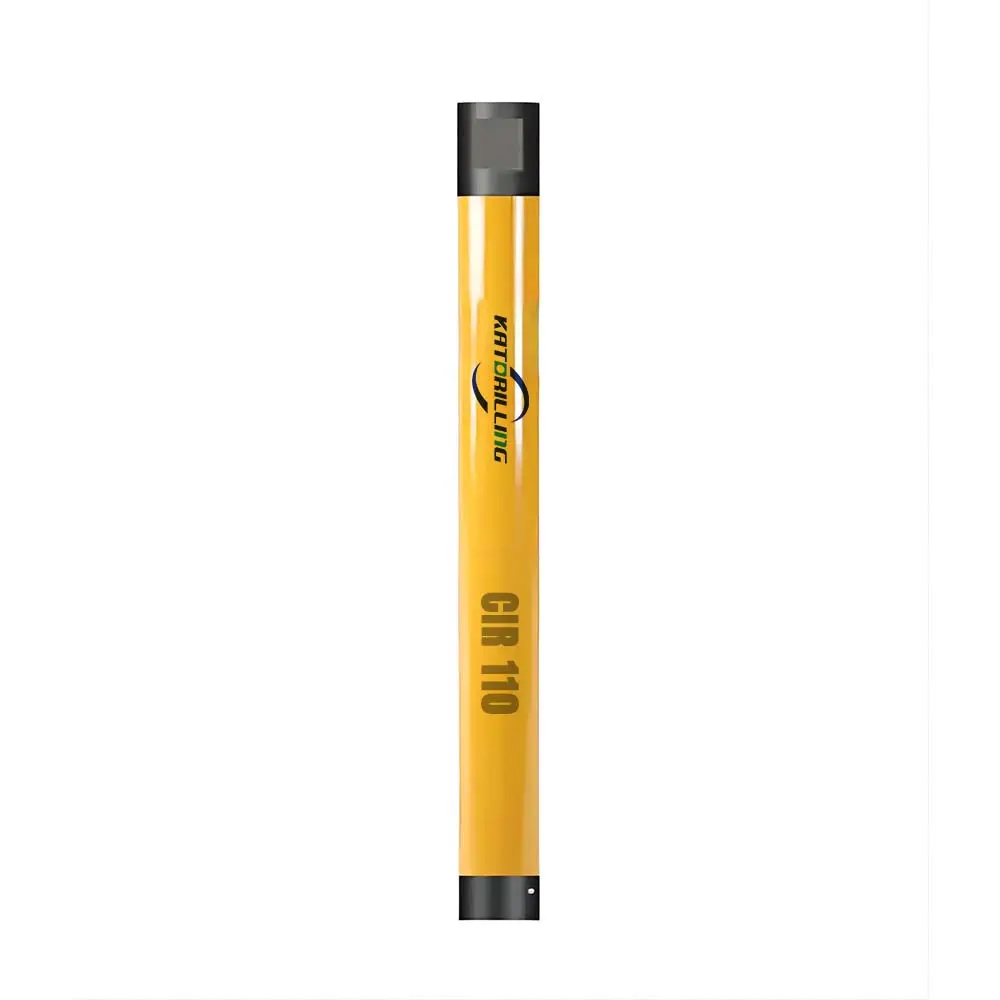

CIR SERIES DTH Hammers
Models available: CIR50 / CIR60 / CIR65 / CIR76 / CIR90 / CIR110 / CIR130 / CIR150 / CIR170
The patent steel valve design increases work efficiency by at least 20%.
These hammers are widely utilized in various demanding environments:
| Hammer Length (without bit) | 840 mm |
| Top Sub Thread | API 2 3/8" REG BOX |
| Outside Diameter | 98 mm |
| Weight | 33 KG |
| Bit Diameter | 110 - 150 mm |
| Working Pressure | 5 - 10 Bar |
| Air Consumption | 7 - 12 M³/min |
| Bit Shank | CIR110 |
| Item Description | Part Number |
|---|---|
| 1. Top Sub | KAT110-01 |
| 2. Cap | KAT110-02 |
| 3. Check Valve | KAT110-03 |
| 4. Spring | KAT110-04 |
| 5. Shim | KAT110-05 |
| 6. Rubber Ring | KAT110-06 |
| 7. Valve Cap | KAT110-07 |
| 8. Valve | KAT110-08 |
| 9. Air Distributor | KAT110-09 |
| 10. Inner Cylinder | KAT110-10 |
| 11. Piston | KAT110-11 |
| 12. Guide Sleeve | KAT110-12 |
| 13. Driver Sub | KAT11013 |
| 14. Outer Sleeve | KAT11014 |
The CIR110 features a patented steel valve design that improves working efficiency by at least 20% compared to standard models.
The CIR series is designed for low-pressure operations, specifically between 5 to 10 Bar (working pressure).
It is compatible with bit diameters ranging from 110mm to 150mm using the CIR110 bit shank.
No, the wear sleeve for the CIR series hammers is not reversible. It is designed for specific high-performance orientation.
Yes, the CIR110 is widely used for water well drilling, as well as quarry mining, road construction, and slope protection.
All critical internal components undergo a strict heat treatment process to maximize tool longevity and wear resistance.
