China CIR50 628mm Low Air Pressure DTH Hammers for Mining Manufacturer, Factory

1 / 5

China CIR50 628mm Low Air Pressure DTH Hammers for Mining Manufacturer, Factory

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

CIR50

Certification

CE, ISO 9001:2000, ISO 9001:2008

Material

Carbon Steel

Surface Treatment

Spray-Paint

Machine Type

Drilling Tools

Bit Adapter

CIR / DHD / M / QL / SD

Production Capacity

500,000 PCS/Month

Origin

China

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Package Type

Standard Wooden Case

Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

High Energy Transfer: Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to special inner structure.
Premium Materials: Smooth performance and long service life due to high quality alloy steel and advanced processing.
Easy Maintenance: Low problem rate and simple assemble/disassemble structure.
Versatile Connection: Multihead thread connecting chuck makes it easy to depart bit from hammer.
Interchangeable: Fully compatible with standard DTH bits and drill pipes.

Key Applications:

Water well drilling, Bench drilling, Mining / Mineral Exploration, Oil well drilling, and Civil Engineering Applications.

Technical Specifications

Type	Model	Length (mm)	Weight (kg)	External Dia.	Hole Range
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340 / SD4 / QL4	1030-1097	39-41	Φ99	Φ110-135
5 inch	DHD350 / SD5 / QL5	1110-1214	68-76	Φ125	Φ135-155
6 inch	DHD360 / SD6 / QL6	1161-1261	90-100	Φ142-146	Φ155-190
8 inch	D85 / SD8 / QL8	1338-1492	176-192	Φ180	Φ195-254

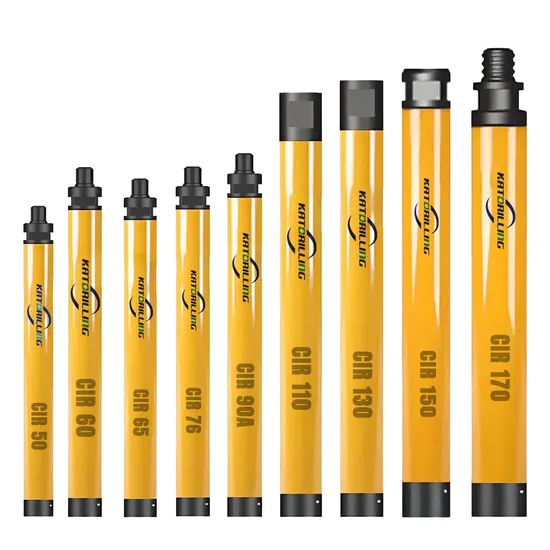

Low Air Pressure Hammers Data
Item	Length (mm)	Ext. Dia (mm)	Weight (kg)	Pressure (Bar)	Bit Shank
CIR-50	628	44	5	4-10	CIR50
CIR-60	777	53	7.5	4-10	CIR60
CIR-65	745	61	13	4-10	CIR65
CIR-76	811	66	13.5	4-10	CIR70

Frequently Asked Questions

What are the main advantages of the CIR50 DTH Hammer?

The CIR50 offers a powerful drilling capacity with high penetration rates, low air consumption, and a simple design that ensures easy maintenance and long service life.

What materials are used for these drilling tools?

The hammers are manufactured using high-quality alloy steel and carbon steel, treated with advanced processing technologies to ensure durability in harsh rock conditions.

Is this hammer compatible with other drill bits?

Yes, our DTH hammers are designed to be interchangeable with various standard DTH bits (DHD, SD, QL, Mission series) and standard drill pipes.

What is the typical hole range for the 4-inch series?

The 4-inch DTH series, including models like DHD340 and SD4, typically covers a drilling hole range of Φ110mm to Φ135mm.

Does it require a foot valve in the bit?

The advanced design of these hammers maximizes efficiency and, in many configurations, a foot valve is not required in the bit, reducing maintenance complexity.

How is the product packaged for international shipping?

All hammers and bits are securely packed in sturdy wooden cases to prevent damage during transport and ensure they arrive in perfect condition.
