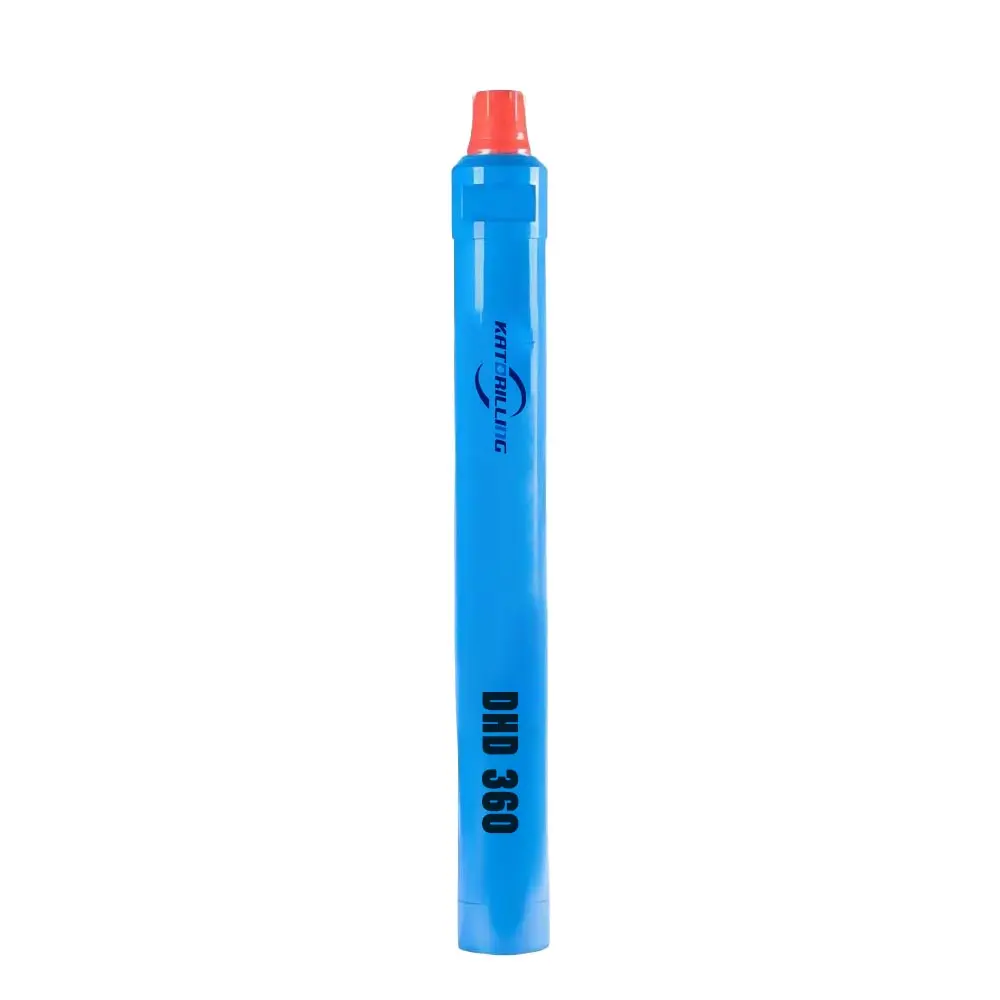

DHD360 High Air Pressure DTH Hammer

BR1/BR2/BR3

DHD3.5/DHD340/DHD350/DHD360/DHD380

QL40/QL50/QL60/QL80

MISSION40/MISSION50/MISSION60/MISSION80

Send Inquiry

Product Description

DHD360 Quarry Mining High Air Pressure DTH Hammer

DHD SERIES DTH Hammers

Model Range: DHD3.5 / DHD340 / DHD350 / DHD360 / DHD380

DESIGN HIGHLIGHTS

DHD/QL/MISSION series is a valve-less type hammer designed for high performance at low operating air pressure.
Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
DHD/QL/MISSION series hammers maximize energy output and reduce service requirements.
Wear sleeve is not reversible.
All critical internal components are heat treated under strict control to maximize tool longevity.

APPLICATIONS

These hammers are widely used in mining, quarrying, and road construction for drilling and blasting work, as well as water well drilling, slope protection, anchoring, and more.

DTH HAMMERS SERIES AVAILABLE

High pressure series
Medium pressure series
Low pressure series
High efficiency high pressure series
Reverse circulation series

TECHNICAL SPECIFICATIONS

Type	Model	Length (mm)	Weight (kg)	External Dia. (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99
	QL4	1097	41	Φ99
	Mission40	1005	40	Φ99
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125
	QL5	1147	73	Φ125
	Mission50	1110	68.5	Φ125
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142
	QL6	1212	95	Φ146
	Mission60	1161	90	Φ146
8 inch	D85	1492	188	Φ180	Φ195-254
	SD8	1463	192	Φ180
	QL8	1465	182	Φ180
	Mission80	1338	176	Φ180

DHD360 DETAILED PARAMETERS

Hammer Length (without bit)	1063 (mm)
Top Sub Thread	API 3 1/2" REG PIN
Outside Diameter	142 (mm)
Weight	100.5 (kg)
Bit Diameter	150 - 190 (mm)
Working Pressure	10 - 25 (Bar)
Air Consumption	20 - 28 (M³/min)
Bit Shank	DHD360

Frequently Asked Questions (FAQ)

Q: What is the main benefit of the valveless design in DHD hammers? A: The valveless design allows for high performance even at low operating air pressures, maximizing energy output while reducing maintenance requirements.

Q: What drilling applications is the DHD360 suitable for? A: It is widely used for mining, quarrying, road construction, water well drilling, slope protection, and anchoring projects.

Q: How is the durability of the internal components ensured? A: All critical internal components undergo strict heat treatment processes to maximize tool longevity and withstand heavy-duty applications.

Q: What is the recommended working pressure for the DHD360 hammer? A: The DHD360 operates efficiently within a working pressure range of 10 to 25 Bar.

Q: Does the DHD360 require a bit with a foot valve? A: No, the DHD series bits are designed with a robust structure that does not require a foot valve.

Q: What size hole can the DHD360 hammer drill? A: It is suitable for drilling holes ranging from 155mm to 190mm in diameter.
