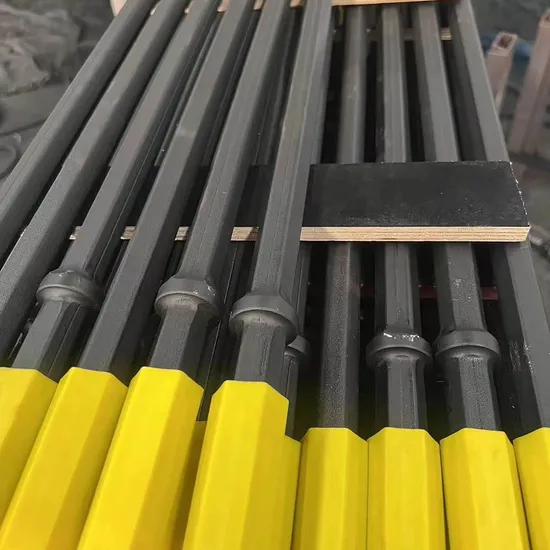

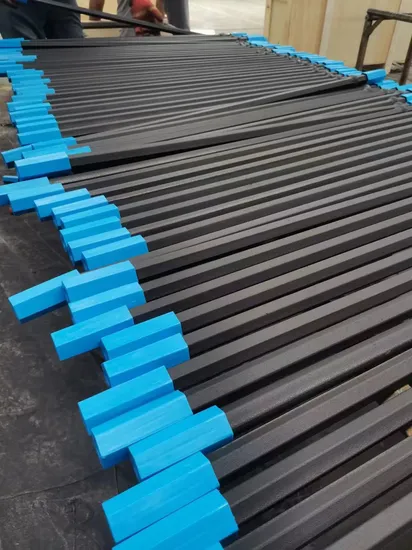

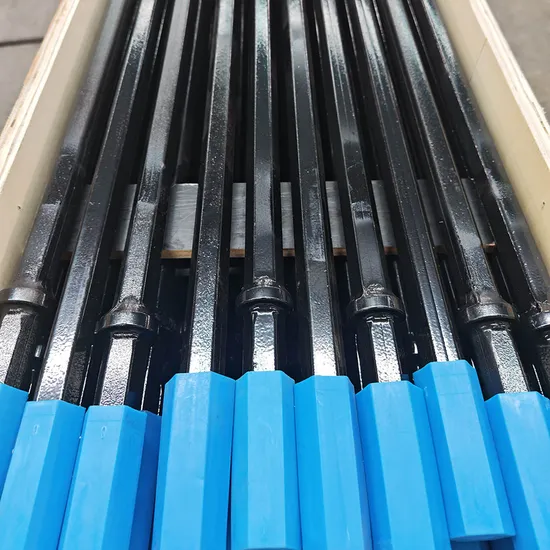

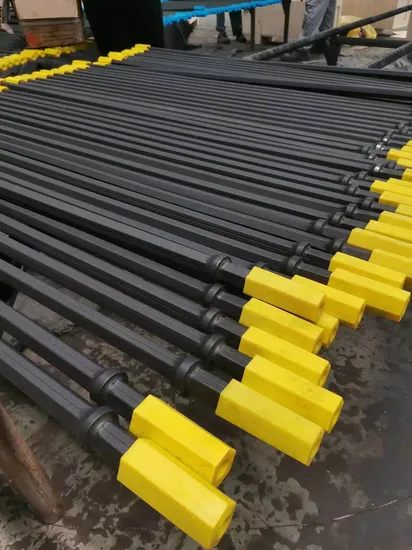

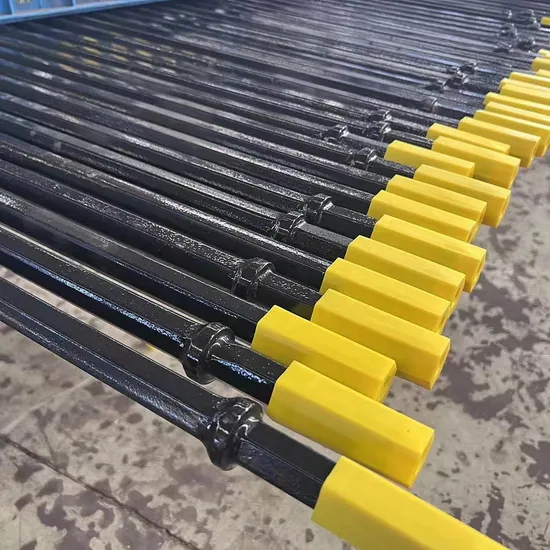

Taper drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other contractions. It works with taper drill bits and has different length for various applications. Our taper drill rods come in a variety of taper angles. Generally, the light duty rock drill usually use 7 taper or smaller taper angle, the heavy duty rock drill mainly use 11, 12 taper angle.
The basic theory is that taper drill rods and taper drill bits must be in the same tapered degree. We provide tapered rods in a full range of shank configurations and steel hex diameters for hand-held pneumatic drilling needs.
Shank hex. 22 mm (7/8") x 108 mm (4 1/4"). Rod hex. 22 mm (7/8). Flushing hole diameter 6.7 mm
| ROD CROSS SECTION | Length | Weight approx. | |
|---|---|---|---|
| mm | foot/inch | kg | |
| 4º46′ Taper Angle | |||
| 22H | 800 | 2′7½″ | 2.8 |
| 22H | 1600 | 5′3″ | 5.3 |
| 22H | 2400 | 7′10½″ | 7.7 |
| 22H | 4000 | 13′1½″ | 12.7 |
| 7º Taper Angle | |||
| 22H | 400 | 1′3¾″ | 1.6 |
| 22H | 1830 | 6′ | 6 |
| 22H | 3050 | 10′ | 9.7 |
| 22H | 8000 | 26′3″ | 24.9 |
| 11º Taper Angle | |||
| 22H | 800 | 2′7½″ | 2.8 |
| 22H | 1525 | 5′ | 5 |
| 22H | 3655 | 11′11⅝″ | 11.6 |
| 22H | 8000 | 26′3″ | 24.9 |
| 12º Taper Angle | |||
| 22H | 610 | 2′ | 2.2 |
| 22H | 2000 | 6′6¾″ | 6.5 |
| 22H | 3965 | 13′ | 12.5 |
| 22H | 8000 | 26′3″ | 22.4 |
