Premium rock drilling tools manufacturer produces shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. Female shank adapters are used when the drilling space is limited and the total feed length is important, for example, underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels). The shank adapters are designed to withstand the high impact power of modern rock drills and are made from specially selected material which is hardened through carburizing.
| Adapted Models & Brands | |
|---|---|
| Atlas Copco | vl140, bbc42, bbc44, bbc100, cop125, cop130, cop1028, cop1238, cop1840, cop1850, cop2150, cop2550, RD 14S, RD 18S, RD 22S, cop1838, cop2238, cop3038, cop4038, etc. |
| Tamrock | HLX 1, RD106, HL300, RD314, HLX5, RD520 PE, HL500, HL510, HL550S, HL600, HL700, HL800T, HL1000, HL1500T, etc. |
| Furukawa | HD 200, HD 260, HD 300, HD 500, HD 609, HD 612, HD 709, HD 712, HD 822 QED, HD 836, PD 200, etc. |
| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YH 65, YH 70, LM 500, YH 80A, YH 95 RP, YH 100 RP, YH 135, etc. |
| Montabert | HC 20, hc25, hc40, hc50, hc80, hc120, hc90, hc105, hc109, hc160, hc170, hc200, etc. |

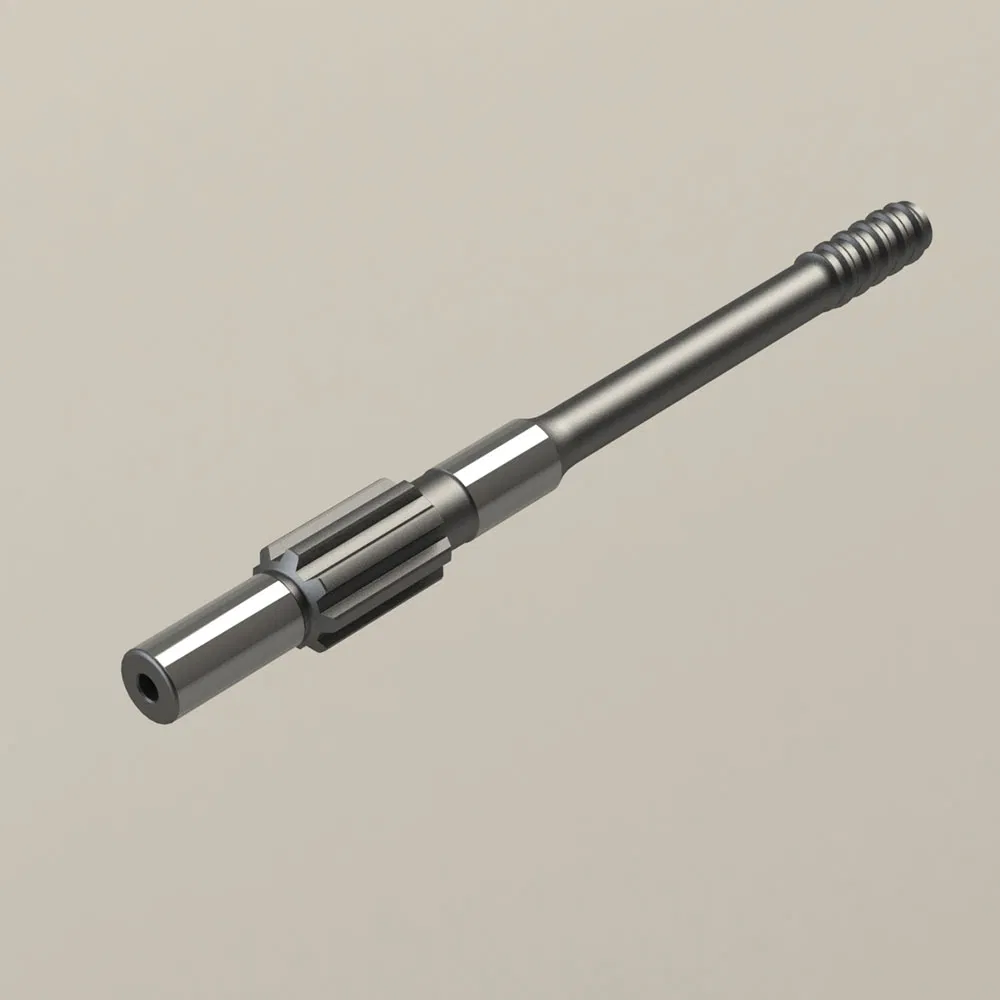

| Model Compatibility | FURUKAWA HD 500 / EVERDIGM ED 100 / SOO SAN ED 100 | ||||
 |
THREAD | OVERALL LENGTH (L) | FRONT END DIAMETER | ||
| Type | mm | In. | mm | In. | |
| T38 / T45 / T51 | 635 | 25.00 | 56 | 2.20 | |

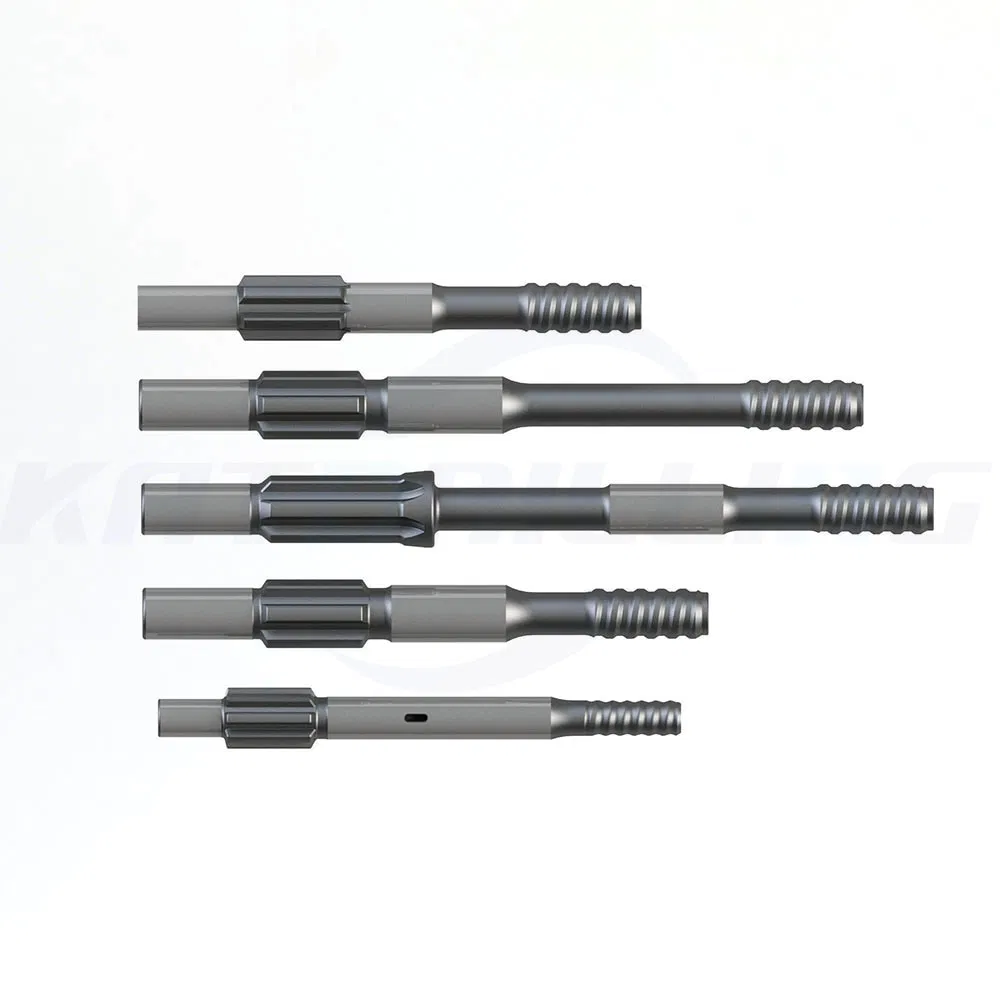

Ingersoll-Rand Drilling Rig Spare Part:

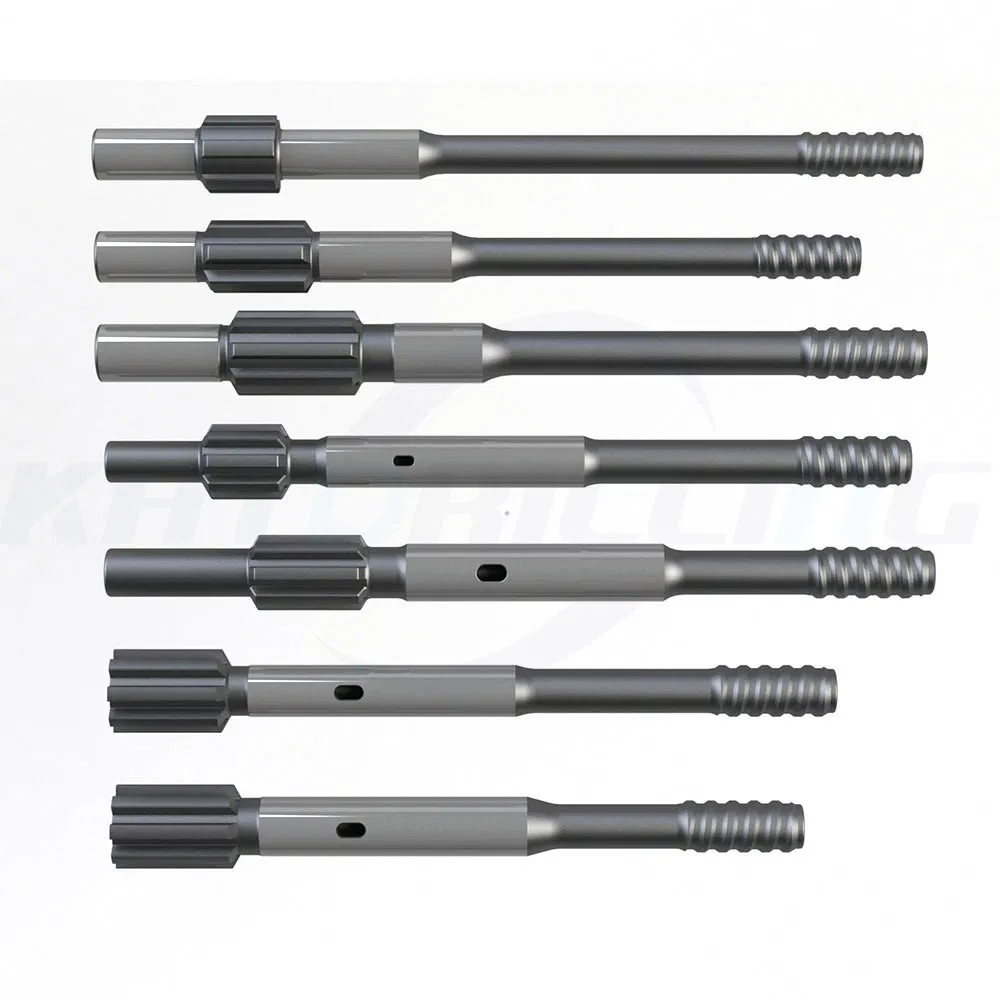

FURUKAWA Drilling Rig Spare Part:

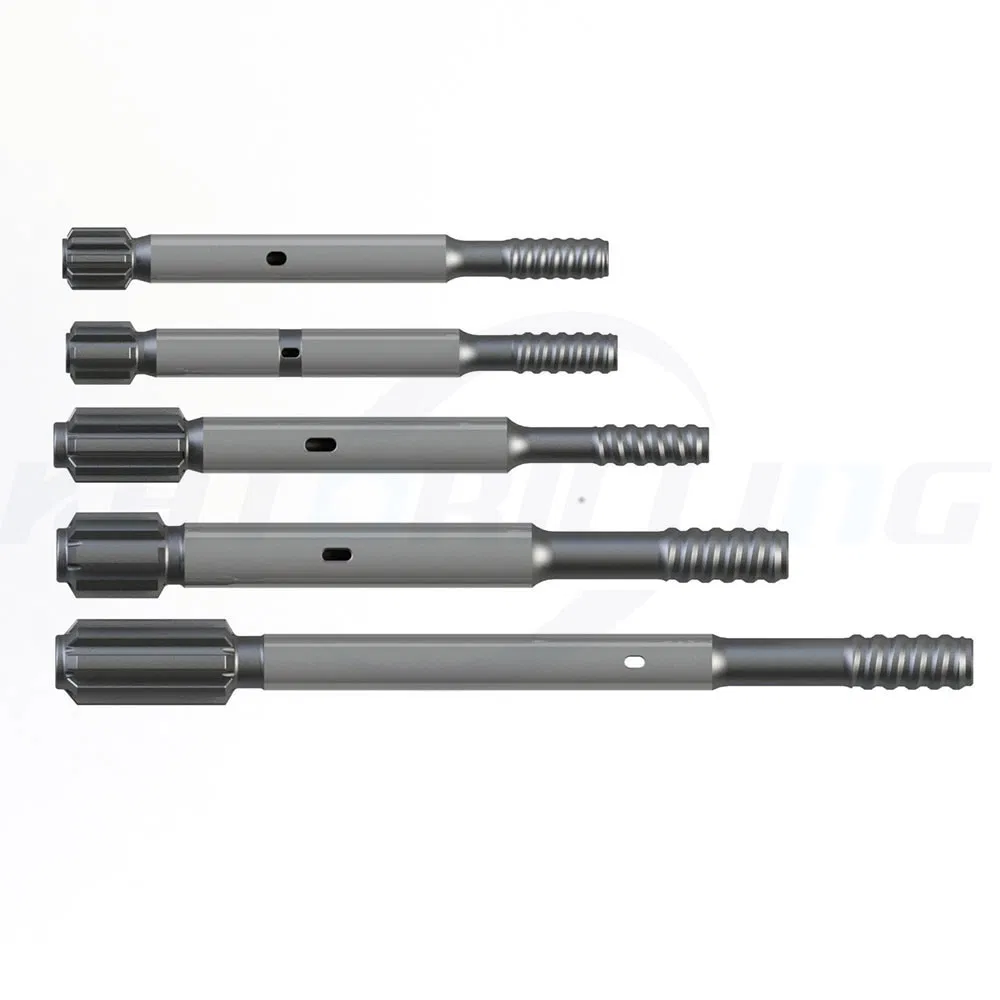

Tamrock Drilling Rig Spare Part:

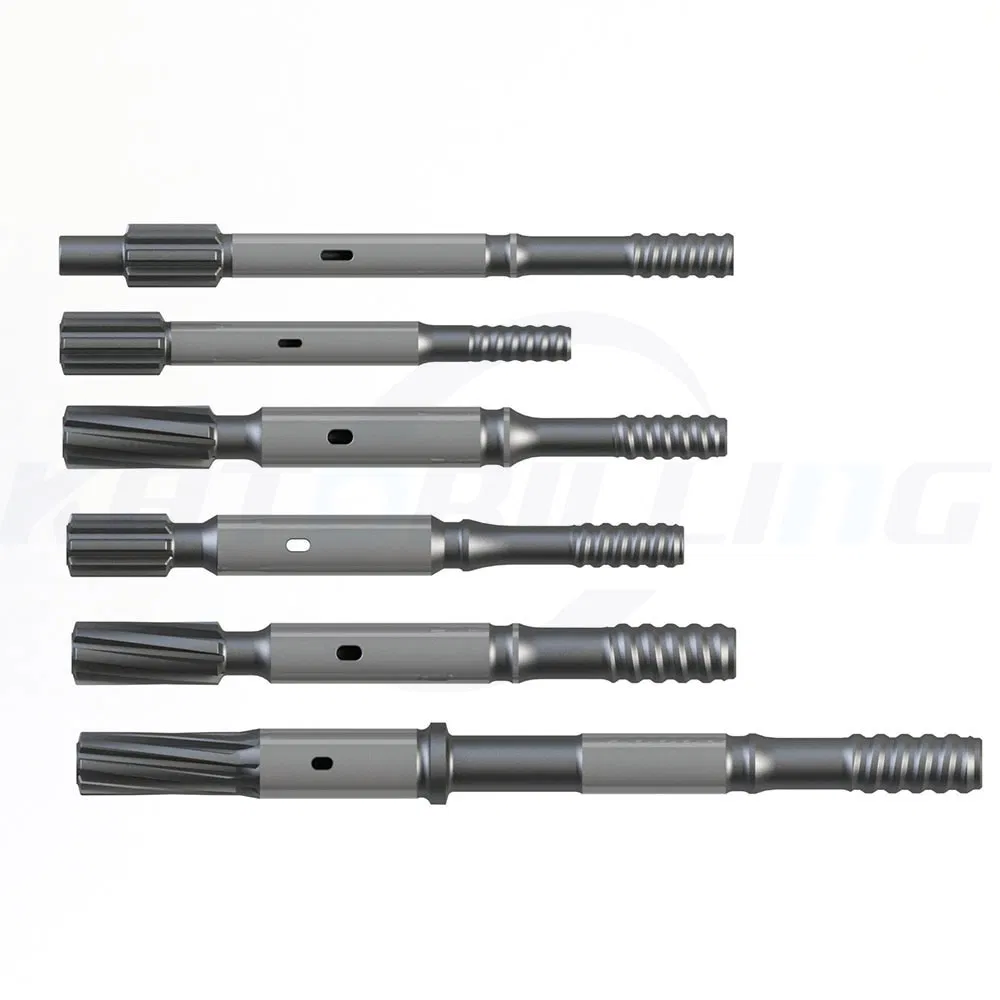

Epiroc Drilling Rig Spare Part:

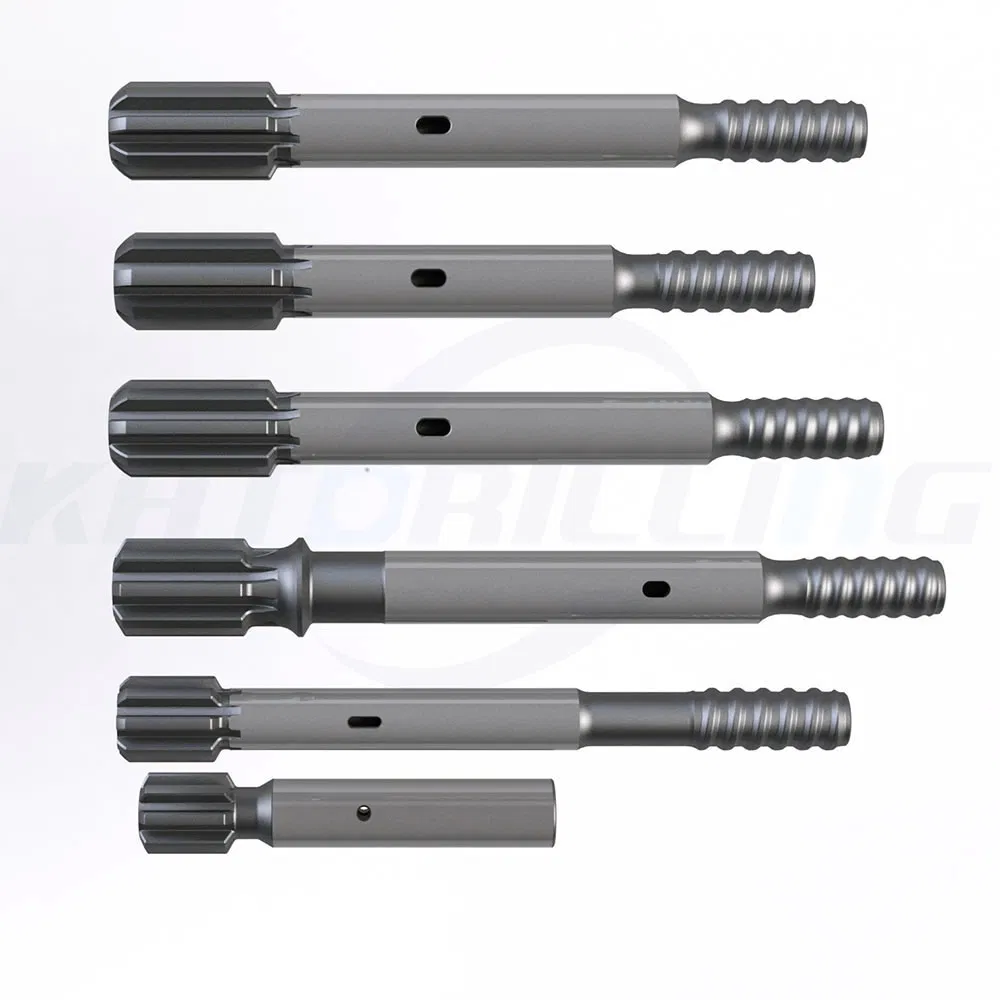

Montabert Drilling Rig Spare Part:
