Model NO.
Integral Drill Steel
Certification
ISO 9001:2000, ISO 9001:2008
Surface Treatment
Spray-Paint
Manufacturing Process
Forging
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Material Quality
95crmo 55simnmo 40simncrnimo 23crni3mo D6a
Production Capacity
500,000 PCS/Month

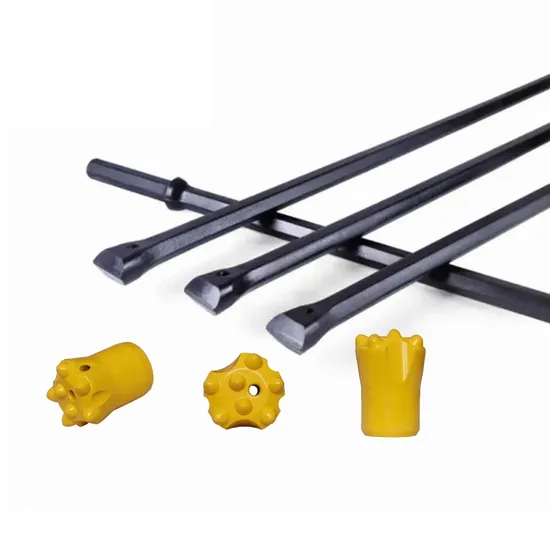

Integral Drill Steel is designed for use by hand-held drill machines in underground mining and small hole drilling. It is ideal for small power rock drills, such as air leg rock drills and hand-held rock drills. It effectively reduces the expense of impact energy while improving drilling speed and efficiency.
Key Specifications:
- Bore Hole Diameter: 24mm to 44mm.
- Steel Grade: 95CrMo (equivalent to Sanbar 20 or C253), 55SiMnMo, Z708.
- Shank Size: Hex 19mm, Hex 22mm (includes Plug Hole Rod).
- Length Range: 0.4m to 10m (Available from 600mm to 9600mm).
- Productivity: 20,000 pcs / month.
Frequently Asked Questions
What are the primary applications for Integral Drill Steel?
Integral Drill Steel is primarily used in underground mining and for small hole drilling projects. It is compatible with hand-held and air leg rock drills.
What range of hole diameters can be drilled?
Our Integral Drill Steels are typically used for drilling bore holes with diameters ranging from 24mm to 44mm.
What materials are used to ensure high performance?
The quality depends on the steel material and tungsten carbide tip. We use high-grade steel such as 95CrMo, 55SiMnMo, and Z708 to ensure durability and speed.
What lengths and shank sizes are available?
Lengths range from 0.4m to 10m. Common shank sizes include Hex 19mm and Hex 22mm.
How is the product packaged for transport?

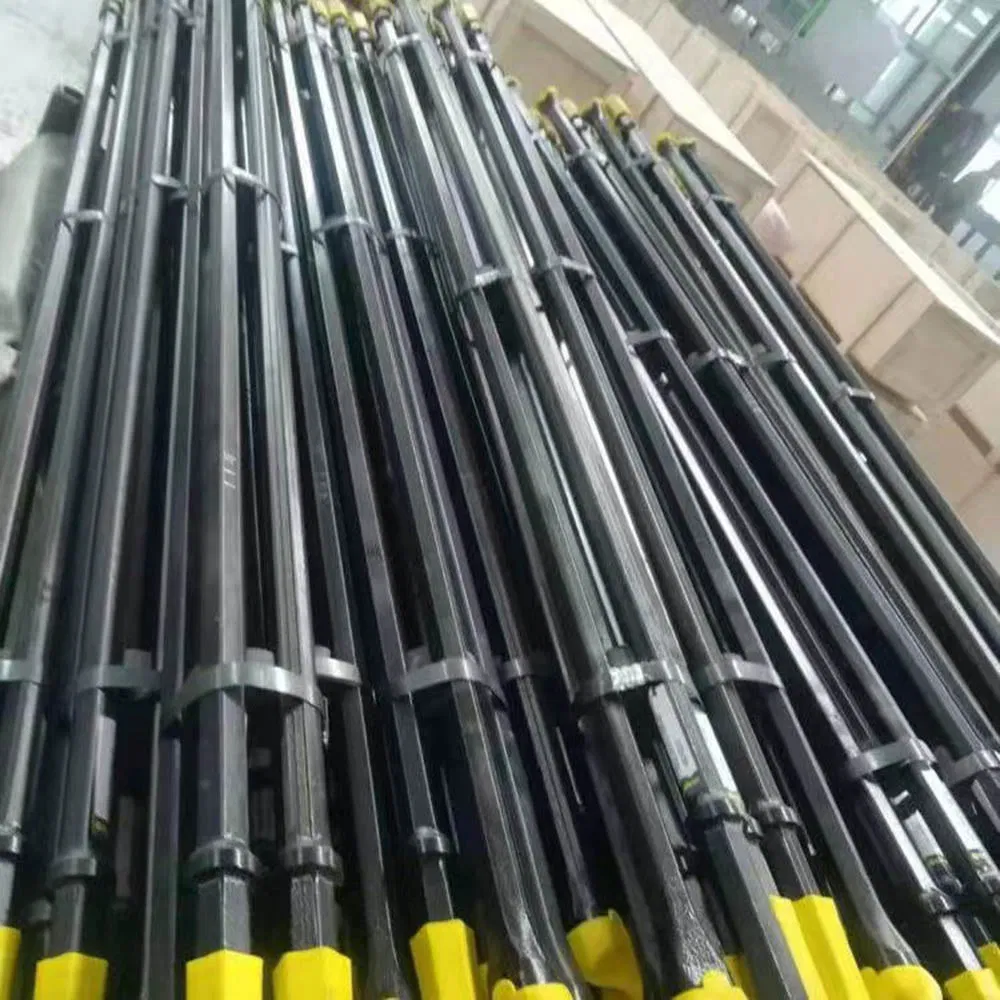

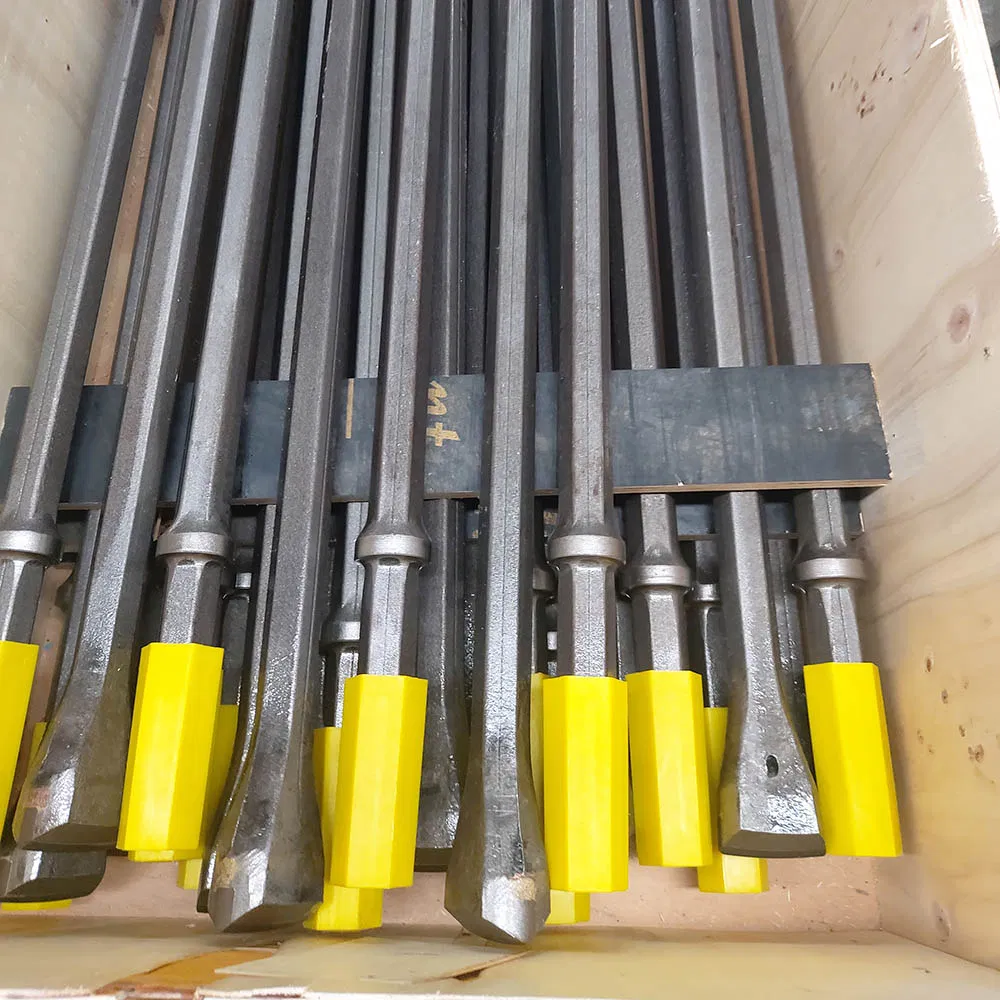

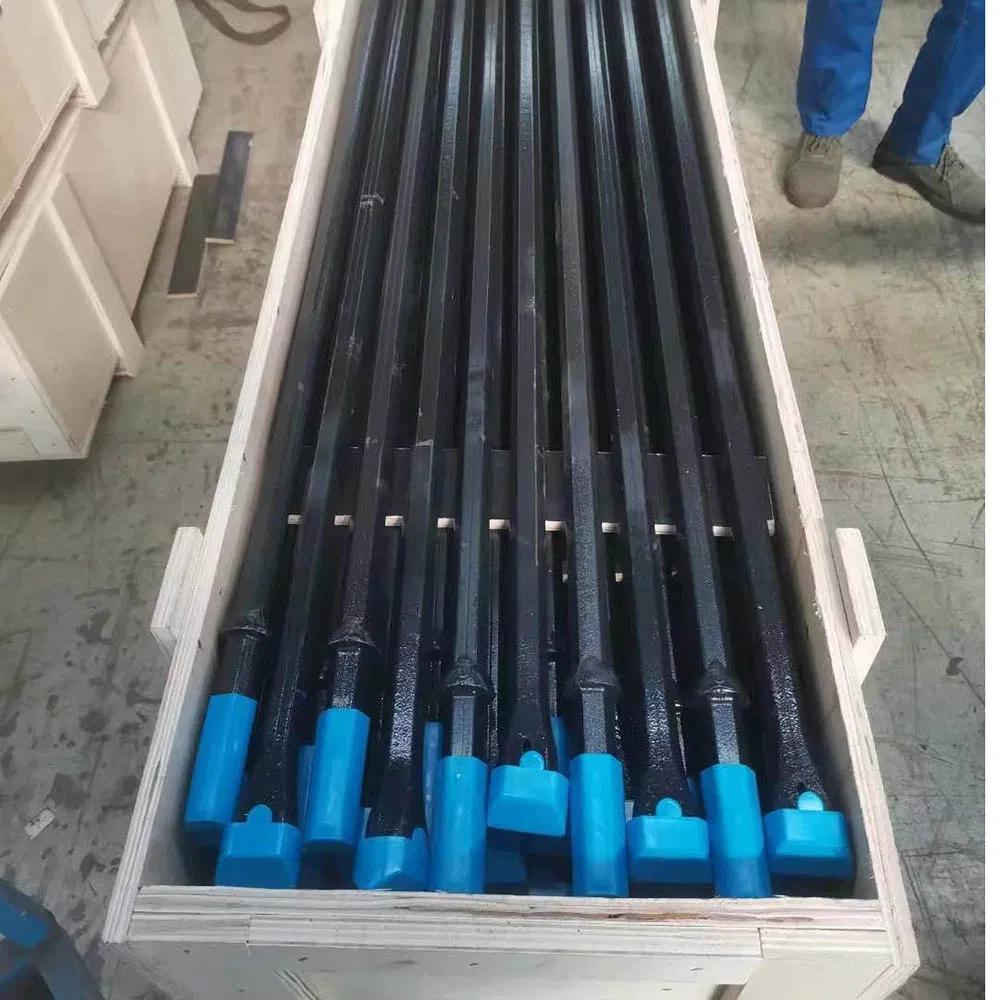

The drill steels are usually packed in wooden cases or bundles to ensure safe delivery during transit.
What is the production capacity for this product?
We have a robust production capacity of approximately 500,000 pieces per month to meet large-scale industrial demands.
