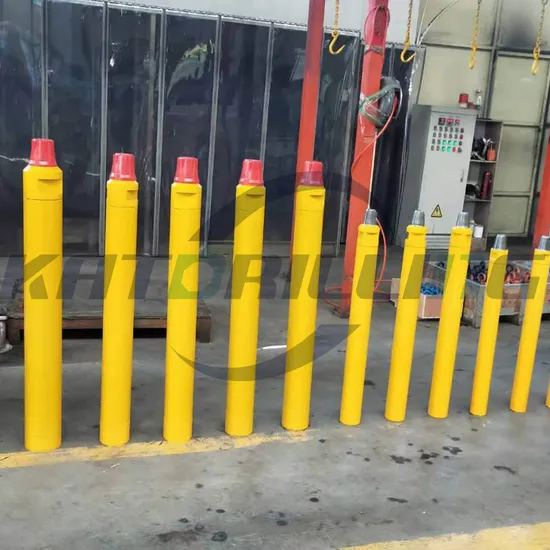

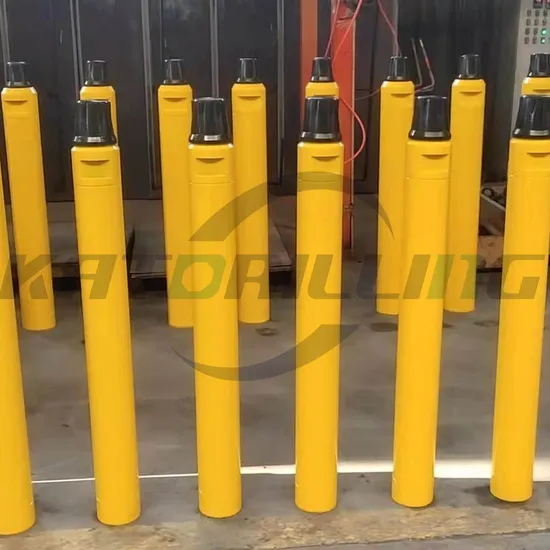

China Ql50A Down The Hole Impactor DTH Hammer for Construction and Mining Factories, Pricelist

Product Details
Customization: Available
After-sales Service: Repair or Replacement
Warranty: 6 Months

Product Description

📋
Basic Information
Model NO.
QL50A DTH Hammer
Certification
CE, ISO 9001:2000, ISO 9001:2008
Standard
AISI, GB
Surface Treatment
Spray-Paint
Material
Carbon Steel
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Outside Diameter
126mm
Weight
68.5kg
Working Pressure
1.0-2.5MPa
🛠️
Product Description

High air pressure DTH hammer is a specialized down-the-hole tool primarily used for percussive drilling in rock formations. Characterized by high air pressure and exceptional efficiency, it is ideal for areas with an abundant air supply. The hammer operates by using compressed air to drive a reciprocating piston, generating impact energy that penetrates the rock through the drill bit.

  • Maximum Energy Transfer: Designed with a special inner structure based on the latest rock drilling theory for fast speed and low air consumption.
  • Superior Materials: Adaption of high-quality alloy steel and advanced processing ensures smooth performance and long service life.
  • Easy Maintenance: Simple and reliable internal structure makes assembly and disassembly straightforward.
  • High Versatility: Multihead thread connecting chuck allows for easy departure of the bit from the hammer.
  • Broad Compatibility: Interchangeable with various DTH bits and drill pipes.
📊
Technical Specifications
Type Model Length (mm) Weight (kg) External Dia. (mm) Hole Range (mm)
3.5 inchDHD3.593025Φ82Φ90-110
4 inchDHD340103039Φ99Φ110-135
SD4108440.5Φ99
QL4109741Φ99
Mission40100540Φ99
5 inchDHD350121476.5Φ125Φ135-155
SD5117572.5Φ125
QL5114773Φ125
Mission50111068.5Φ125
QL50A Specific Parameters:
Feature Specification
Hammer Length without bit1102 mm
Top sub threadAPI 2 3/8" REG PIN
Outside diameter126 mm
Weight68.5 KG
Bit diameter136-155 mm
Working Pressure10-25 Bar
Air consumption7-13 M³/min
Bit shankQL50A
📷

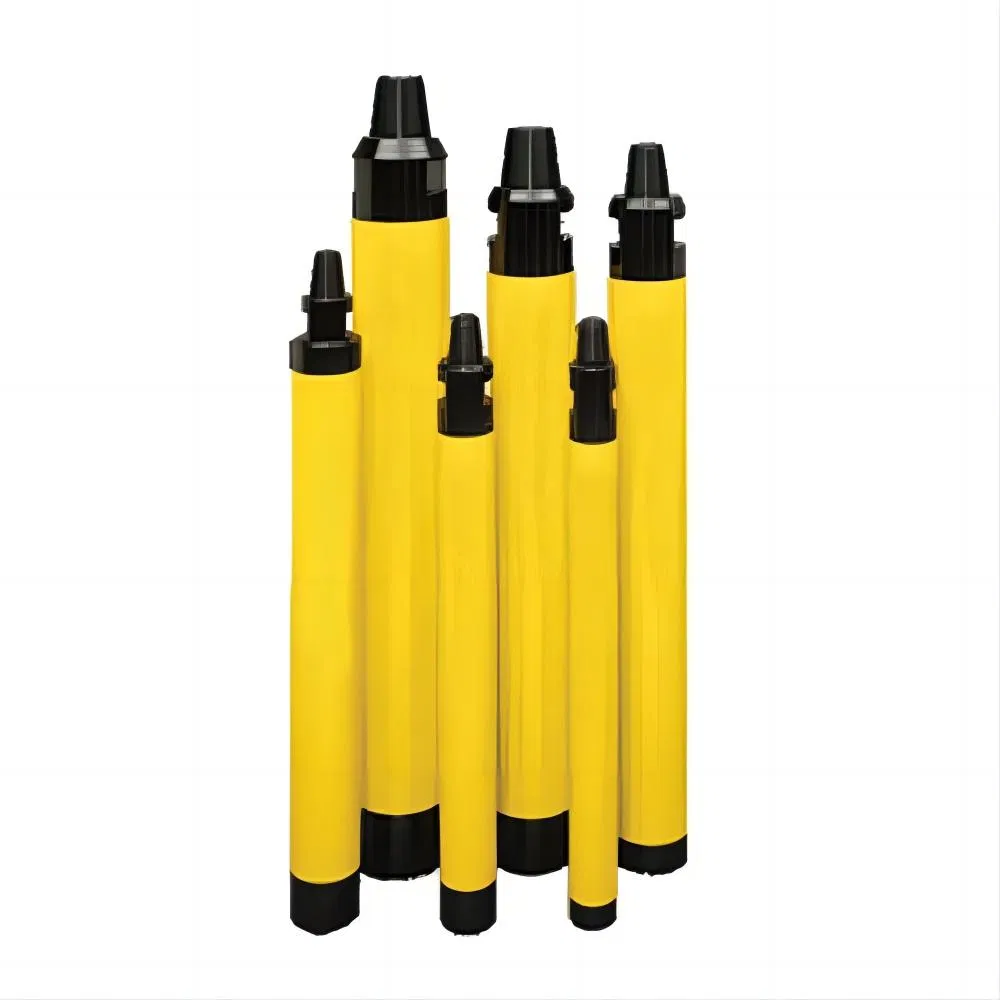

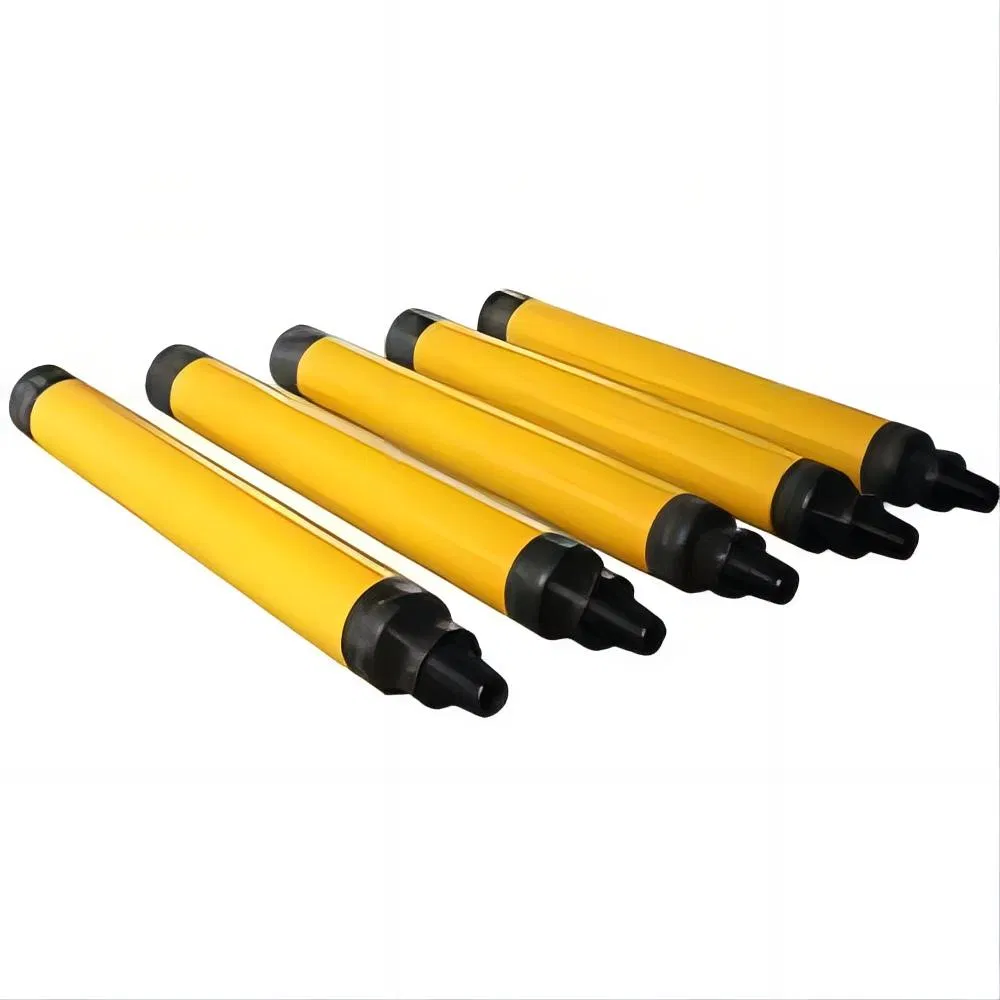

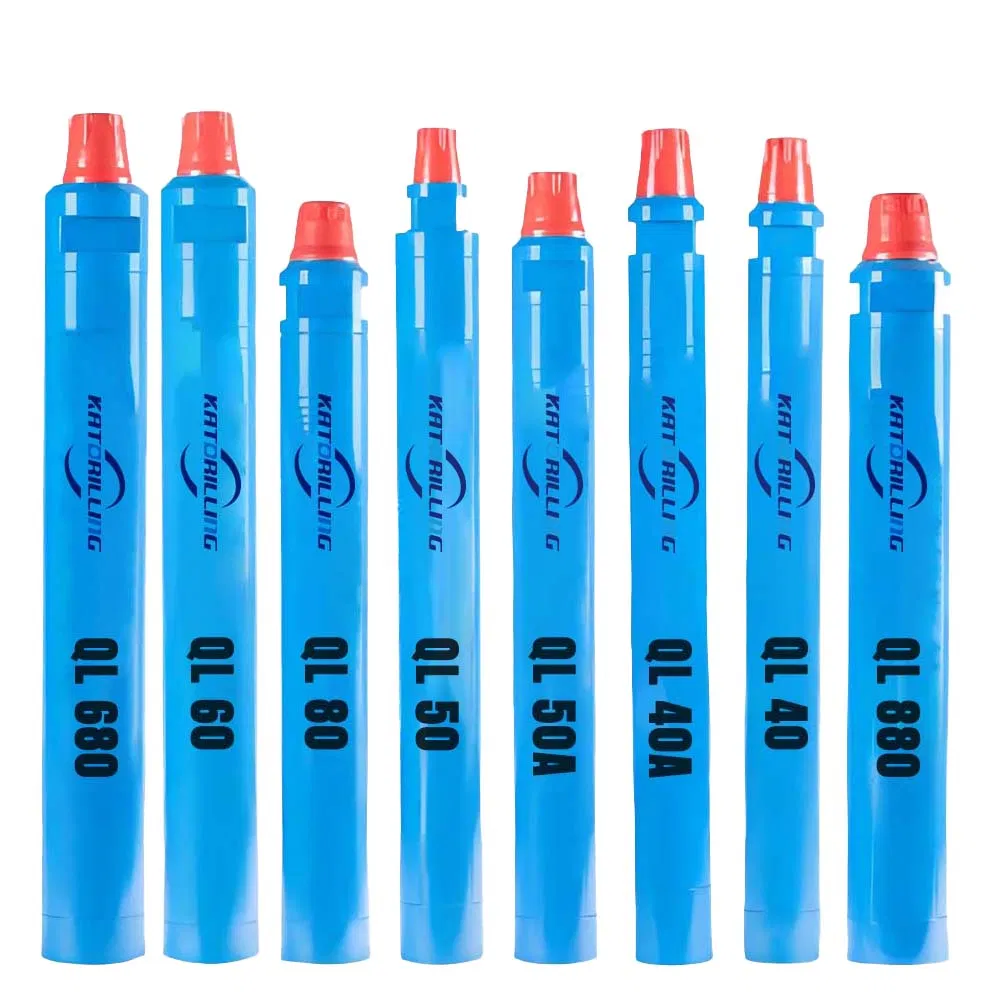

Detailed Photos

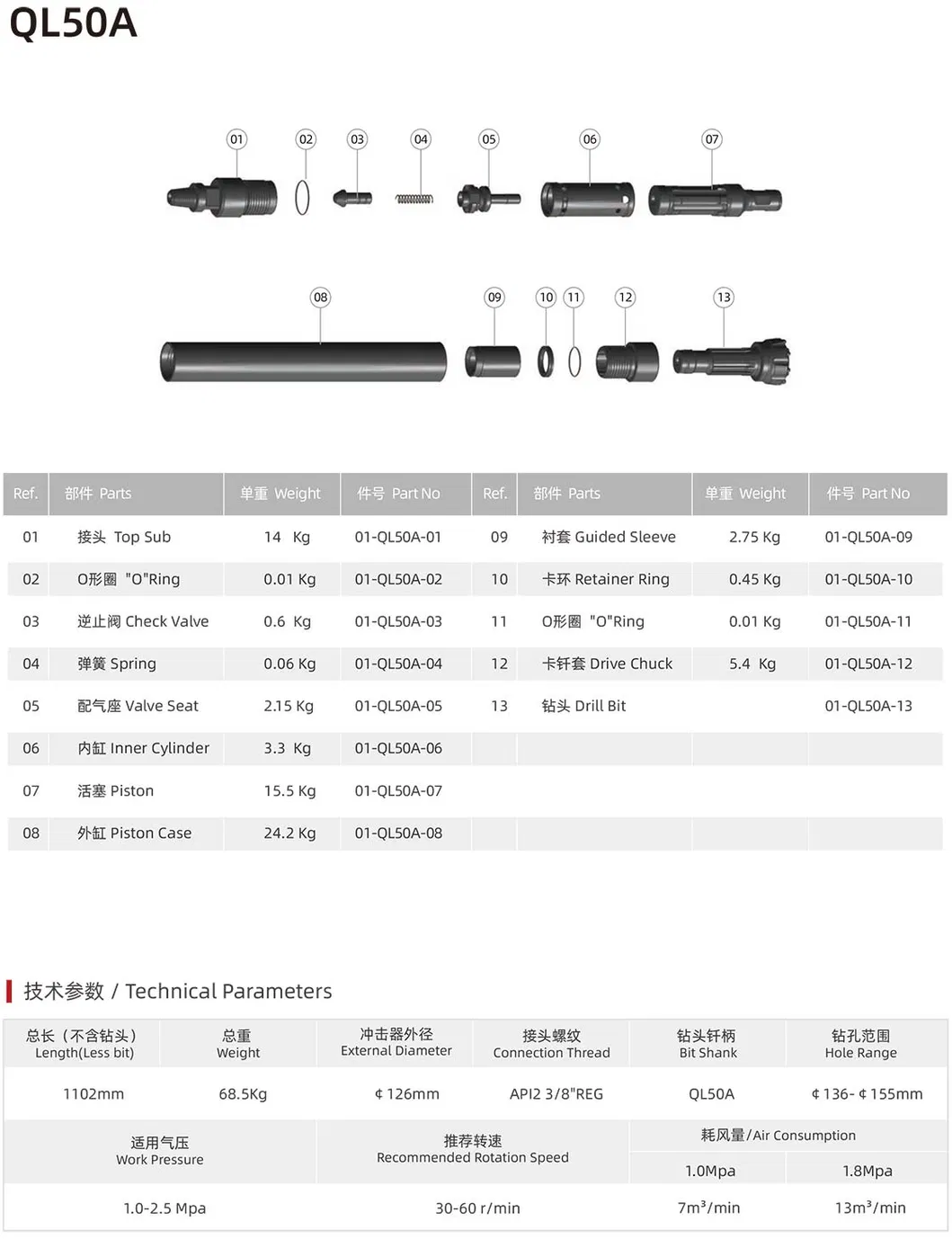

DTH Hammer Product Display

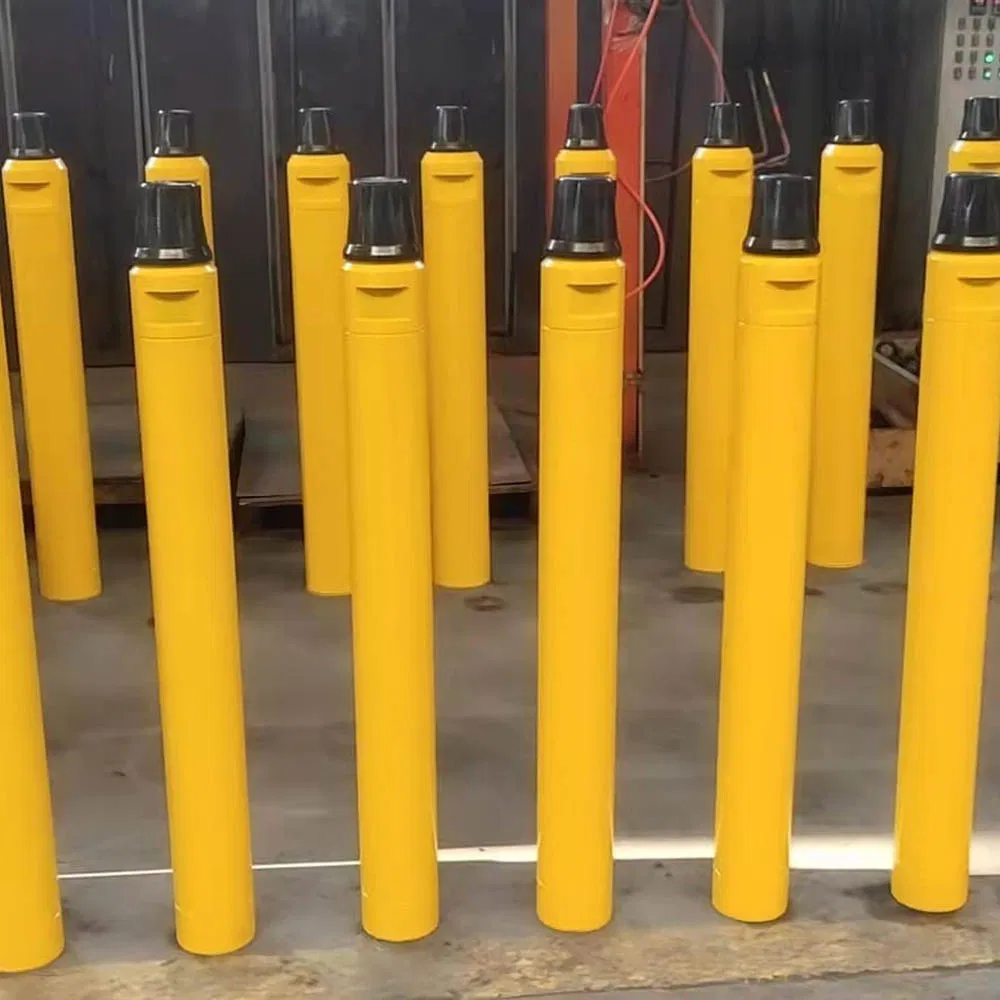

Internal Structure

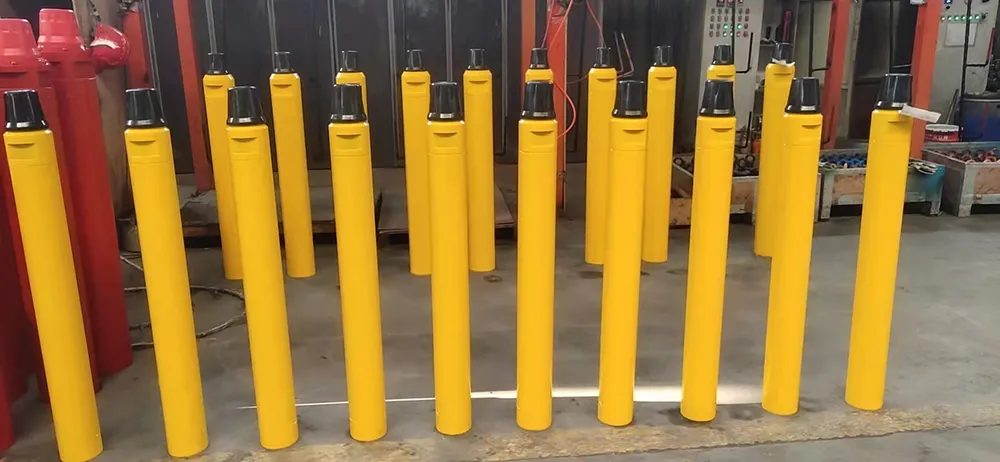

Drilling Component
📦
Packaging & Shipping

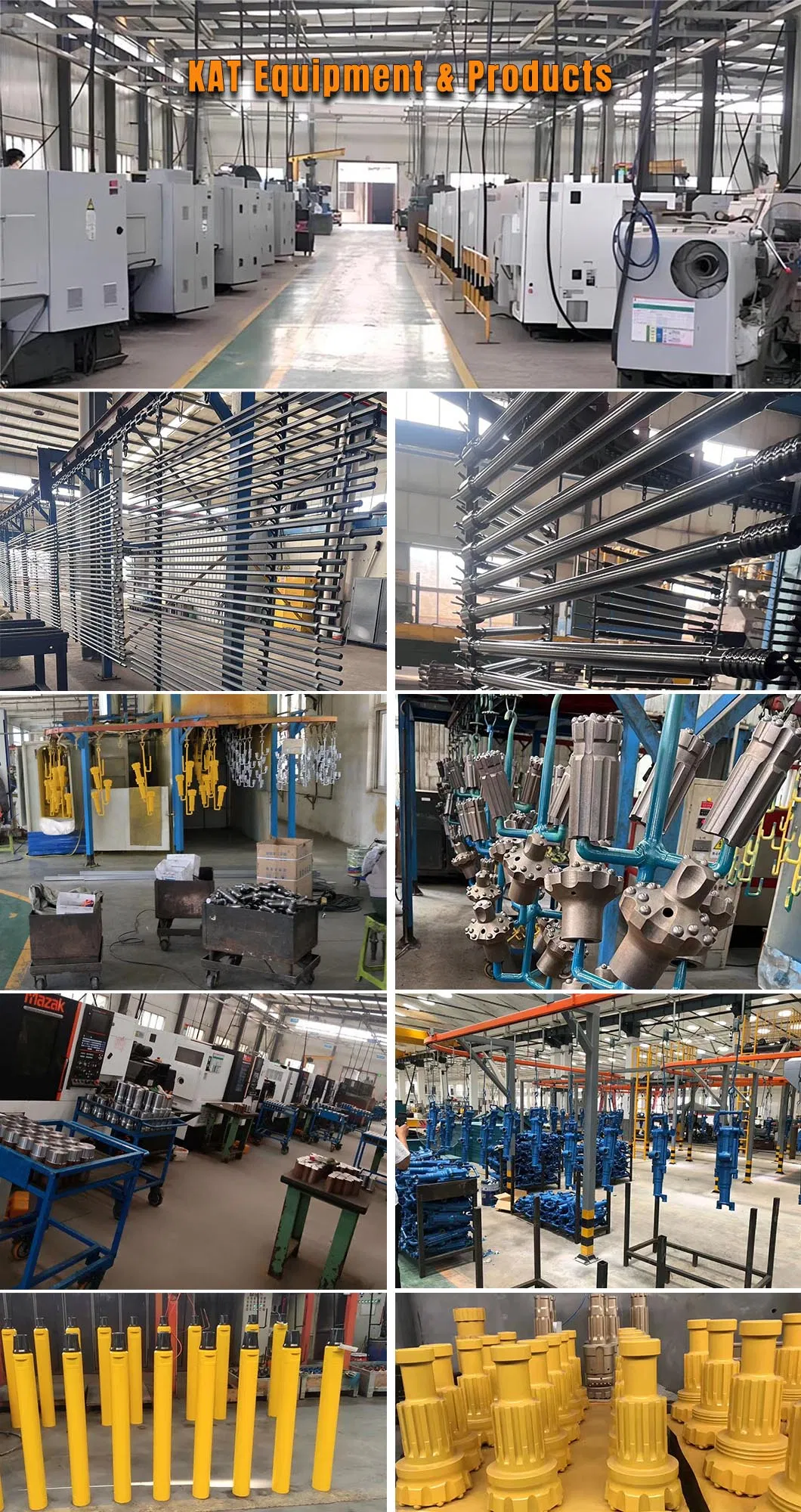

Production Line
Export Packaging

Orders are typically processed with a 25-day production lead time. For standard stock sizes, delivery can be as fast as 2-3 days. Sample orders are recommended via courier (DHL/UPS/TNT/FEDEX), while bulk orders are efficiently handled via air or sea freight.

Frequently Asked Questions
What are the main applications for the QL50A DTH Hammer?
It is widely used in mining, quarrying, water well drilling, bench drilling, and various civil engineering applications.
What is the typical working pressure for this hammer?
The QL50A operates efficiently within a working pressure range of 1.0 to 2.5 MPa (10-25 Bar).
How long does it take to deliver an order?
Normally, production takes about 25 days based on quantity. If the requested size is in stock, it can be shipped within 2 to 3 days.
Which payment methods do you accept?
We accept T/T (Telegraphic Transfer), Western Union, and L/C at sight.
How do you ensure the quality of the DTH hammers?
Every order undergoes strict inspection and testing by our experienced QC team before shipping. Technical support is also available at any time.
Is the hammer compatible with other drill bits?
Yes, the QL50A DTH hammer is designed to be interchangeable with various DTH bits and standard drill pipes.
