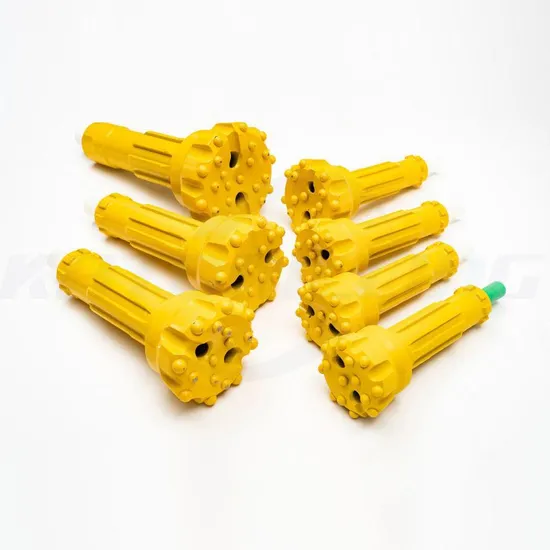

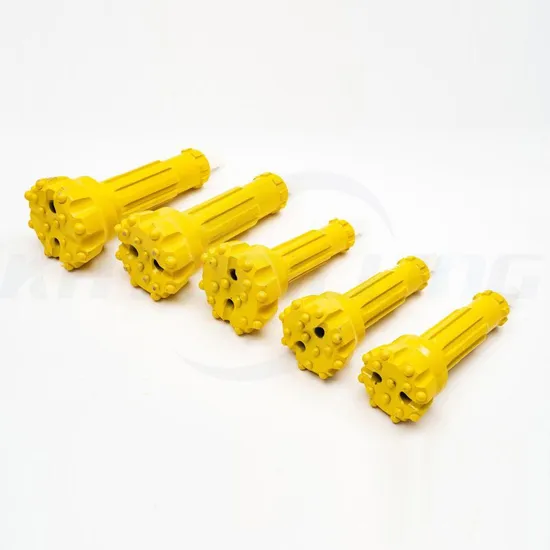

China Ql60 Series DTH Drill Bit for Mining and Water Well Drilling Manufacturers, Quotes

1 / 5

China Ql60 Series DTH Drill Bit for Mining and Water Well Drilling Manufacturers, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

QL60 DTH Drill bit

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Material

Carbon Steel

Machine Type

Drilling Tools

Diameter

152-244mm

Production Capacity

500,000 PCS/Month

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

✔ Maximum Energy Delivery

Fast drilling speed and low air consumption due to the special inner structure designed according to rock drilling theory.

✔ Long Service Life

Smooth performance guaranteed by high-quality alloy steel materials and advanced processing technology.

✔ Easy Maintenance

Simple and reliable inner structure makes assembly and disassembly easy, reducing downtime.

Applications & Capabilities

★ Water well drilling

★ Bench drilling

★ Mining / Mineral Exploration

★ Civil Engineering

★ Oil well drilling

★ High pressure rigs

Available DTH Bit Series

3″ DTH Bits: DHD3.5, M30
4″ DTH Bits: DHD340, SD4, QL40, M40
5″ DTH Bits: DHD350, SD5, QL50, M50
6″ DTH Bits: DHD360, SD6, QL60, M60
8″ DTH Bits: DHD380, SD8, QL80, M80
Low air pressure DTH Bits: CIR80, CIR90

Technical Specifications - QL60 Shank

Type	Gauge Buttons		Front Buttons		Dimensions		Weight (Kg)
Type	No.	mm	No.	mm	mm	inch	Weight (Kg)
QL60	8	16	8	16	152	6"	23.9
QL60	8	16	10	16	165	6 1/2"	25.2
QL60	10	19	14	16	190	7 1/2"	26.5
QL60	10	19	14	16	203	8"	31.8
QL60	12	19	23	16	244	9 5/8"	51

Frequently Asked Questions

What are the main advantages of the QL60 DTH Drill Bit?

The QL60 series offers fast drilling speeds, low air consumption, and a powerful penetration rate. Its special inner structure is designed based on the latest rock drilling theories to maximize energy delivery to the bit.

What applications are these drill bits suitable for?

They are ideal for water well drilling, mining, mineral exploration, bench drilling, oil well drilling, and various civil engineering applications.

How is the maintenance of the DTH hammer and bit?

Maintenance is very simple. The inner structure is reliable and designed for easy assembly and disassembly, which significantly reduces the problem rate.

What materials are used in the manufacturing process?

The bits are manufactured using high-quality alloy steel and carbon steel, utilizing advanced stamping and surface treatment (spray-paint) processes for long-term durability.

Can these bits be used with different drilling rigs?

Yes, they are compatible with high-pressure drilling rigs and are interchangeable with standard DTH bits and drill pipes.

What is the diameter range for this series?

The diameter typically ranges from 152mm to 244mm, with overall size capabilities from 90mm up to 605mm depending on the specific model.
