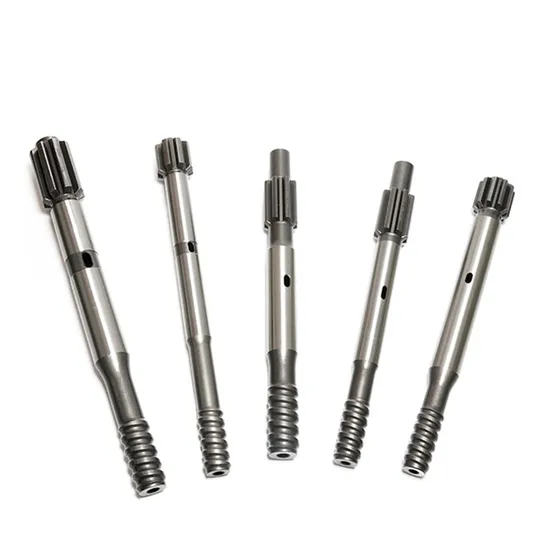

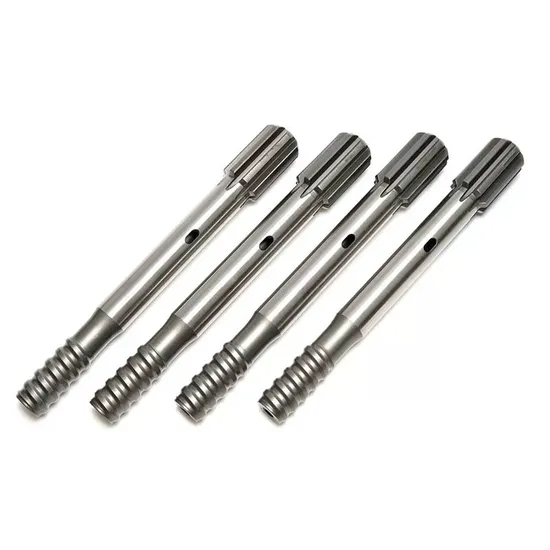

The manufacturer produces shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy, and flushing medium to the drill string (extension drill rods, drifting drill steels).
Male shank adapters are generally better suited for drifting, tunneling, and extension applications where high bending stresses are present. Female shank adapters are used when the drilling space is limited and the total feed length is important, for example, underground roof bolting.
Shank adapters are designed to withstand the high impact power of modern rock drills and are made from specially selected material which is hardened through carburizing. Around 300 different shank adapters suitable for different rock drills are currently available.
| HL 650-45, 700-45, 700 T-45, 710-45, 800 T-45, 810 T-45 | |||||
|---|---|---|---|---|---|
| Visual | Thread | Overall Length (L) | Front End Diameter | ||
| - | - | mm | In. | mm | In. |
 |
T38 | 600 | 23.62 | 45 | 1.75 |
| T45 | 600 | 23.62 | 45 | 1.75 | |
| HL 650-52, 700-52, 700 PE-52, 710-52, 800 T-52, 810 T-52, HF 810 T-52 | |||||
|---|---|---|---|---|---|
| Visual | Thread | Overall Length (L) | Front End Diameter | ||
| - | - | mm | In. | mm | In. |
 |
T38 | 600 | 23.62 | 52 | 2.05 |
| T45 | 600 | 23.62 | 52 | 2.05 | |
| XT45 * | 600 | 23.62 | 52 | 2.05 | |
| T51 | 600 | 23.62 | 52 | 2.05 | |
| XT51 * | 600 | 23.62 | 52 | 2.05 | |
