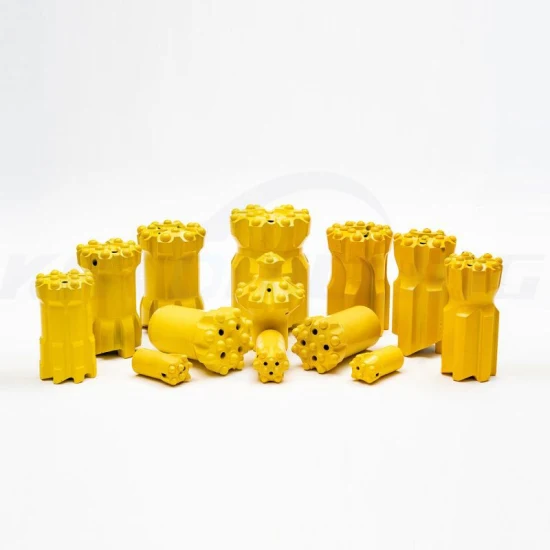

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide a comprehensive range featuring 9 main threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These tools are optimized for use with button bits, cross bits, and reaming products.
Our range covers everything from 1" rope thread equipment up to T60 thread equipment. Designed to improve productivity significantly, these drill rods, tubes, and button bits are recognized for their high performance in demanding environments.
| Type | Gauge Carbide | Front Carbide | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side | |
| Standard | 8 | 10 | 4 | 10 | 64 | 2 1/2" | 2 | 0 |
| Standard | 8 | 11 | 6 | 11 | 76 | 3" | 2 | 0 |
| Standard | 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| Drop Center | 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
| Drop Center | 6 | 11 | 3/1 | 11/9.5 | 70 | 2 3/4" | 3 | 0 |
| Bit Type | Gauge Carbide | Front Carbide | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side | |
| T38 Bit | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| T38 Bit | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| T38 Bit | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
