Frequently Asked Questions
1. What is the primary function of these shank adapters?
Shank adapters are used to transmit power from the rock drill to the drill string. They are designed to withstand the high impact energy and rotation required for modern hydraulic and pneumatic drilling rigs.
2. Which drill models are compatible with the HD 260 adapter?
This specific adapter is fully compatible with Furukawa HD260, Epiroc BBE series (56U2, 57, 5701), Ingersoll-Rand YH 60, Montabert H 100, and Tokyo Riuki HD 260.
3. What thread options are available for the Furukawa HD 260?
The standard thread options available for the Furukawa HD 260 shank adapter include T38 and T45 to suit different drilling requirements.
4. How do I ensure I choose the correct length?

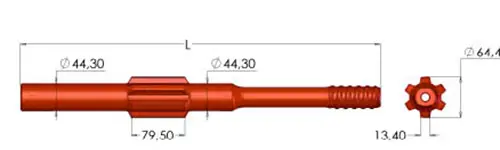

The length depends on the specific rig setup. We offer the T38 at 537mm (21.14 inches) and the T45 at 550mm (21.65 inches) to ensure a perfect fit for your equipment.
5. Is the front-end diameter consistent across different threads?
Yes, for both T38 and T45 thread types on the HD 260 model, the front-end diameter is maintained at 44mm (1.73 inches).
6. Can this adapter be used for both surface and underground drilling?
Yes, these shank adapters are designed for heavy-duty applications and are suitable for both surface and underground mining and construction environments.
