Frequently Asked Questions
1. What is the main application of this shank adapter?
This shank adapter is specifically designed for the FURUKAWA HD615 hydraulic drifter, used to transmit torque, feed force, and impact energy from the rock drill to the drill string.
2. Which thread types are supported for the HD615 model?
Currently, the standard shank adapter for the FURUKAWA HD615 supports the T51 thread type, suitable for heavy-duty drilling operations.
3. What are the available lengths for this adapter?
We offer two standard lengths: 700mm (approximately 27.56 inches) and 880mm (approximately 34.65 inches) to suit different drilling rig configurations.
4. How is the durability of the FURUKAWA HD615 shank adapter ensured?
The adapters are manufactured using high-strength alloy steel and undergo precision heat treatment to ensure excellent fatigue strength and wear resistance in tough rock conditions.
5. Can this adapter be used for underground or surface drilling?
Yes, it is designed to perform efficiently in both surface bench drilling and underground mining applications where the FURUKAWA HD615 rig is deployed.

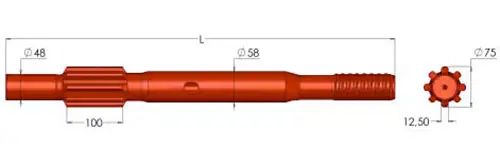

6. What is the front-end diameter for the T51 version?
The front-end diameter is standard at 58mm (2.28 inches), ensuring a precise fit and optimal energy transfer during operation.
