China Shank adapter for FURUKAWA PD200,HD200,MD120 etc. Factories, Pricelist

Shank adapter for FURUKAWA PD200,HD200,MD120 ;GARDNER DENVER PR 123,BOART SECAN S 36 IR;INGERSOLL-RAND URD 475 A, 550, VL 120, VL 140, F16;SANDVIK TAM 750;TOKYO RIUKI HD 200, H 120 / TOYO PR 220

Send Inquiry

Product Description

Compatible Models & Brands

Shank adapter for FURUKAWA PD200, HD200, MD120
GARDNER DENVER PR 123
BOART SECAN S 36 IR
INGERSOLL-RAND URD 475 A, 550, VL 120, VL 140, F16
SANDVIK TAM 750
TOKYO RIUKI HD 200, H 120 / TOYO PR 220

Technical Specifications

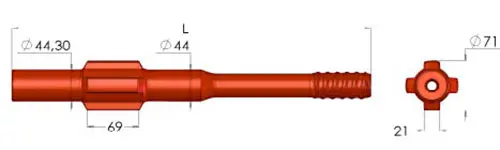

THREAD	OVERALL LENGTH (L)		FRONT END DIA.		Product No.
THREAD	mm	In.	mm	In.	Product No.
R32	380	14.96	44	1.73	-
R38	380	14.96	44	1.73	-
T38	380	14.96	44	1.73	7304-7543-60
T45	380	14.96	44	1.73	-
R32	446	17.56	44	1.73	-
R38	446	17.56	44	1.73	-
T38	446	17.56	44	1.73	7304-7500-60
T45	446	17.56	44	1.73	-
T38	484	19.06	44	1.73	-
T45	484	19.06	44	1.73	90516025

Frequently Asked Questions

Which rock drill brands are these shank adapters compatible with?

These shank adapters are compatible with leading brands including Furukawa, Gardner Denver, Ingersoll-Rand, Sandvik, Tokyo Riuki, and Toyo.

What thread types are available for the Furukawa PD200 series?

We provide a comprehensive range of thread types including R32, R38, T38, and T45 to suit various drilling requirements.

What are the available overall lengths for these adapters?

The adapters come in multiple standard lengths: 380mm (14.96"), 446mm (17.56"), and 484mm (19.06").

Is the front end diameter consistent across different thread types?

Yes, based on the technical specifications for these models, the front end diameter is consistently maintained at 44mm (1.73") for optimal performance.

How do I identify the correct product number for a T38 thread?

For a T38 thread with a 380mm length, the product number is 7304-7543-60. For the 446mm version, the product number is 7304-7500-60.

Are these adapters suitable for heavy-duty drilling applications?

Absolutely. These shank adapters are specifically designed for high-performance rock drills like the Furukawa HD200 and Ingersoll-Rand VL140, ensuring durability and efficient energy transfer.
