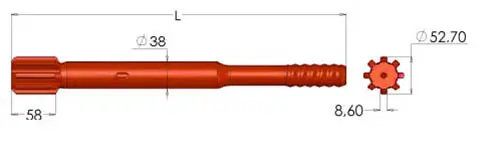

Shank adapter for MONTABERT HC40 HC50 drill rig
⚙️
Product Specification Notice: High-quality male shank adapters specifically engineered for MONTABERT HC 40 and HC 50 series rock drills, ensuring optimal energy transmission and durability.
| MONTABERT - HC 40, 50 (MALE) Technical Parameters |
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIA. |
Product No. |
Alternative Ref. |
| mm |
In. |
mm |
In. |
| R32 |
372 |
14.65 |
38 |
1.5 |
90515895 |
- |
| R38 |
372 |
14.65 |
38 |
1.5 |
90515966 |
- |
| T35 |
372 |
14.65 |
38 |
- |
90003694 |
- |
| T38 |
372 |
14.65 |
38 |
1.5 |
90515989 |
- |
| R32 |
447 |
17.6 |
38 |
1.5 |
7803-4725-01 |
- |
| R38 |
447 |
17.6 |
38 |
1.5 |
7804-4725-01 |
- |
| T38 |
447 |
17.6 |
38 |
1.5 |
7304-4725-01 |
- |
❓ Frequently Asked Questions
Q1: Which drill rig models are these shank adapters compatible with?
These shank adapters are specifically designed for MONTABERT HC40 and HC50 hydraulic drifters.
Q2: What thread types are available for the HC40/HC50 series?
We offer multiple thread options including R32, R38, T35, and T38 to suit different drilling requirements.
Q3: What are the standard length options for these adapters?
The standard overall lengths (L) available are 372mm (14.65 inches) and 447mm (17.6 inches).
Q4: What is the front end diameter of the MONTABERT HC series shank adapter?
The standard front end diameter for these models is 38mm (approximately 1.5 inches).
Q5: Are these male or female shank adapters?
These specific adapters for HC40 and HC50 drill rigs are designed as Male thread configurations.
Q6: How can I identify the correct part for my rig?
You can match your requirements using the Product Number (e.g., 90515895 or 7803-4725-01) provided in our technical specification table.
