High-performance shank adapters specifically designed for compatibility with HL1000, 1000S, 1010, and 1010S rock drill series. These components ensure optimal power transmission from the rock drill to the drill string.
| Compatible Models | Thread Type | Overall Length (L) | Front End Diameter | Product No. | ||
|---|---|---|---|---|---|---|
| mm | In. | mm | In. | |||

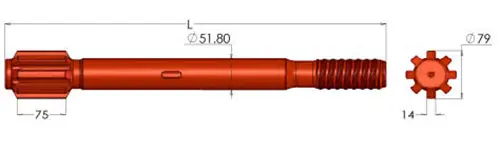

| HL 1000-52, 1000 S 52, 1010-52, 1010 S-52 | T45 | 590 | 23.23 | 52 | 2.05 | 7305-6008-01 |
| T51 | 590 | 23.23 | 52 | 2.05 | 90516036 | |
| T45 | 670 | 26.38 | 52 | 2.05 | - | |
| T51 | 670 | 26.38 | 52 | 2.05 | 7306-6010-02 | |
| Compatible Models | Thread Type | Overall Length (L) | Front End Diameter | Product No. | ||
|---|---|---|---|---|---|---|
| mm | In. | mm | In. | |||

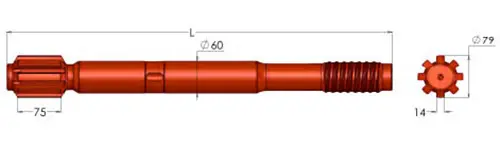

| HL 1000-60, 1010-60 | T51 | 670 | 26.38 | 60 | 2.36 | 7306-6014-02 / 90029026 |
| ST58 | 670 | 26.38 | 60 | 2.36 | - | |
| GT60 | 670 | 26.38 | 60 | 2.36 | 7600-6014-02 / 90029249 | |
A: These adapters are specifically engineered for HL1000, HL1000S, HL1010, and HL1010S rock drill rigs, ensuring a perfect fit and high durability.
A: For the 52mm front-end diameter series, we provide T45 and T51 thread options in lengths of 590mm and 670mm.
A: Yes, the HL 1000-60 and 1010-60 models support GT60 threads with an overall length of 670mm and a front-end diameter of 60mm.
A: Based on the technical specifications, the standard lengths available are 590mm (23.23 inches) and 670mm (26.38 inches) depending on the specific model requirements.
A: You can match your required thread type and length with our specification tables. For example, a T51 thread for the HL 1000-52 (590mm length) corresponds to product number 90516036.
A: The diameter reflects the compatibility with different drill rig configurations. The 52mm version typically uses T45/T51 threads, while the 60mm version accommodates larger T51, ST58, and GT60 threads for heavier drilling tasks.
