Our comprehensive range of bench and production drilling tools include rods, shank adapters, couplings, and bits. We support 9 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These tools are engineered for seamless compatibility with button bits, cross bits, and reaming products.
Our product range spans from 1" rope thread equipment up to T60 thread systems, designed to significantly enhance your operational productivity in rock drilling environments.

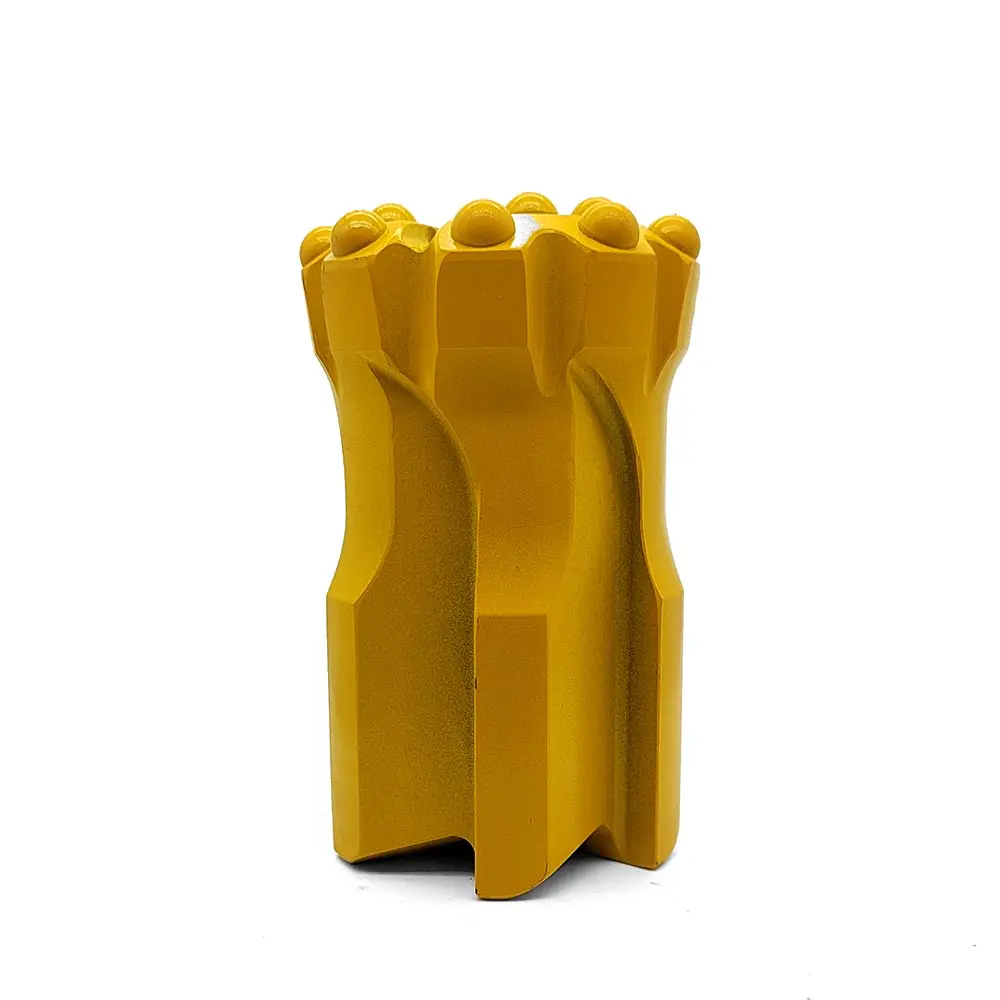

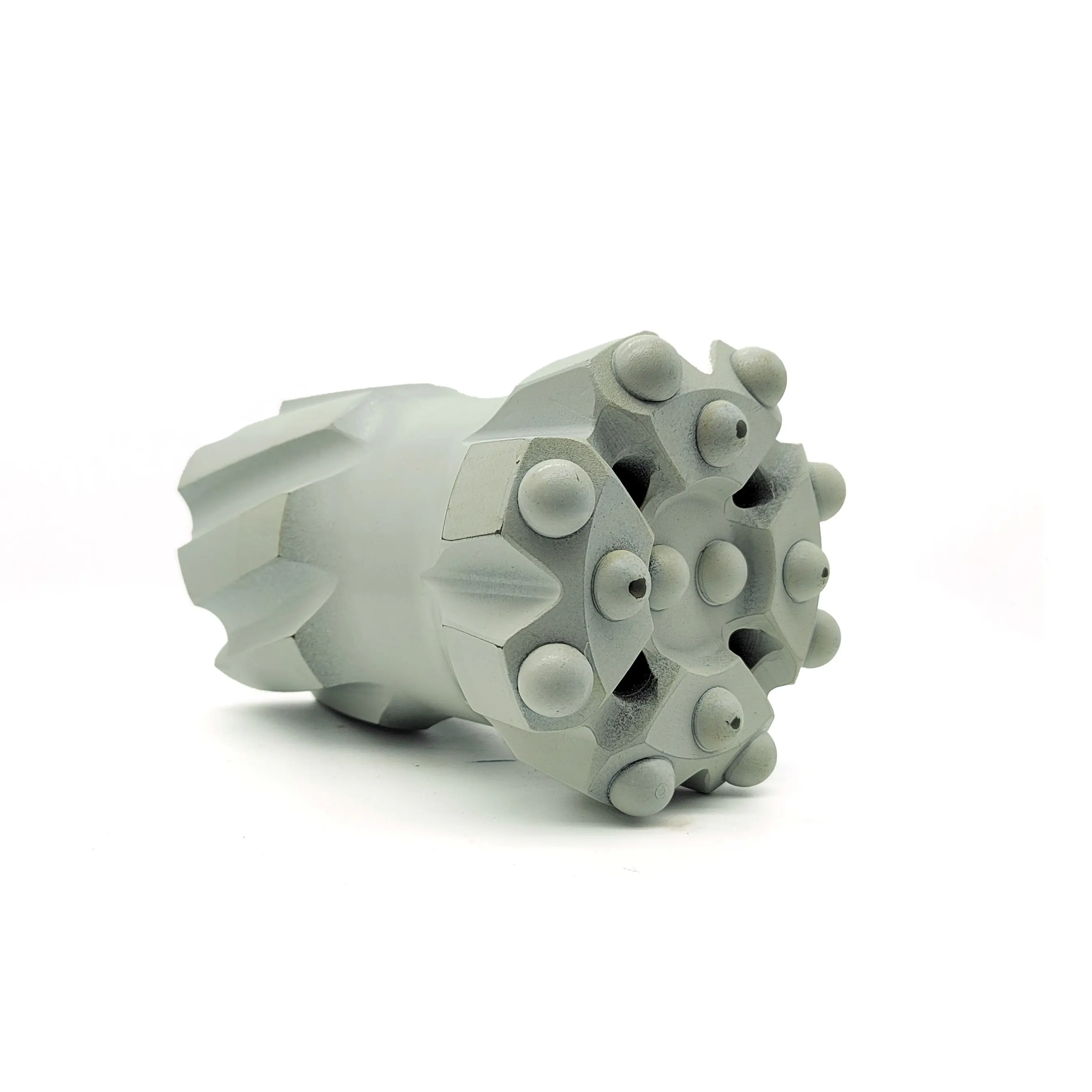

| Button Bit | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Visual Reference | Gauge | Front | [mm] | [in] | Front | Side | ||
 |
6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
 |
8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
 |
8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| Drop Center Models | ||||||||
 |
6 | 12.7 | 3/2 | 11/9.5 | 80 | 3 1/8" | 3 | 0 |
| Retrac / Flat Face Models | ||||||||
 |
6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
 |
8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
