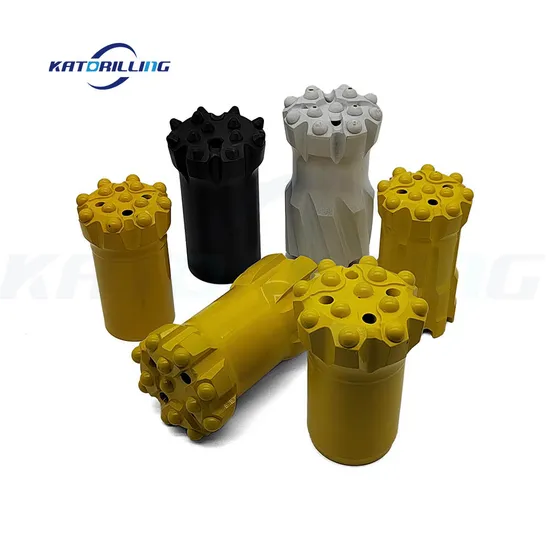

Our bench and production drilling tools include a wide range of rods, shank adapters, couplings, and bits. We support 9 major thread types to ensure compatibility across various operations: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These tools are designed for optimal use with button bits, cross bits, and reaming products.
The comprehensive range of rock drilling equipment spans from 1" rope thread equipment up to T60 thread equipment. Our high-performance drill rods, tubes, and button bits are engineered to significantly improve drilling productivity in demanding environments.

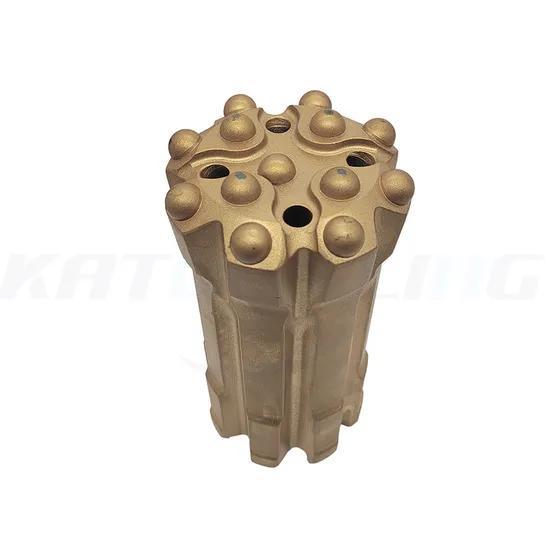

| Button Bit Type | Carbide Dimension (mm) | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | mm | inch | Front | Side | |||
| No. | mm | No. | mm | |||||
| Standard T38 | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| Standard T38 | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| High Precision | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| Heavy Duty | 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| Drop Center | 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
