| Diameter | Length | No. of buttons | Buttons x Diameter | Gauge Angle | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | Gauge | Center | |||

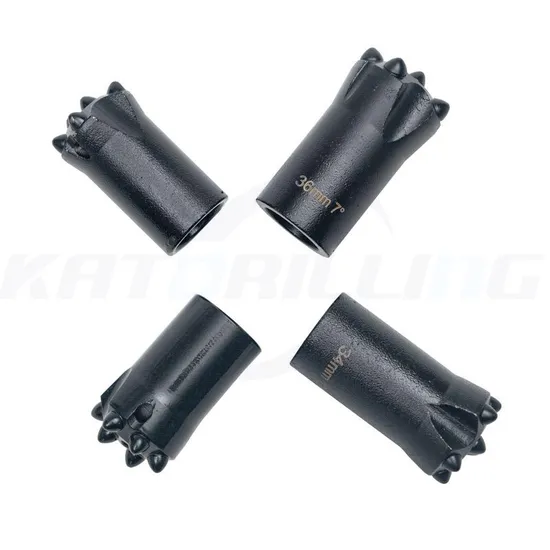

| Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle. Short Skirt | ||||||||
| 36 | 1 13/32" | 50 | 1 31/32" | 7 | 5x7 | 2x7 | 35° | 0.2 |
| Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle. Long skirt | ||||||||
| 33 | 1 5/16" | 71 | 2 5/32" | 7 | 5x8 | 2x7 | 40° | 0.3 |
| 36 | 1 13/32" | 71 | 2 5/32" | 7 | 5x9 | 2x7 | 35° | 0.3 |
| 41 | 1 5/8" | 71 | 2 5/32" | 7 | 5x7 | 2x7 | 35° | 0.3 |
| Button bit - For 22 mm (7/8") hex. Rod 7° taper angle. Long skirt | ||||||||
| 32 | 1 1/4" | 80 | 3 5/32" | 7 | 5x7 | 2x7 | 35° | 0.3 |
| 35 | 1 3/8" | 80 | 3 5/32" | 7 | 5x8 | 2x7 | 40° | 0.4 |
| Button bit - For 22 mm (7/8") hex. Rod. 11° taper angle. Short skirt. | ||||||||
| 32 | 1 1/4" | 55 | 2 5/32" | 8 | 6x7 | 2x7 | 39° | 0.2 |
