China U95 Shearer Pick-Carbide Strips Quotes, Pricelist

Our products include all kinds of round cutter bit and flat cutter bits for excavate coal Machine. Such as U76, U82, U84, U85, U92, U94, U95, U118 S100,S135,S150,S160,S200 , B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73 etc and coal bolting bit and coal bolting Rod.

Send Inquiry

Product Description

1

High Toughness Material: Alloy steel body made by ASTM4140 (42CrMoA), heat treated to HRC38-42 hardness for maximum wearable character.
2

Sintered Carbide Tip: Tungsten carbide tip crafted from low-pressure sintered grades, selected specifically for optimal performance in target projects.
3

Superior Efficiency: Designed for high feed rates, long service life, and minimized tool-changing downtime. Suitable for surface mining, underground mining, and tunneling.

Our product range includes comprehensive selections of round cutter bits and flat cutter bits for excavating coal machines, including U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, as well as coal bolting bits and rods.

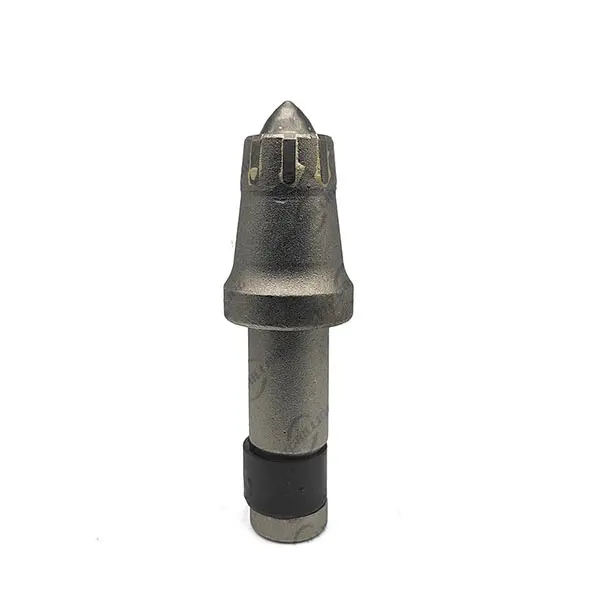

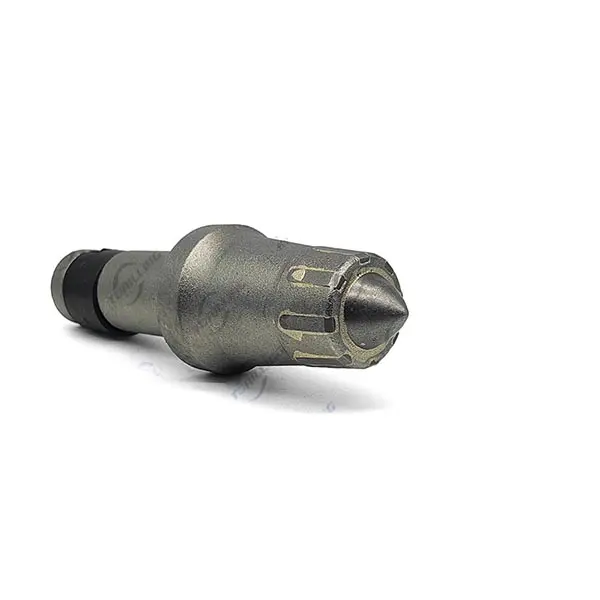

U95 Shearer Pick-Carbide Strips

Product Specification Overview
Product Name	Coal Cutting Tools
Description	Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters, and related accessories.
Material	Carbide Steel
MOQ	100 PCS
Available Types	U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, B47K19H, B47K22H, B43K, B43H, BHR73, Coal Bolting Bit/Rod
Diameter	19mm - 70mm
Primary Use	Mining and Drilling Operations
Color Options	Available according to customer request

Universal Compatibility Specifications

Our high-performance tools serve as direct replacements for industry-standard specifications, categorized by shank size:

19mm Round Shank:
U43KHL, C21, U43KH, C24, U43K, C22, U43KL, C21HD, U43KHD

20mm Round Shank:
U50KH, U50KL, U51KHL, U51KL

25mm Round Shank:
U765XHD, AM476, U765HD, U73, UC765, AM765PKH, AM430FB, C31HD, C31, C32, U40HD

30mm Round Shank:
KS5, AM510FG, U119, U119HF, AM521HF, AM514P, U85AUS, AM511, AM511FG, U85, U85HD, UR118, U84KHD, U118K

35mm Round Shank:
U92, U92HD, U92HDL, U92K, U94, U94KHD, U92KHD, U92LR, U94HDLR, U93LRD, U95, U95HD

52mm Round Shank:
U200HF, AM956DB, AM962, U200, U200TS, AM941, AM941HF, AM942DB, AM943DB

Detailed Technical Parameters

Category	Model	Height (mm)	Diameter (mm)	Alloy Size (mm)	Tooth Sleeve (mm)
Shearer Pick	U47	157	Φ64	Φ19	Φ30
	U82	152	Φ50	Φ22	Φ30
	U85	195	Φ55	Φ16	Φ35
	U95	182.5	Φ54	Φ23	Φ35
Roadheader Pick	S100	141	Φ53	Φ22	Φ33.7
	S135	155	Φ64	Φ25	Φ38
	S260	165	Φ65	Φ25	Φ38
Rotary Excavator	C31/25-12H	118	Φ33	Φ12	Φ25
	C50/30-22H	130.5	Φ50	Φ22	Φ30
	C55/30-25H L	150	Φ55	Φ25	Φ30

Frequently Asked Questions (FAQ)

What materials are used in the manufacturing of the cutter bits?

The main body is constructed from ASTM4140 (42CrMoA) alloy steel with heat treatment (HRC38-42). The tips are made from high-grade low-pressure sintered tungsten carbide.

Are these products compatible with major brand machines?

Yes, our products are designed to meet or exceed international specifications and can serve as direct replacements for various tool series including those compatible with Kennametal's sizing.

What are the primary applications for these tools?

They are highly versatile and engineered for coal mining, surface mining, underground mining, tunneling, and construction drilling.

What is the Minimum Order Quantity (MOQ)?

The standard MOQ for our coal cutting and drilling tools is 100 pieces per order.

Can I request a specific color for the tools?

Yes, we can customize the color of the tools according to specific customer requirements or branding preferences.

How do these tools improve mining efficiency?

By utilizing high-toughness steel and precision carbide tips, they support high feed rates and offer a longer service life, which significantly reduces the frequency and time required for tool changes.
