China Yn27 Pneumatic Air Leg Hand Held Rock Drill Factory, Pricelist

1 / 4

China Yn27 Pneumatic Air Leg Hand Held Rock Drill Factory, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

YN27

Certification

ISO 9001:2000, ISO 9001:2008

Condition

New

Motor

Air

Drill Hole Diameter

<100mm

Drill Hole Depth

<100m

Bit Type

Button Bit

Working Pressure

0.4-0.63MPa

Air Consumption

85(L/S)

Production Capacity

2000 Sets / Week

📦 Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport

Air/Sea/Express

Package Type

Wooden Case

🛠️ Product Description

⚙️

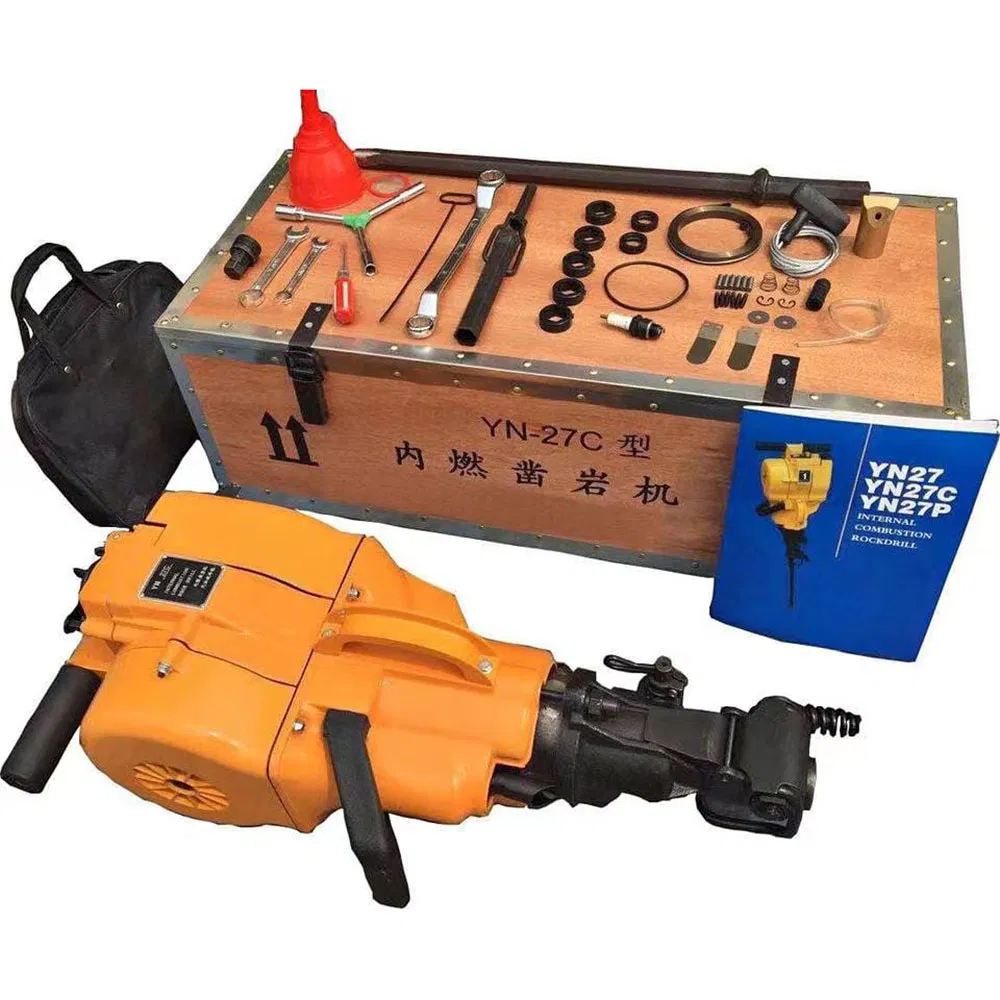

The Internal Combustion Rock Drill Type YN27 is a very efficient machine with the characters of the structure is very compact, less of the- easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and electronic power.

💡

It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock drilling.

Technical Specifications
Weight of main machine	27kg
Overall dimensions(LWH)	746315229mm
Type of engine	Single cylinder, air cooled two strokes
Cylinder diameter*stroke of piston	Φ58*70mm
Rotation speed of engine	≥2450rpm
Displacement of engine piston	185cm³
Drilling speed (mean value of five holes)	≥250mm/min
Drilling hole diameter	Φ28-42mm
Max drilling depth	6m
Fuel consumption	≤0.12L/m
Tank capacity	≥1.5liter
Rotating speed of drill rod	≥200rounds/min

📸 Product Gallery

🚢 Logistics Packaging

❓ Frequently Asked Questions

What payment methods do you accept?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight for our orders.

What is the typical handling time for an order?

Production usually takes about 25 days depending on the quantity. If the requested size is in stock, it can be shipped within 2 to 3 days.

Which shipping methods are available?

For sample orders, we recommend express couriers like DHL, UPS, TNT, or FEDEX, or by air. For bulk orders, shipping by air or sea is suggested.

How do you ensure product quality?

We have an experienced internal QC team. Every order undergoes strict inspection and testing before being dispatched.

What kind of after-sales service do you provide?

Our team responds to inquiries within 24 hours. We provide continuous technical support and free replacements if a failure is confirmed to be caused by product quality issues.

Can this drill be used without electricity?

Yes, the YN27 is an internal combustion drill powered by a gasoline engine, making it ideal for outdoor sites without access to water or electronic power.
