High-Quality DHD380 Water Well Drilling Down The Hole Impactor DTH Hammer for Construction and Mining Manufacturers, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Technical Specifications

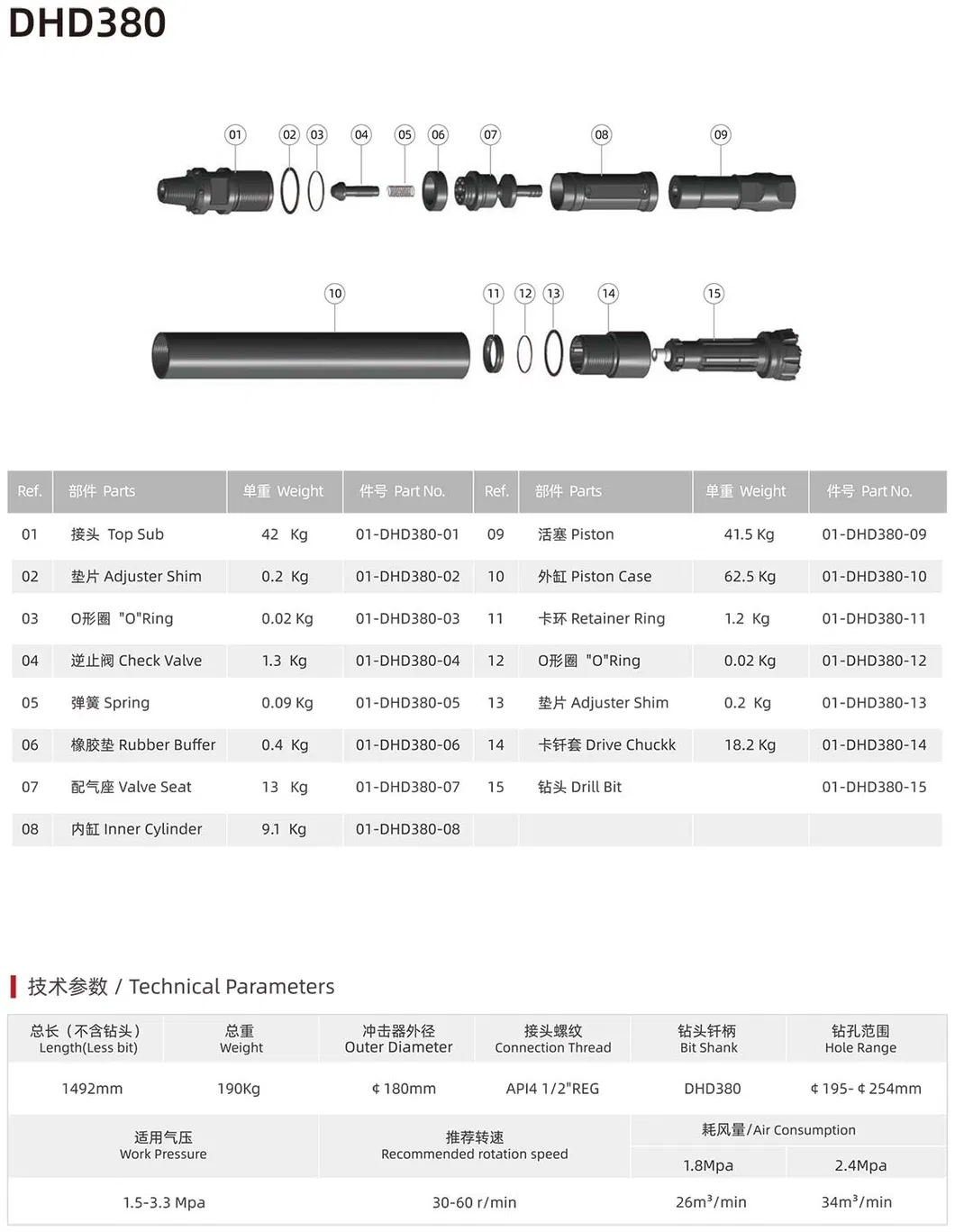

Model:DHD380 Hammer

Certification:CE, ISO 9001:2000, ISO 9001:2008

Standard:AISI, GB

Surface:Spray-Paint

Material:Carbon Steel

Machine Type:Drilling Tools

Bit Adapter:DHD380

Length:1492mm

Outside Diameter:180mm

Weight:190kg

Pressure:1.5-3.3MPa

HS Code:8431432000

Product Description

High air pressure DTH hammer is a specialized down-the-hole hammer designed for percussive drilling in rock formations. Characterized by high air pressure and exceptional efficiency, it is ideal for operations with abundant air supply. The system utilizes compressed air to drive a reciprocating piston within the cylinder, generating high-impact energy transmitted directly to the drill bit.

⚙️

Core Advantages:

Maximum energy delivery to the drilling bit for faster penetration.
Low air consumption through optimized internal structures.
High-quality alloy steel materials for extended service life.
Simple assembly and disassembly for low maintenance costs.
Multihead thread connecting chuck for easy bit removal.

Applications & Range

Water well drilling and Bench drilling
Mining and Mineral Exploration
Civil Engineering Applications
Oil well drilling
High pressure drilling rigs

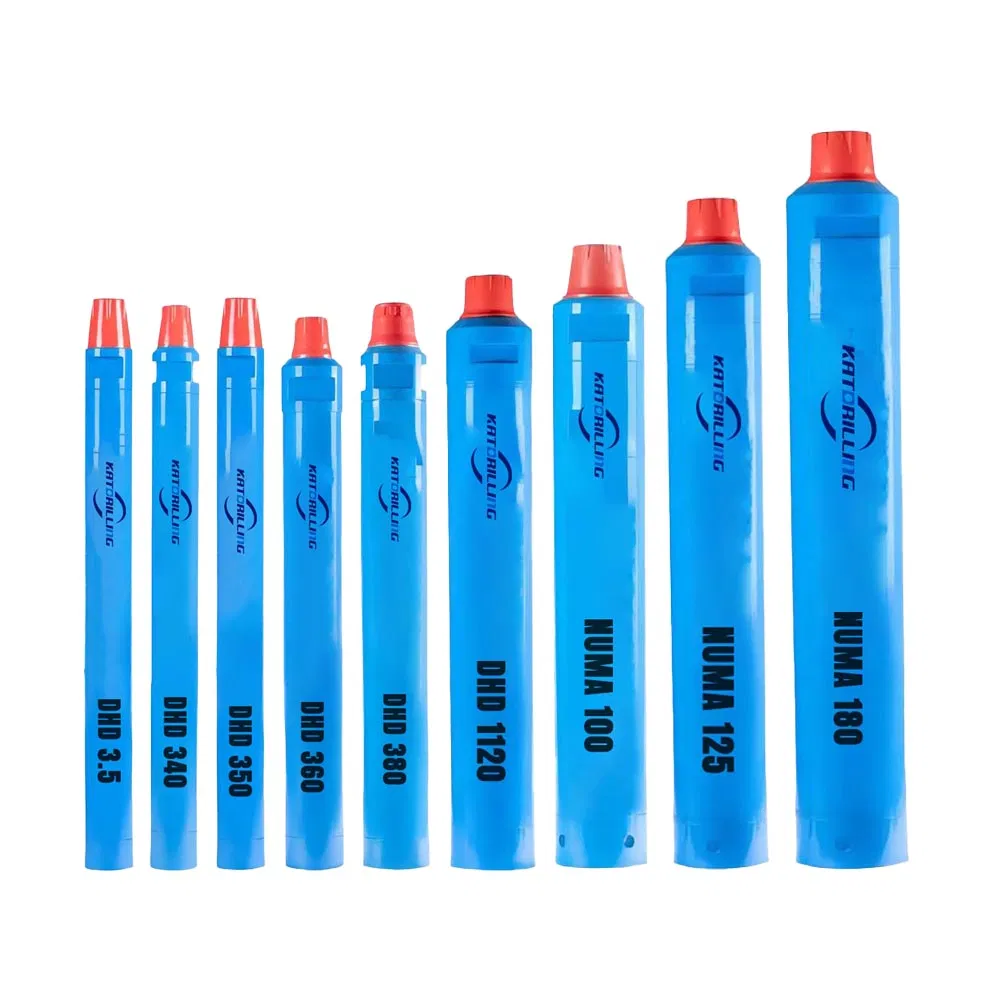

Type	Model	Length (mm)	Weight (kg)	External Dia.(mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99
	QL4	1097	41	Φ99
	Mission40	1005	40	Φ99
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125
	QL5	1147	73	Φ125
	Mission50	1110	68.5	Φ125
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142
	QL6	1212	95	Φ146
	Mission60	1161	90	Φ146
8 inch	D85	1492	188	Φ180	Φ195-254
	SD8	1463	192	Φ180
	QL8	1465	182	Φ180
	Mission80	1338	176	Φ180

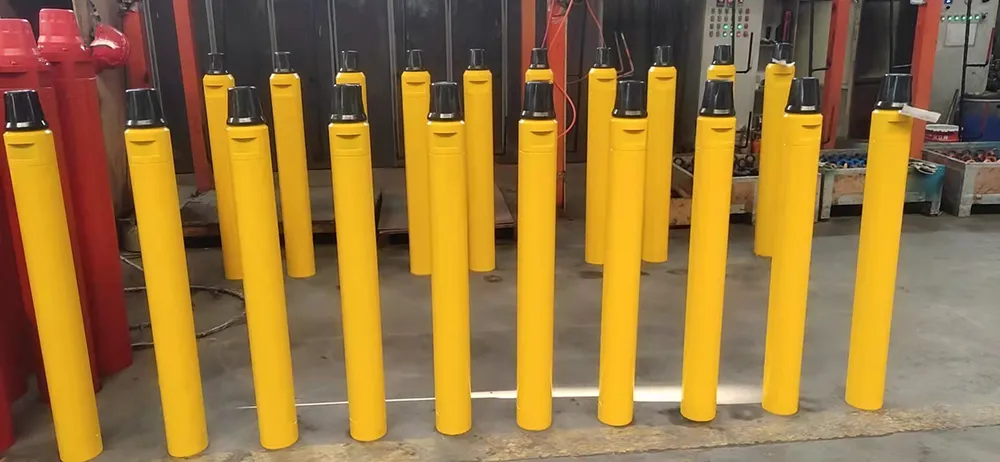

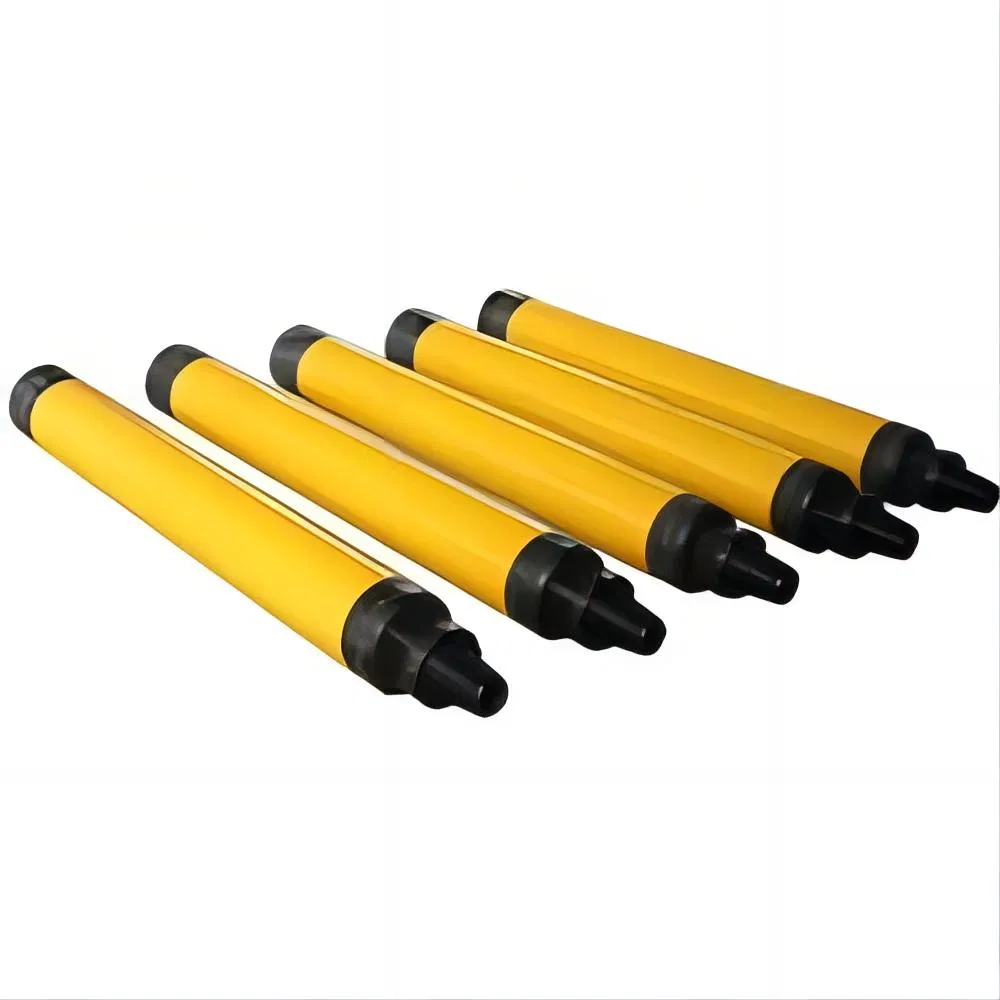

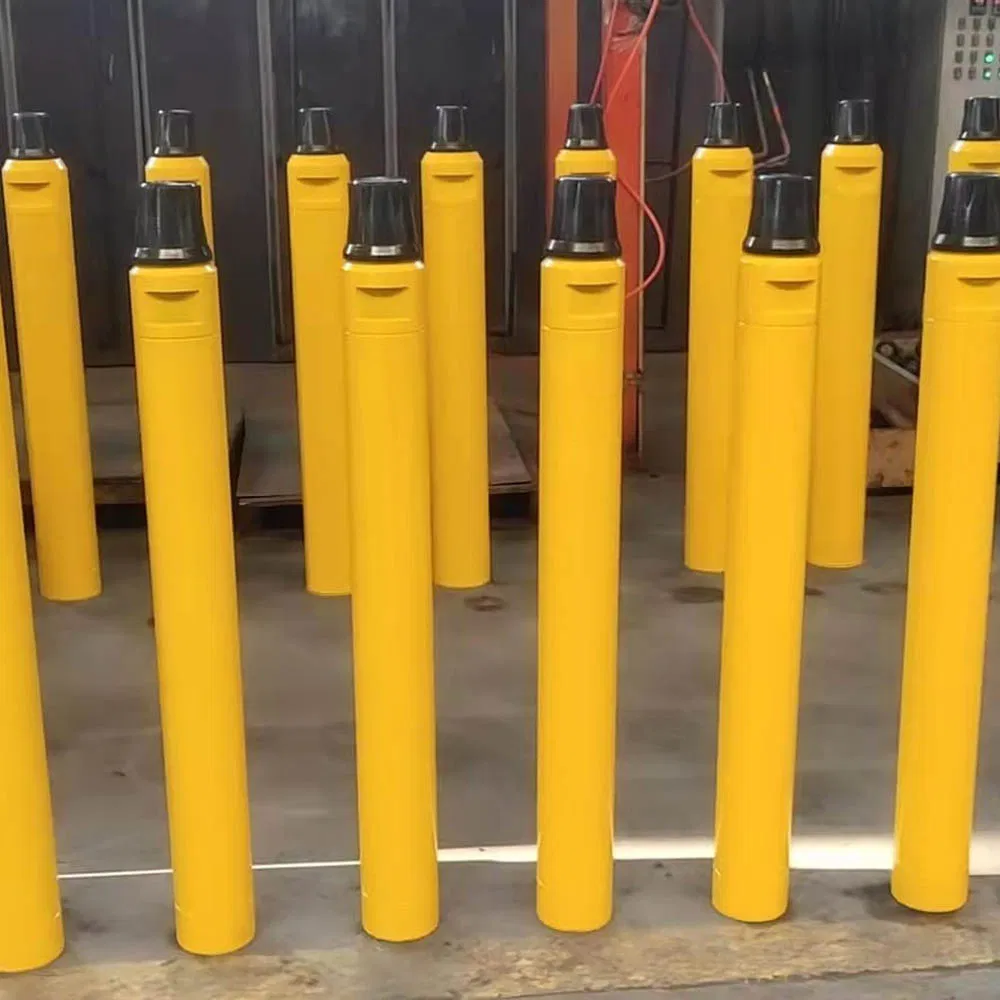

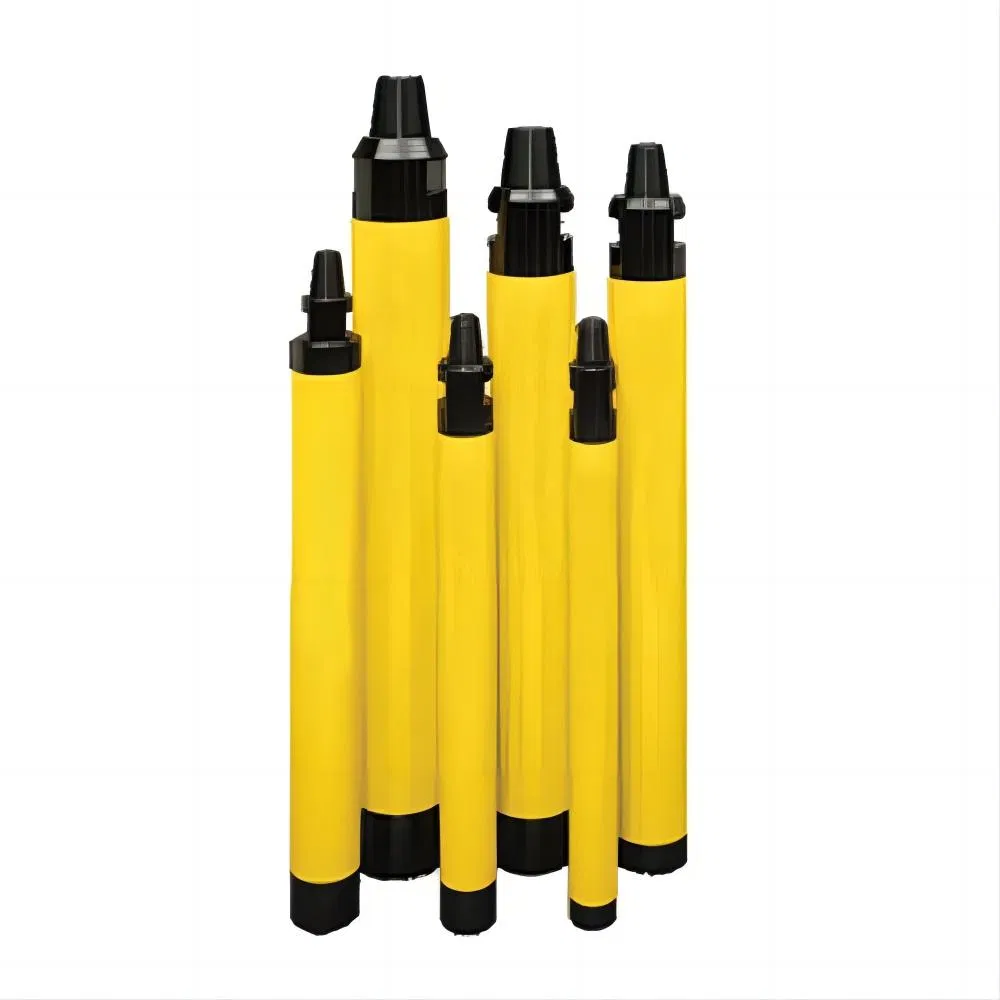

Detailed Photos

Frequently Asked Questions

1. What is the main function of the DHD380 DTH Hammer? It is primarily used for percussive drilling in hard rock formations, converting compressed air into high-impact energy to drive the drill bit efficiently.

2. What industries commonly use this equipment? This hammer is widely used in mining, quarrying, water well drilling, construction, and civil engineering applications.

3. How does the internal structure improve performance? The HD series features a specialized inner structure designed according to the latest rock drilling theories, ensuring maximum energy transfer and reduced air consumption.

4. Is the DTH Hammer easy to maintain? Yes, the simple and reliable design allows for easy assembly and disassembly, which significantly lowers the problem rate and maintenance difficulty.

5. What is the drilling speed advantage? Due to its high air pressure design, these hammers can penetrate 15% to 30% faster than standard alternatives, providing higher production at a lower unit cost.

6. What materials are used in manufacturing? The hammer is manufactured using high-quality carbon steel and alloy materials, combined with advanced processing technology for maximum durability.
