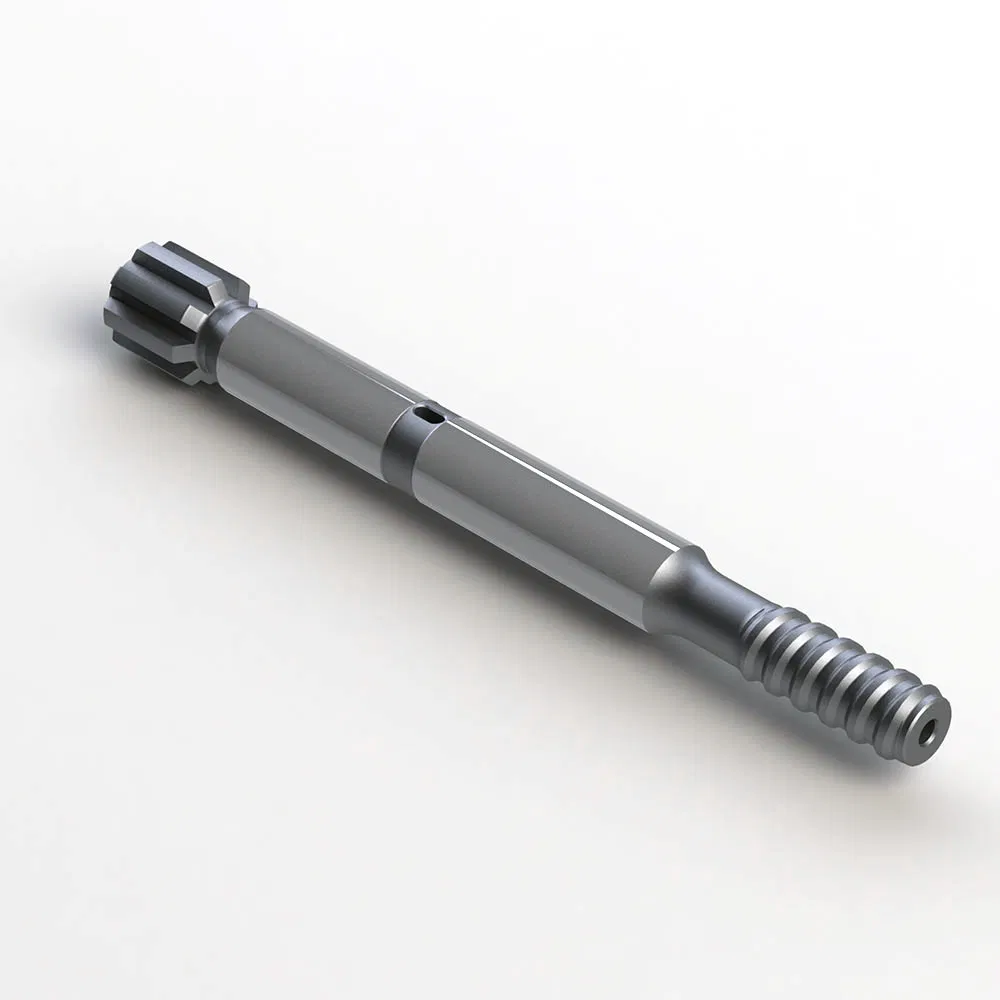

The rock drilling tools manufacturer produces shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. Female shank adapters are used when the drilling space is limited and the total feed length is important, such as underground roof bolting.
The primary task of the shank adapter is to transmit rotation torque, feed force, impact energy, and flushing medium to the drill string (extension drill rods, drifting drill steels). These adapters are designed to withstand the high impact power of modern rock drills and are made from specially selected materials hardened through carburizing. Around 300 different shank adapters suitable for various rock drills are available.
| Adapted Models Reference | |
|---|---|
| Atlas Copco | vl140,bbc42,bbc44,bbc100,bbc54,bbc120,cop125,cop130,cop131,cop131EB,cop628,cop925,cop928,cop932,cop938,cop1028,cop1028hb,cop1032,cop1036,cop1038,cop1238,copbr11,cop1132,coprr11,cop1140,copsc14,coprr14,cop1240,cop1640,cop1840,cop1850,cop2150,cop2550,COP SC16, SC19, SC 25-HF, 1240EX, 1640EX, 1840EX, 1850EX, 2150EX, 2550EX, RD 14S, RD 18S, RD 22S, cop1838, cop2238, cop3038, cop4038 etc. |
| Tamrock | HLX 1, RD106, HL300, RD308, RD314, RD414, HLX5, HLX5T, HFX5T, RDX5, HL500, HL510, HL538L, HL550S, HL600, HL650, HL700, HL710, HL800T, HL1000, HL1500T etc. |
| Furukawa | HD 200, M 120, HD 260, HD 300, HD 500, HD 609, HD 612, HD 615, HD 709, HD 712, HD 715, HD 822 QED, 826 QED, HD 836, PD 200R, PD 200. |
| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YD 90 M, YH 65, YH 70, LM 500, YH 80A, YH 100 RP, YH 110 V, YH 135. |
| Montabert | HC 20, hc25, hc40, hc50, hc80, hc120, hc90, hc105, HC 107 RP, HC 108 RP, HC 109 RP, HC 110 RP, HC 150 RP, hc160, hc170, hc200. |
| Customization services are available based on samples or drawings. | |
| HL 500-38, 510-38 Series | |||||
 |
THREAD | OVERALL LENGTH (L) | FRONT END DIAMETER | ||
| mm | In. | mm | In. | ||
| R32 | 550 | 21.65 | 38 | 1.50 | |
| R38 | 550 | 21.65 | 38 | 1.5 | |
| T38 | 550 | 21.65 | 38 | 1.5 | |
| HL 500-45, 510-45 Series | |||||
 |
THREAD | OVERALL LENGTH (L) | FRONT END DIAMETER | ||
| mm | In. | mm | In. | ||
| T38 | 550 | 21.65 | 45 | 1.75 | |
| T45 | 550 | 21.65 | 45 | 1.75 | |

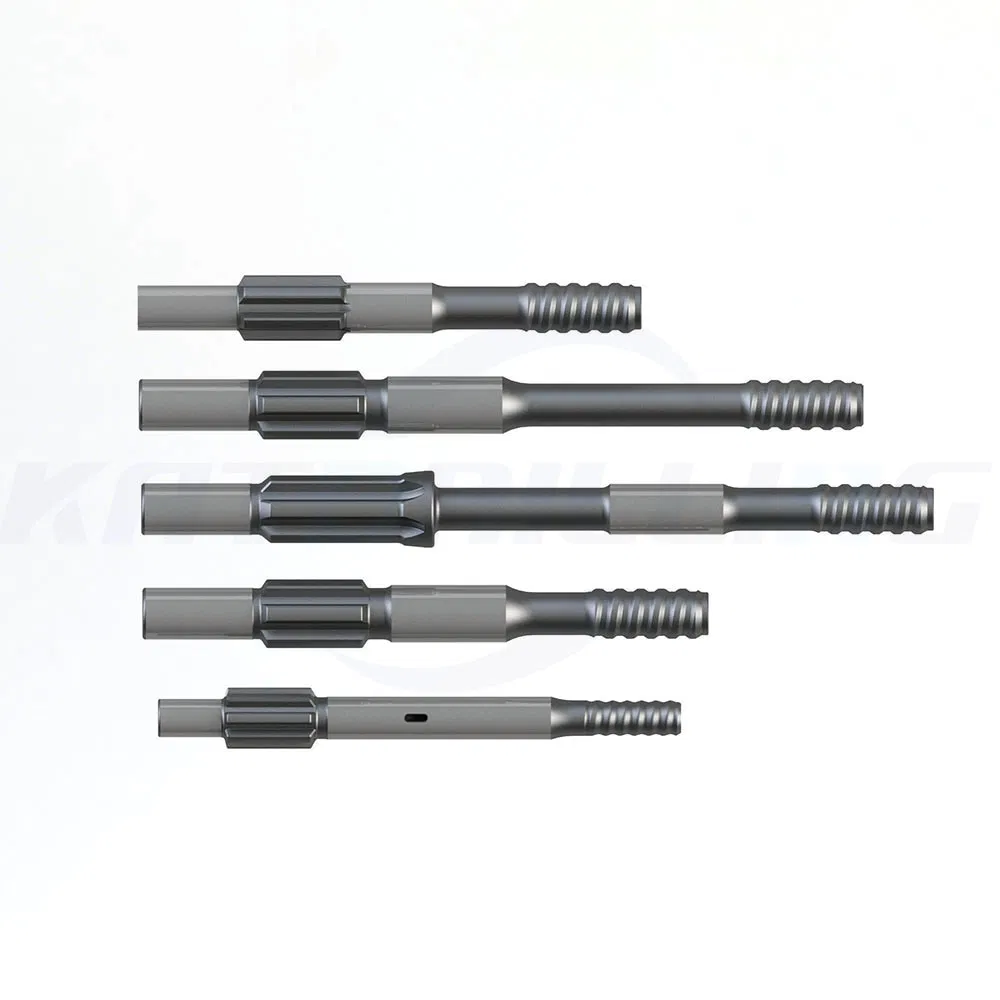

Ingersoll-Rand Drilling Rig Spare Parts:

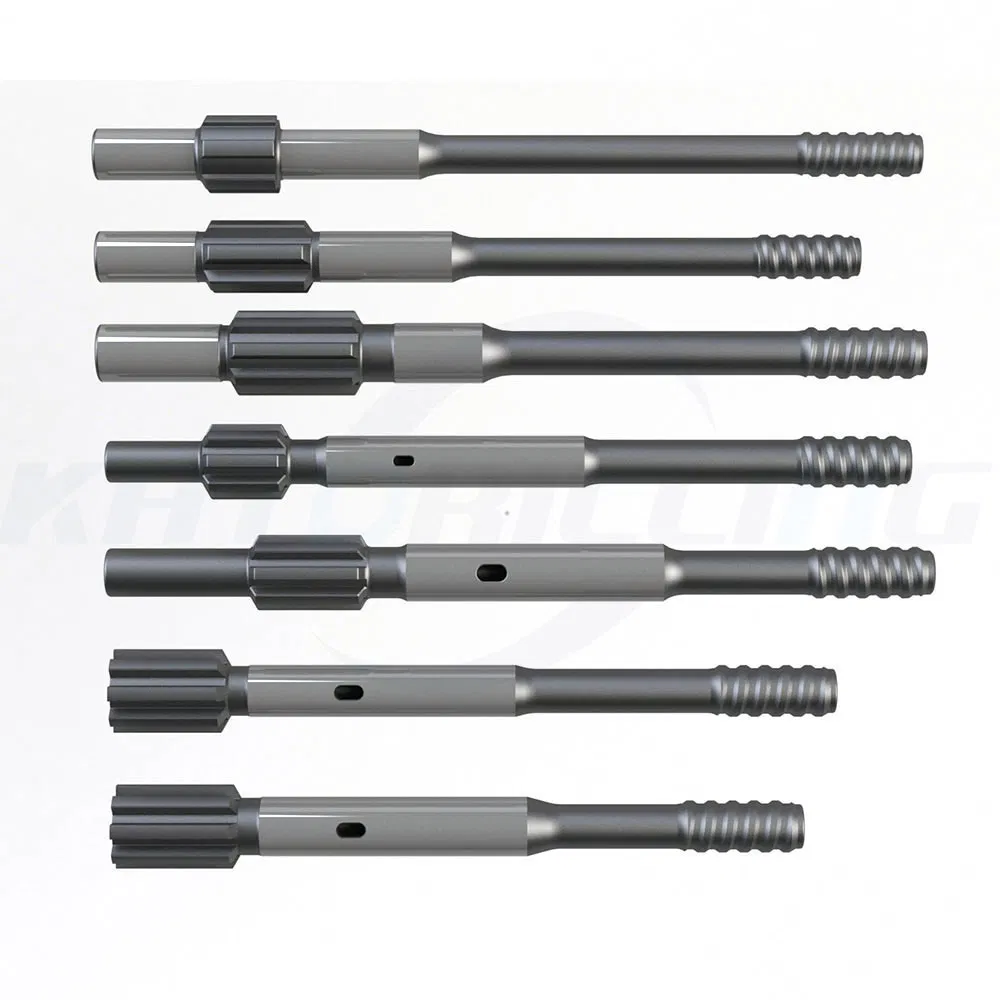

FURUKAWA Drilling Rig Spare Parts:

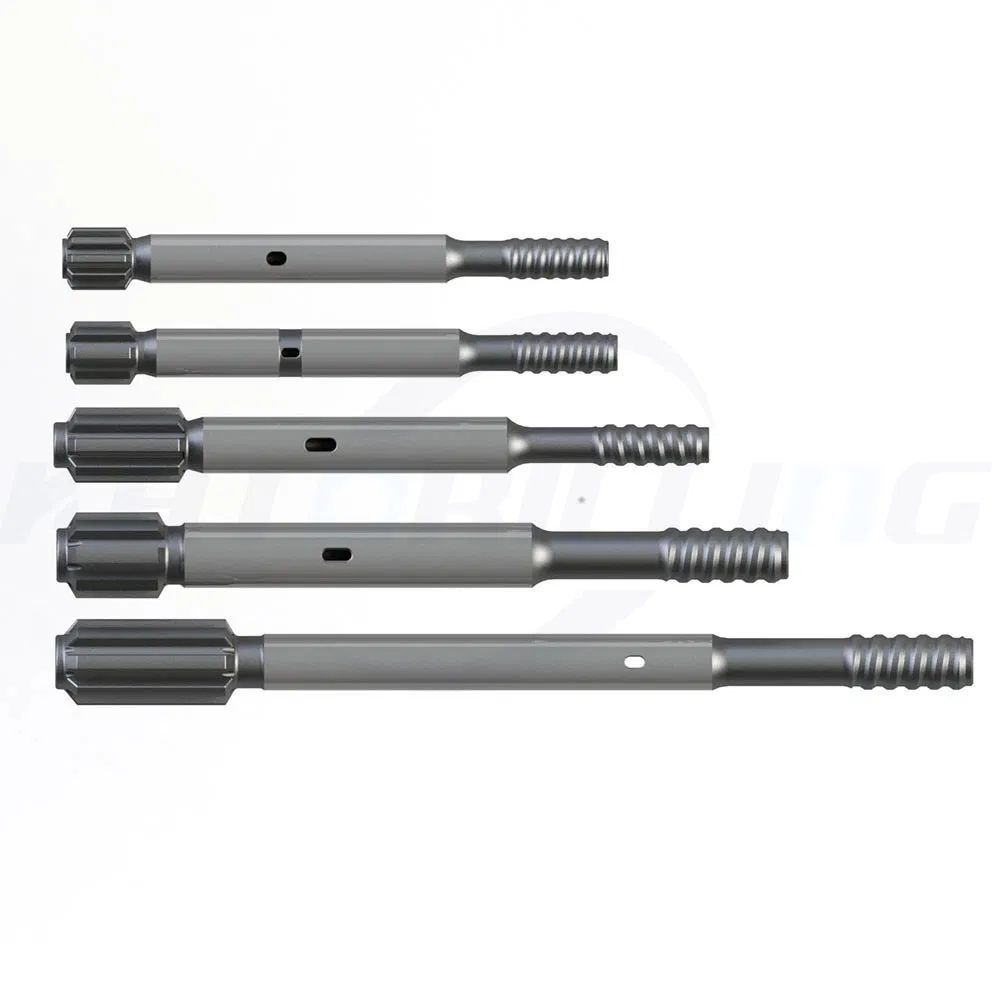

Tamrock Drilling Rig Spare Parts:

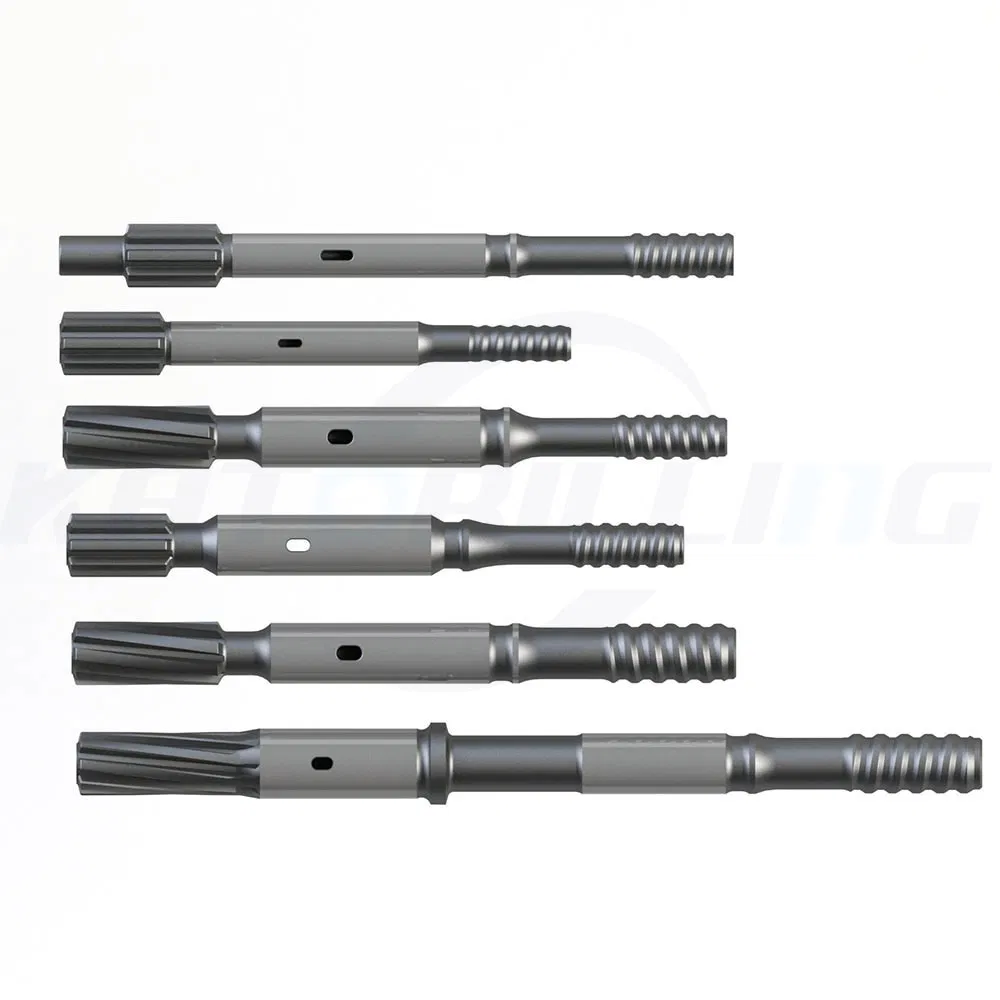

Epiroc Drilling Rig Spare Parts:

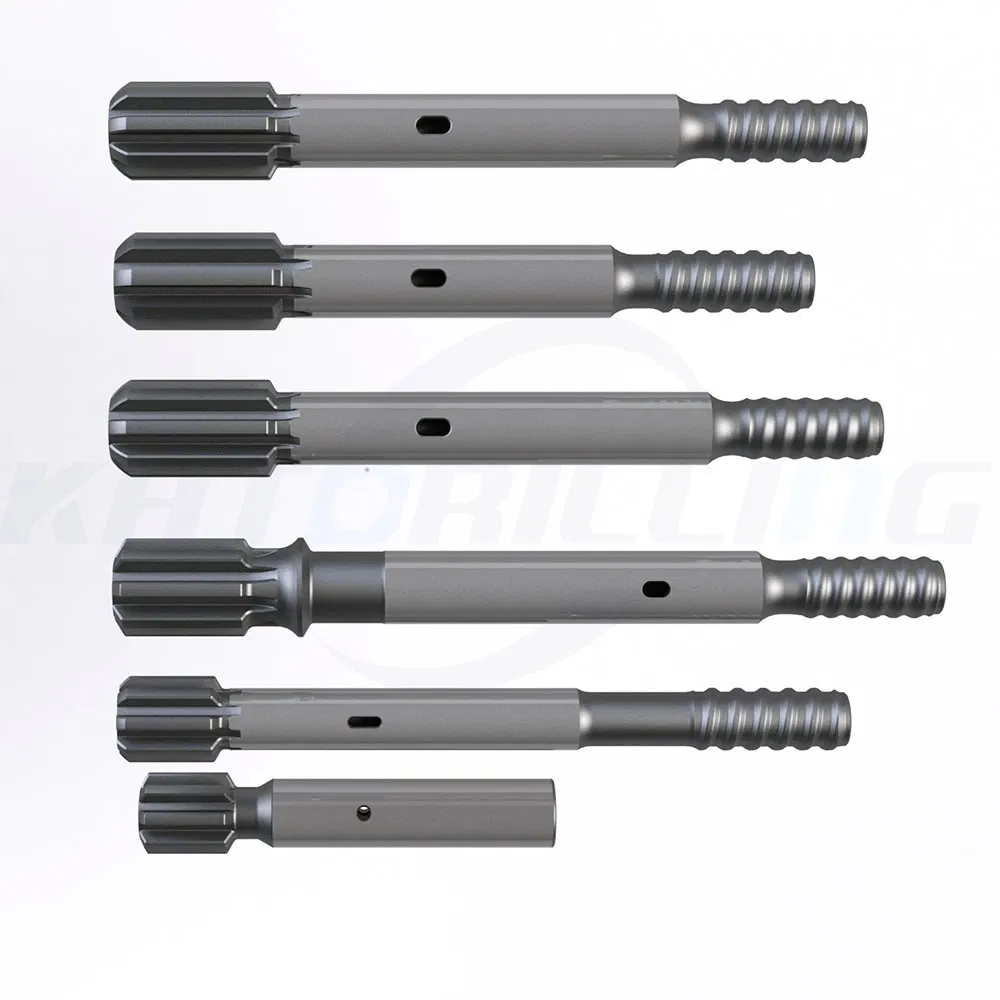

Montabert Drilling Rig Spare Parts:
