High-Quality Ql80 Down The Hole Impactor DTH Hammer for Construction and Mining Manufacturer, Factories

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Basic Information

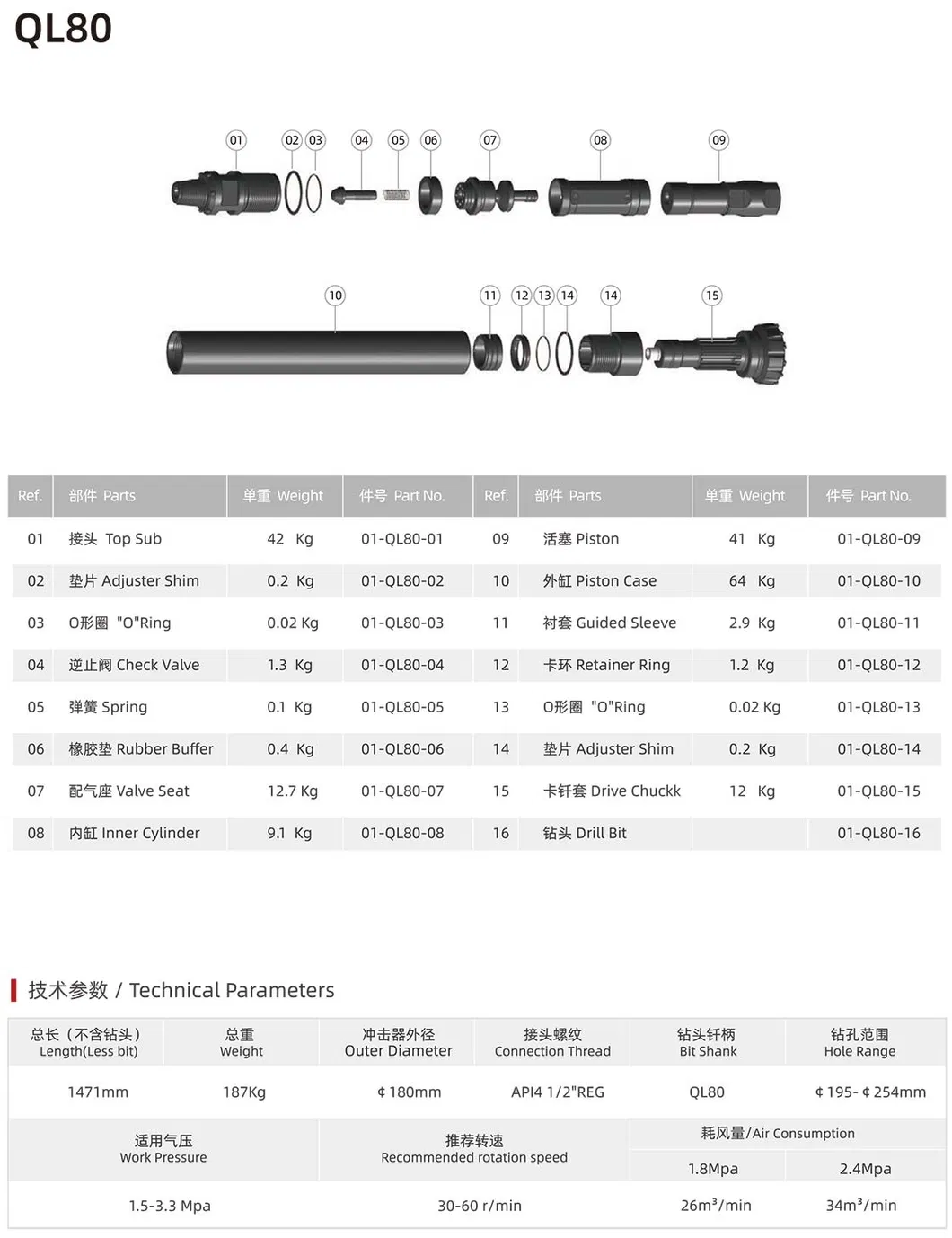

Model NO.	QL80 DTH Hammer
Certification	CE, ISO 9001:2000, ISO 9001:2008
Standard	AISI, GB
Surface Treatment	Spray-Paint
Manufacturing Process	Stamping
Material	Carbon Steel
Machine Type	Drilling Tools
Color	Red, Black, Yellow, White
Bit Adapter	Ql80
Length / Outside Diameter	1471mm / 180mm
Weight	187kg
Working Pressure	1.5-3.3MPa
Production Capacity	500000PCS/Month

Product Description

High air pressure DTH hammer is a kind of down-the-hole hammer, primarily used for percussive drilling in rock formations. Characterized by high air pressure and efficiency, it is ideal for areas with abundant air supply. By using compressed air to drive the piston in the cylinder, it generates high impact energy to penetrate rock efficiently.

✔

Maximum Energy Transfer: Optimized inner structure based on rock drilling theory ensures fast drilling and low air consumption.

✔

High Durability: Crafted from high-quality alloy steel with advanced processing technology for a long service life.

✔

Low Maintenance: Simple and reliable design allows for easy assembly and disassembly.

✔

Versatile Application: Suitable for mining, quarrying, water well drilling, and civil engineering.

Available Sizes & Compatibility:

3" DTH Bits: DHD3.5, M30
4" DTH Bits: DHD340, SD4, QL40, M40
5" DTH Bits: DHD350, SD5, QL50, M50
6" DTH Bits: DHD360, SD6, QL60, M60
8" DTH Bits: DHD380, SD8, QL80, M80

Technical Specifications

Type	Model	Length (mm)	Weight (kg)	Ext. Dia (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99
	QL4	1097	41	Φ99
	Mission40	1005	40	Φ99
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125
	QL5	1147	73	Φ125
	Mission50	1110	68.5	Φ125
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142
	QL6	1212	95	Φ146
	Mission60	1161	90	Φ146
8 inch	D85 / QL80	1492	188	Φ180	Φ195-254
	SD8	1463	192	Φ180
	QL8	1465	182	Φ180
	Mission80	1338	176	Φ180

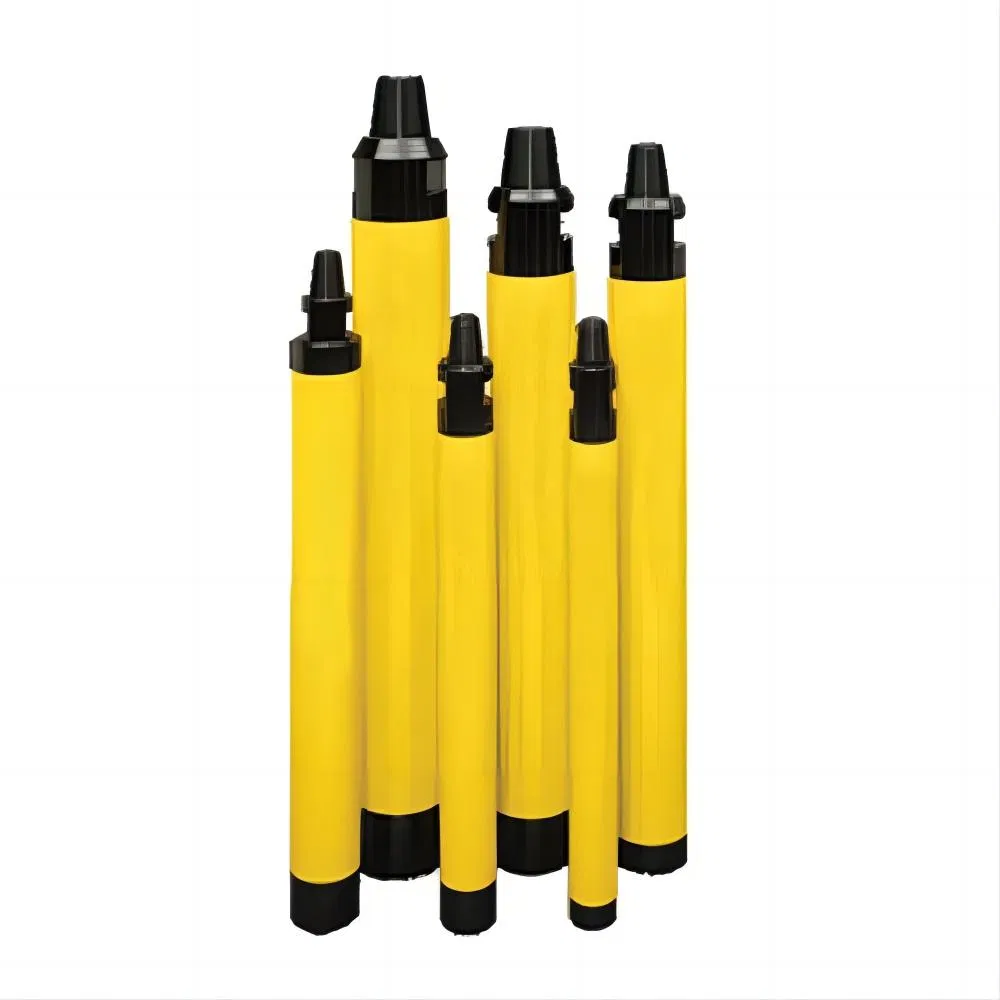

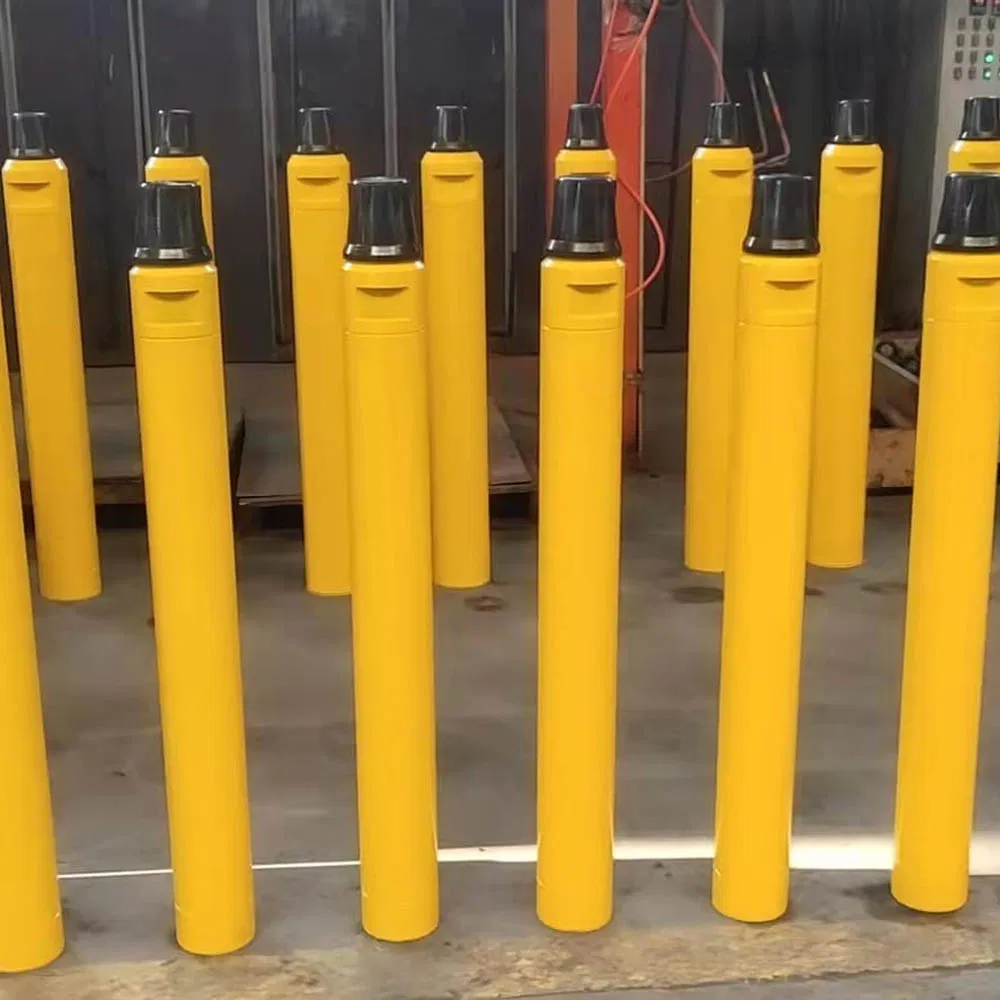

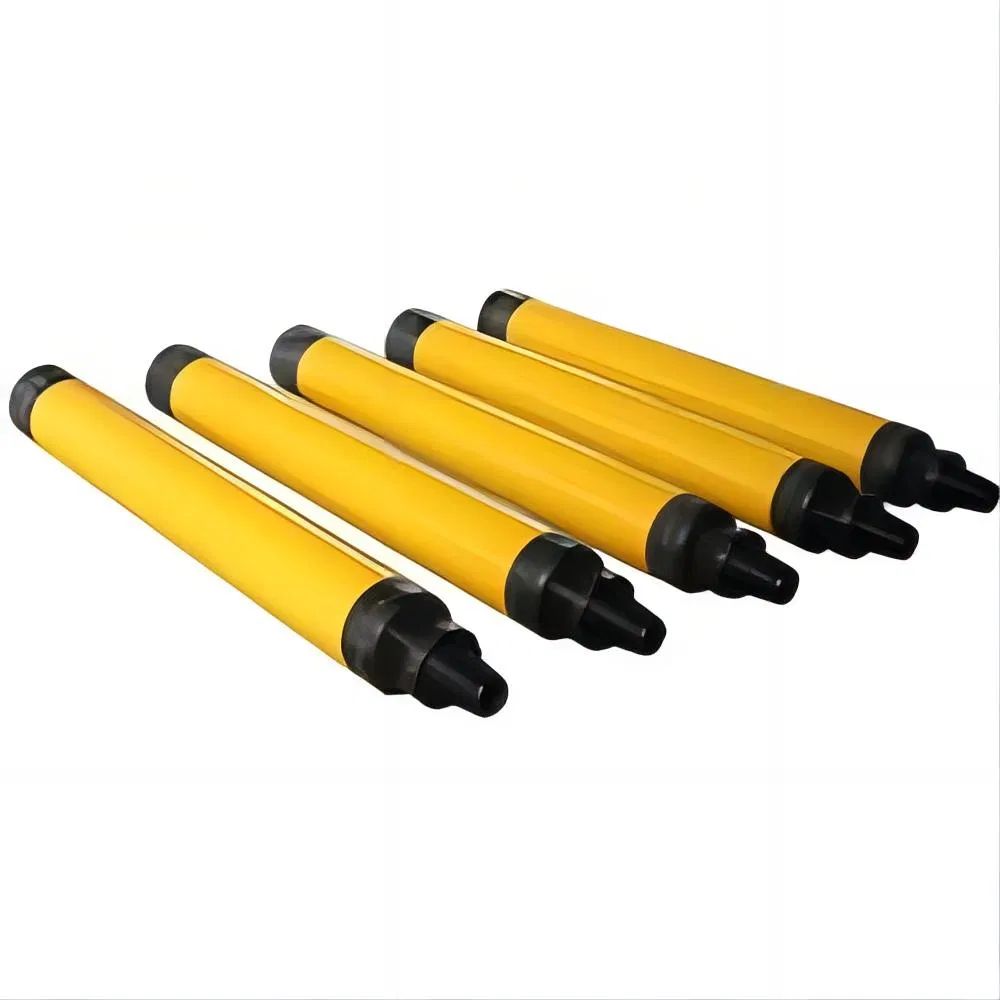

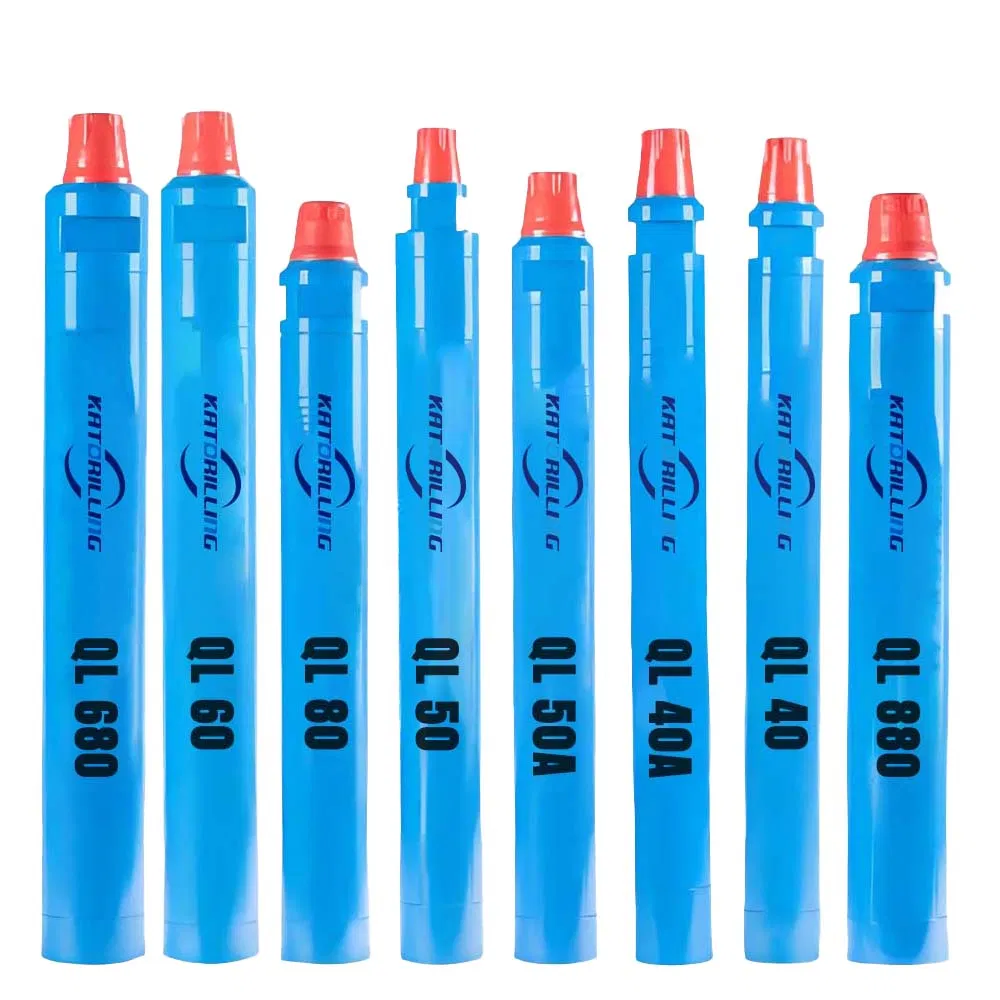

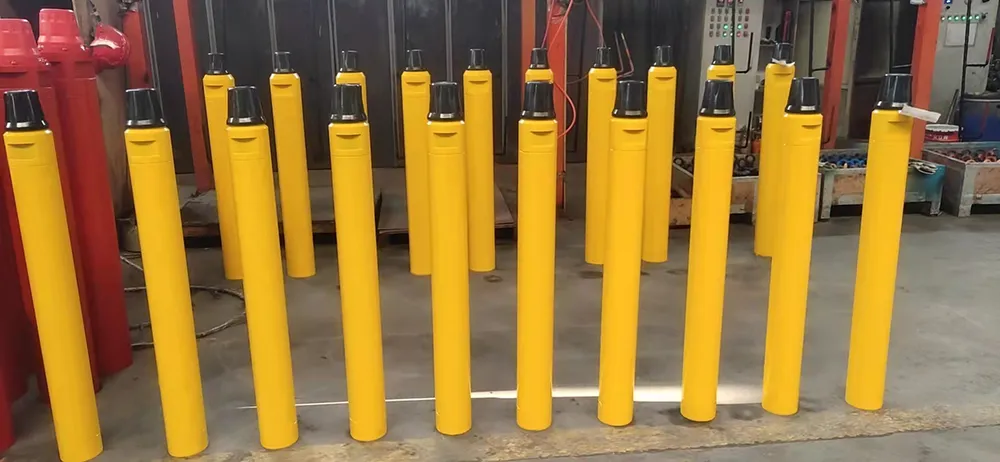

Detailed Product Photos

Packaging & Shipping

Frequently Asked Questions

1. What are the available methods of payment? +

We accept T/T (Telegraphic Transfer), Western Union, and L/C at sight.

2. How long does it take to handle an order? +

Based on order quantity, production normally takes 25 days. If the requested size is in stock, it only takes 2 to 3 days.

3. What are the shipping options available? +

For sample orders, we suggest courier expresses like DHL, UPS, TNT, and FEDEX or by air. For bulk orders, we suggest shipping by air or by sea.

4. How is the quality of the hammers controlled? +

We have an experienced QC team. Every order undergoes strict inspection and testing before being shipped out.

5. What kind of after-sales service do you provide? +

Our team responds to inquiries within 24 hours. Technical support is available at any time, and we provide free replacements for confirmed quality failures.

6. Why choose high air pressure DTH hammers? +

They offer 15% to 30% faster penetration, long service life, and maximize efficiency for any compressor capacity, resulting in the lowest cost per foot drilled.
