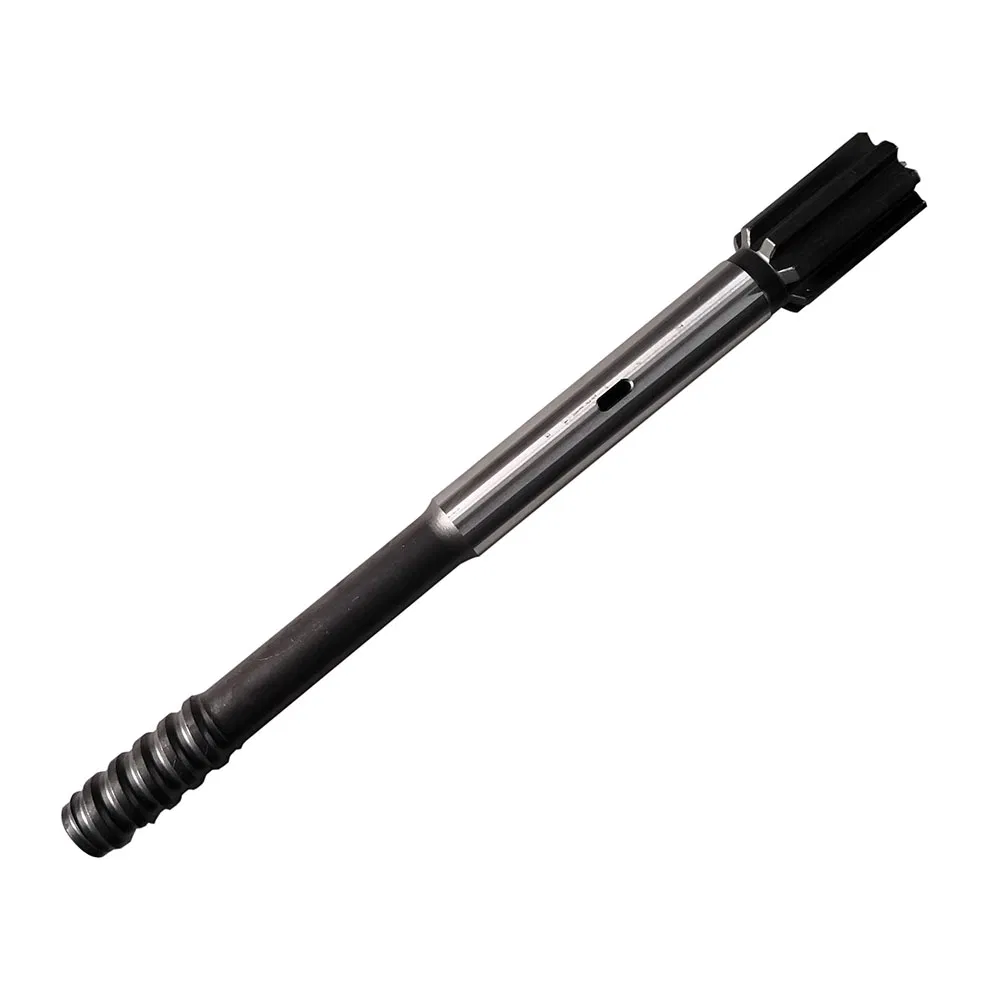

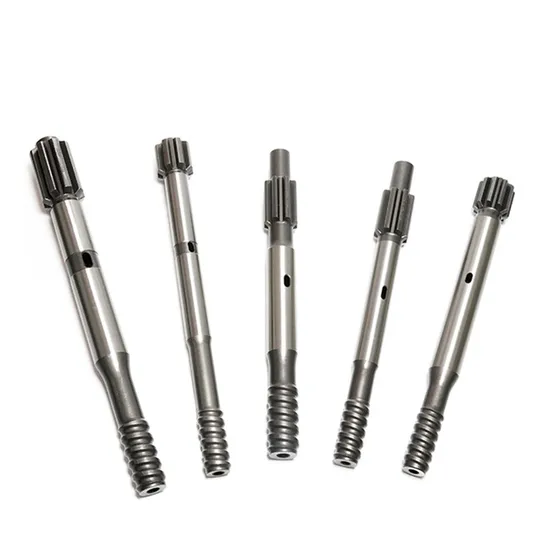

Shank adapters are produced for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling, and extension applications where high bending stresses are present. Female shank adapters are used when drilling space is limited and total feed length is important, such as underground roof bolting.
These adapters are designed to withstand the high impact power of modern rock drills, made from specially selected material hardened through carburizing. Currently, around 300 different shank adapters are available for various drifters including Atlas Copco, Tamrock, and Gardner Denver series.
| Brand | Compatible Models |
|---|---|

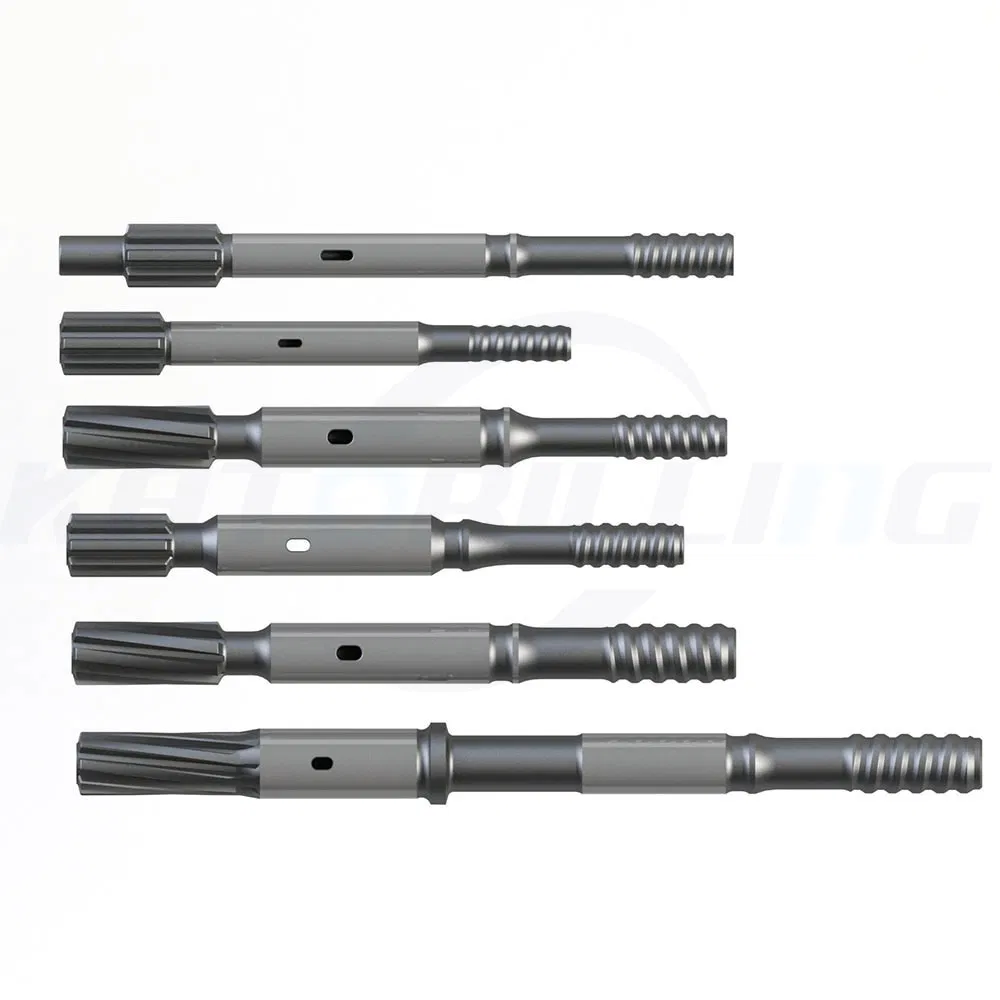

| Atlas Copco | vl140, bbc42, bbc44, bbc100, bbc54, cop125, cop130, cop1038, cop1238, cop1838, cop2238, cop3038, etc. |

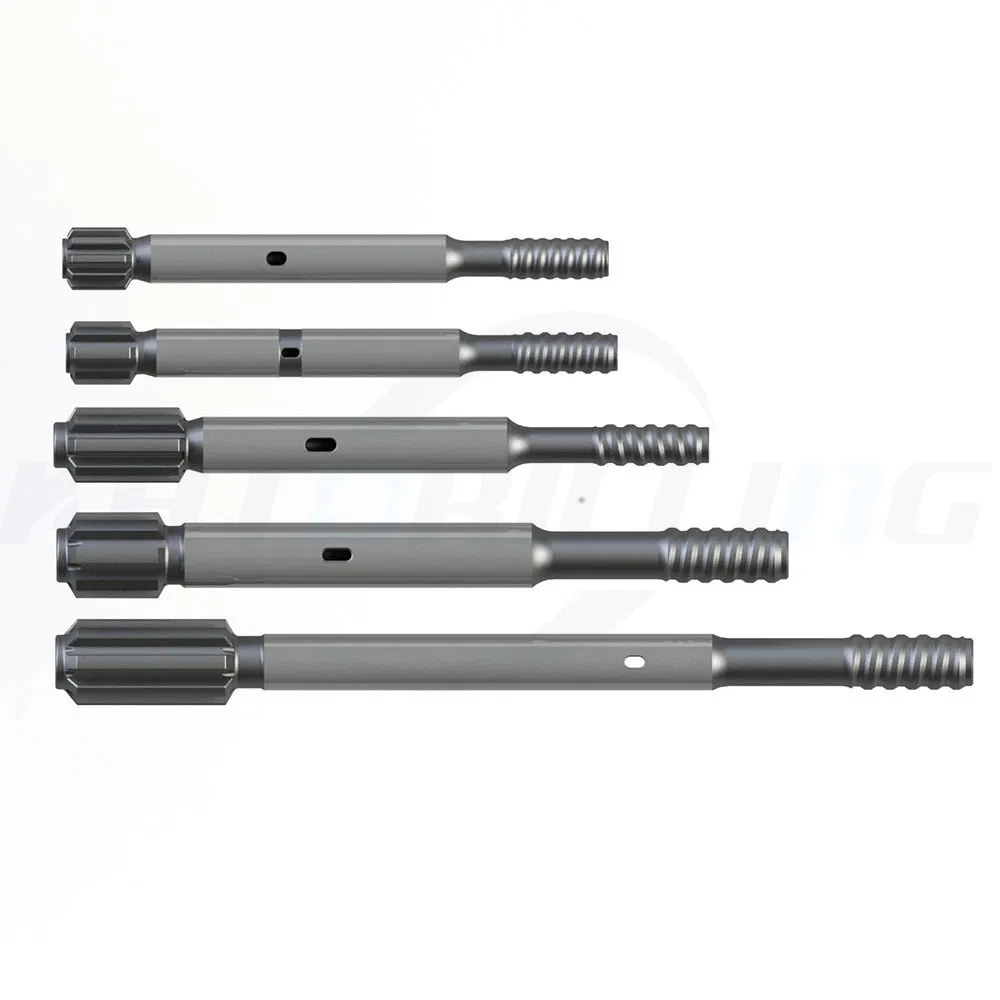

| Tamrock | HLX 1, RD106, HL300, RD314, HLX5, HL500, HL510, HL600, HL700, HL800T, HL1000, HL1500T, etc. |

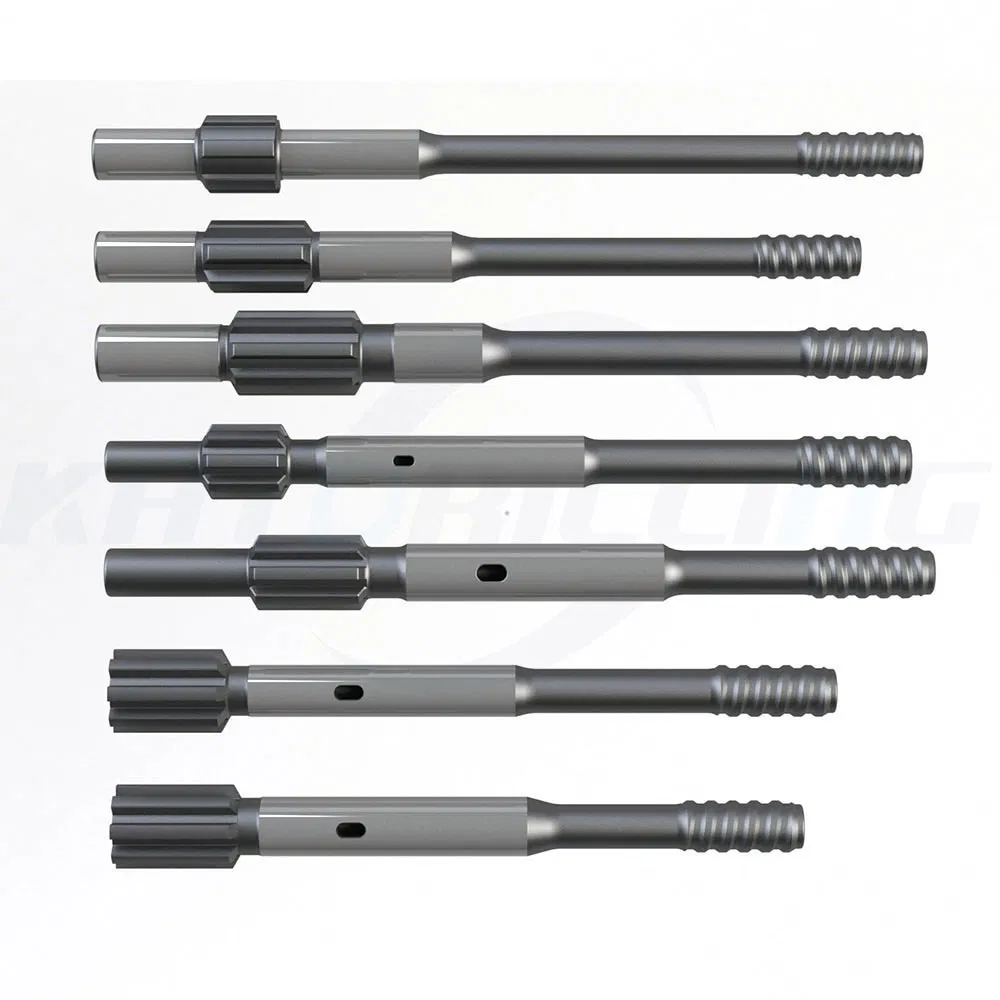

| Furukawa | HD 200, HD 260, HD 300, HD 500, HD 609, HD 612, HD 709, HD 712, HD 715, HD 822, PD 200, etc. |

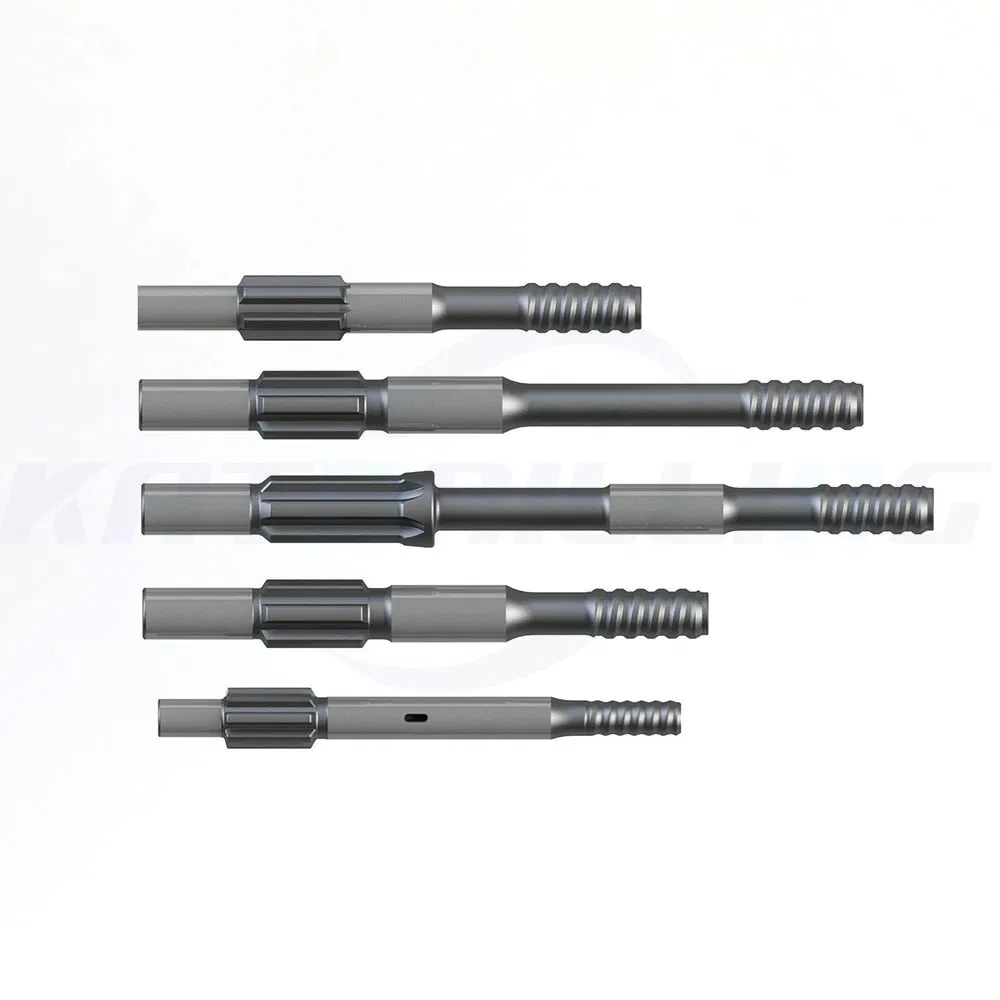

| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YH 65, YH 70, YH 80A, YH 100 RP, YH 135, etc. |

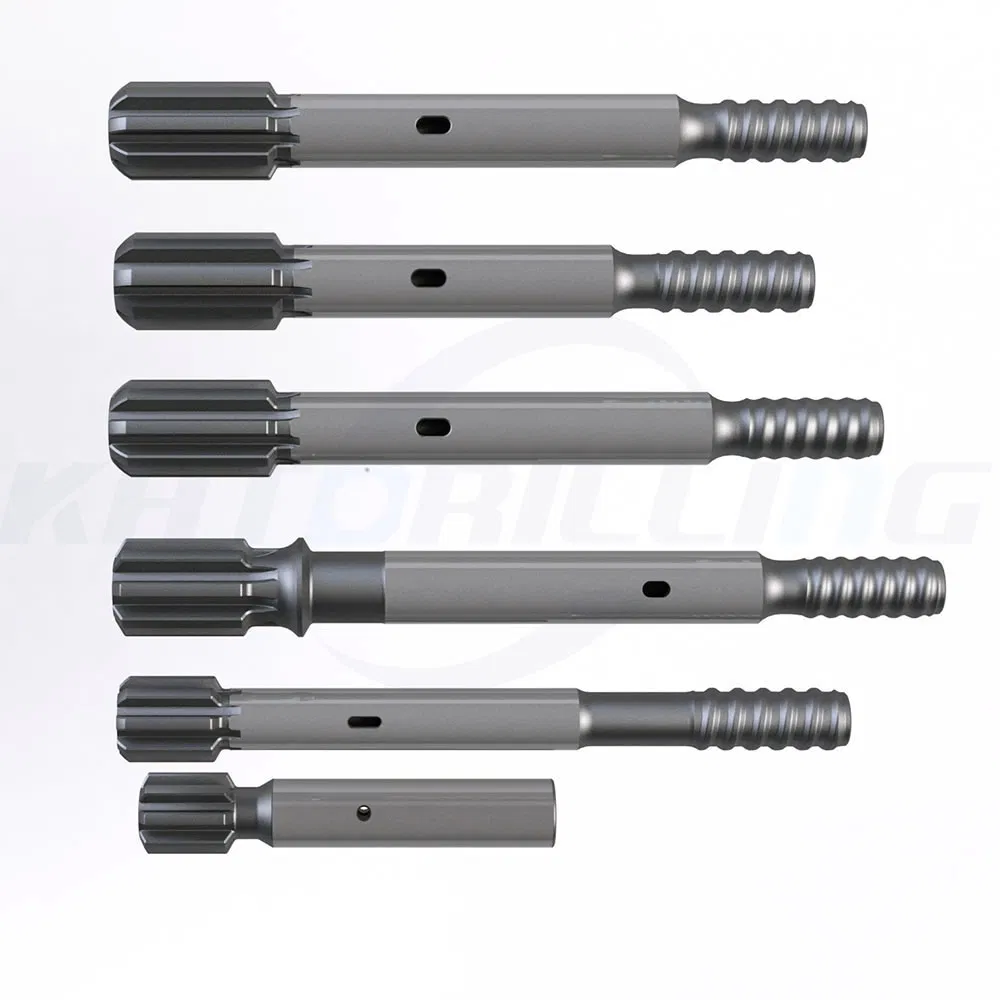

| Montabert | HC 20, hc25, hc40, hc50, hc80, hc105, hc120, hc160, hc170, hc200, etc. |
* Drawing or sample customization services are available upon request.
| Thread | Overall Length (mm) | Overall Length (In.) | Front End Diameter (mm) | Front End Diameter (In.) |
|---|---|---|---|---|
| T38 | 620 | 24.41 | 45 | 1.75 |
| T45 | 620 | 24.41 | 45 | 1.75 |

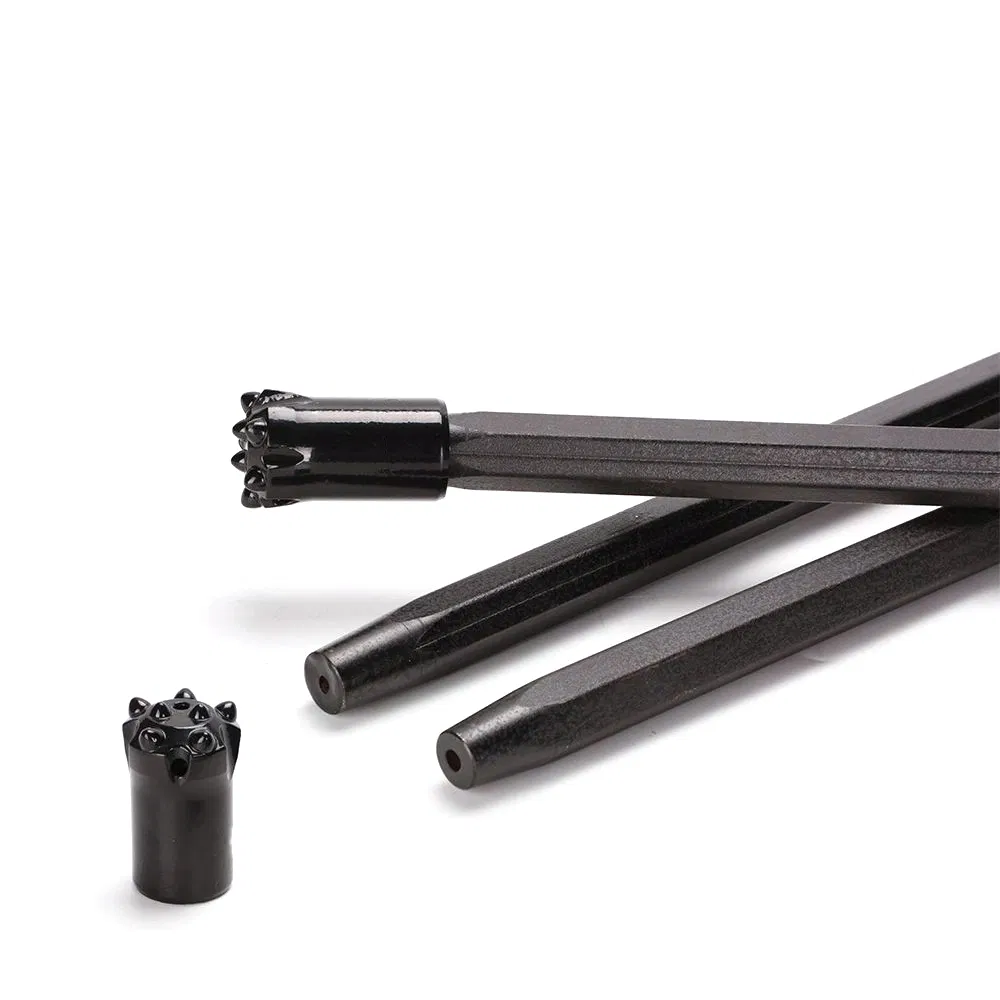

Tapered Equipment: Production of all kinds of rock drilling tools, including tapered chisel bits, cross bits, button bits, H22/H25 drill rods, and pilot adapters.

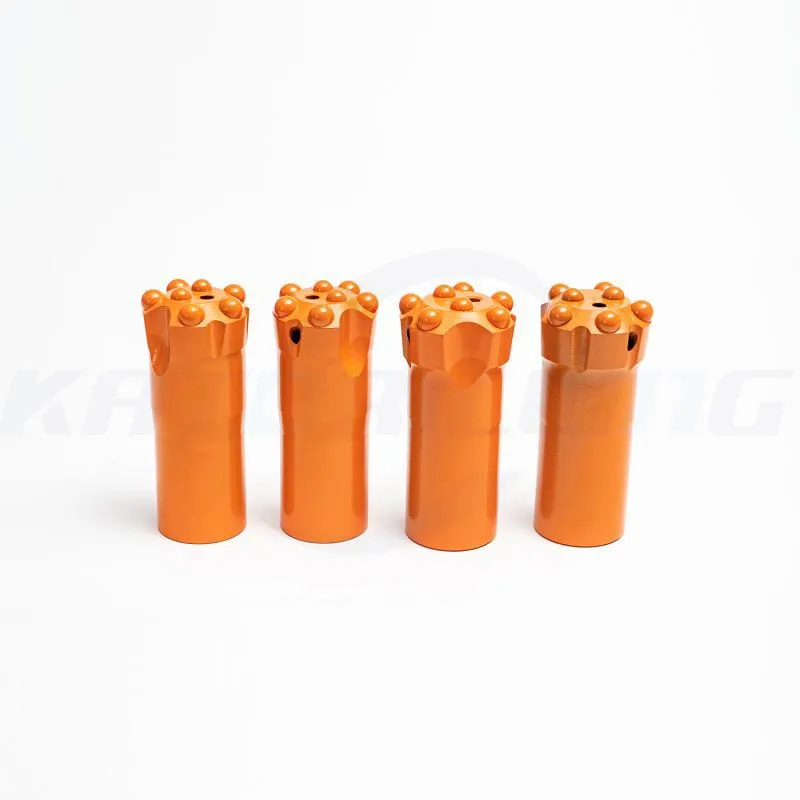

Drifting and Tunneling Button bits: R25, R28, R32, SR32 series button bits with diameters ranging from 33mm to 76mm.

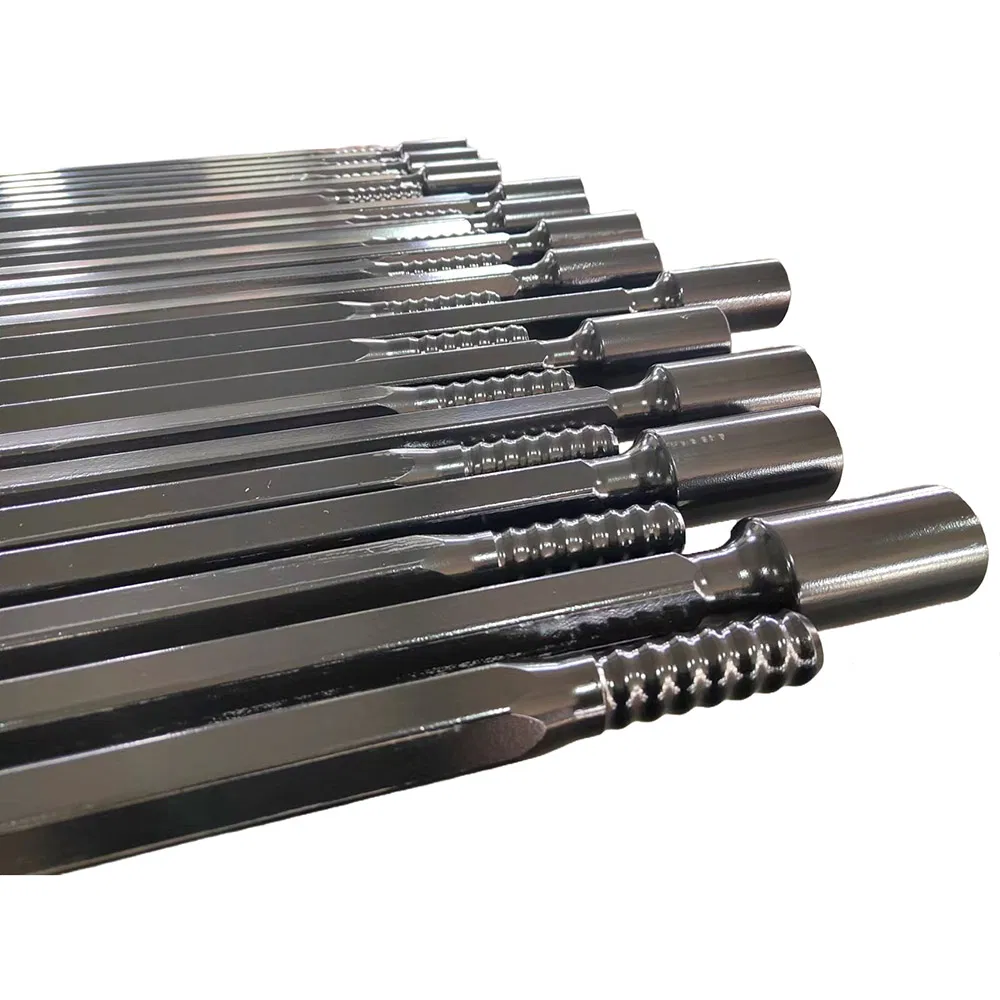

Drifter Rod: HEX25, HEX28, HEX32, and HEX35 series drill rods with lengths from 700mm to 6400mm.

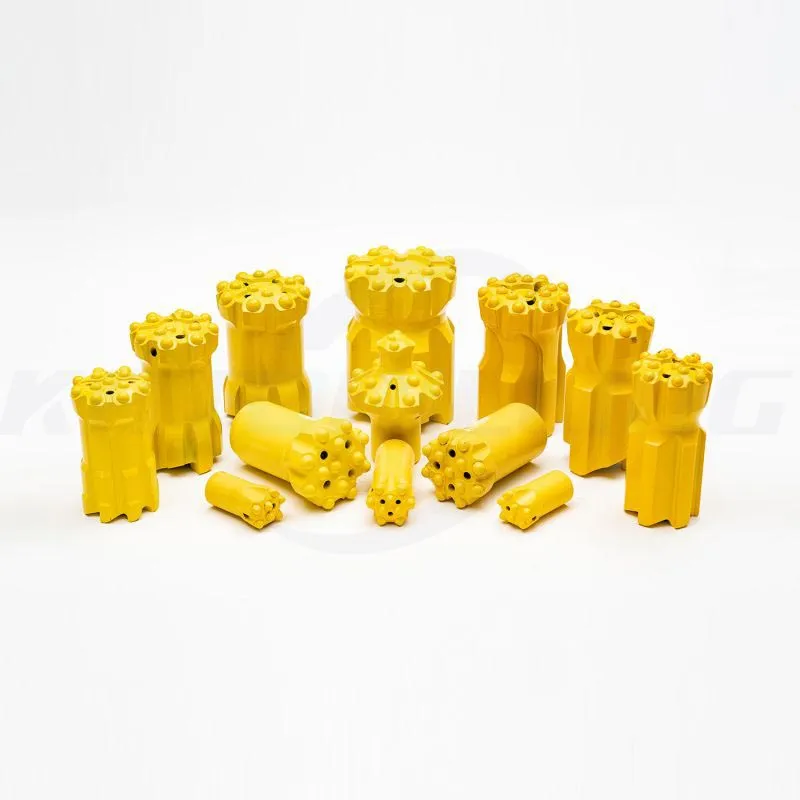

Bench Drilling Tools: T38, T45, T51, T60, ST58, and ST68 series including button bits, retrac bits, and drill tubes.
