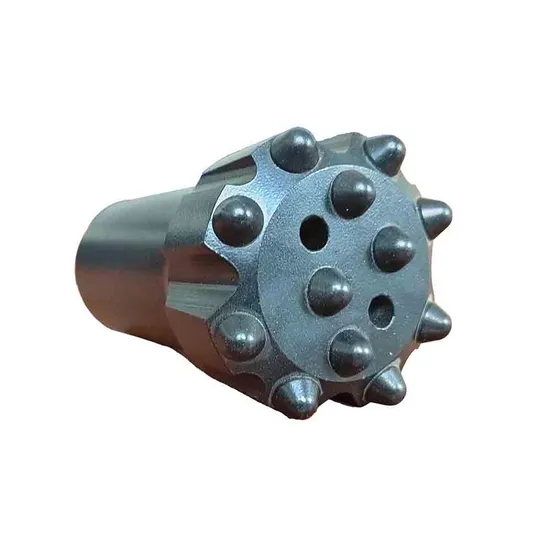

Our drifting and tunnelling tools are engineered for high-performance drilling, encompassing a full range of rods, shank adapters, couplings, and bits. We offer seven primary thread types to meet diverse operational needs: R25, R28, SR28, R32, SR35, and R35.
With diameters ranging from 38mm to 127mm, these components are fully compatible with button bits, cross bits, and reaming products for various geological conditions.
| Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|
| Gauge | Front | mm | inch | Front | Side | ||
| Standard Models | |||||||
| 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| 8 | 11 | 6 | 11 | 76 | 3" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| Drop Center | |||||||
| 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
| 6 | 12.7 | 3/1 | 11/9.5 | 76 | 3" | 3 | 0 |
| 8 | 11 | 4/1 | 10/10 | 76 | 3" | 4 | 0 |
| Flat Face / Retrac | |||||||
| 6 | 11 | 3 | 9.5 | 57 | 2 1/4" | 1 | - |
