High-Quality Tapered Rock drill bits and Mining Drill Bits Manufacturers, Factory

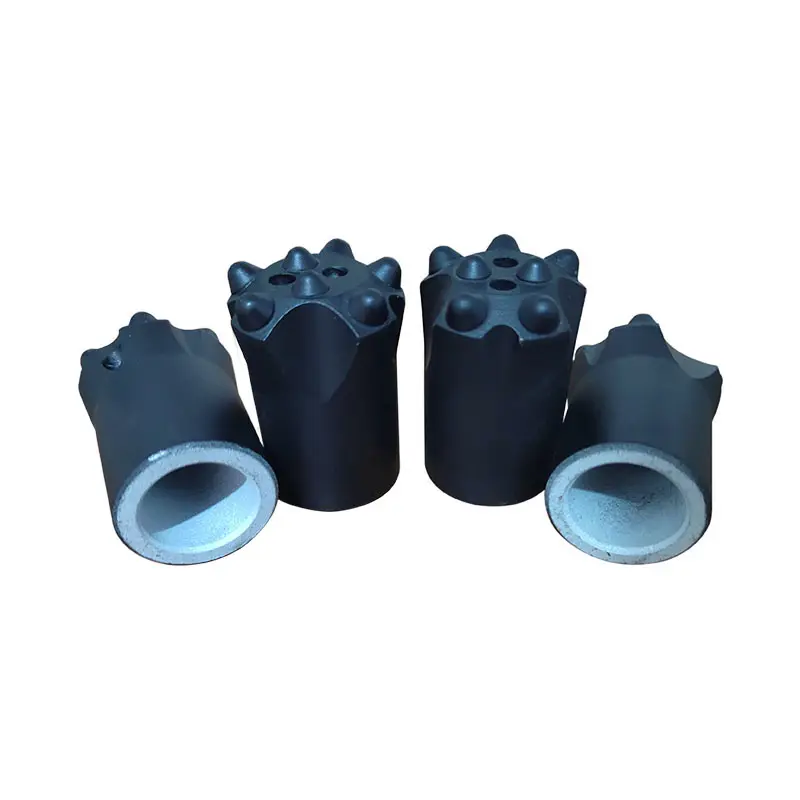

Taper button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying,and mining. Description :

(1)Connect shank Size: Î¦19, Î¦22, Î¦25 at most

(2)Bit Diameter:Diameter 32mm,34mm,36mm, 38mm,40mm

(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.

(4)Materialï¸°Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.

(5)Button Shapeï¸° Ballistic Face Typeï¸° Flat Face; Bit Bodyï¸°Standard

(6)Qty of button: 5,7, 8 pcs

(7)main market: India, Saudi, Chile, South Africa,stone country consume too much

Send Inquiry

Product Description

Product Detail

Tapered button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying and mining.

Supply High quality Rock drill bits and Mining Drill Bits at good price. Rock drill bits and Mining Drill Bits are made of high-quality carbide and advanced processing technology, with longer service life. Cross bit (Cross drill bits) are widely used in mining, tunneling, rock drilling.

Technical Specifications

Connect shank Size: Φ19, Φ22, Φ25 at most
Bit Diameter: 32mm, 34mm, 36mm, 38mm, 40mm
Tapered connection: 6°, 7°, 11°, 12° etc.
Material: Alloy Steel Bar 45CrNiMoV
Tips: Tungsten Carbide Tips YK05 or T6
Button Shape: Ballistic / Face Type: Flat Face
Qty of button: 5, 7, 8 pcs

Button bits for Hex. 22mm

Diameter		Length		No. of buttons	Buttons x Diameter		Gauge Angle	Buttons Angle	Flushing hole		Weight (kg)
mm	inch	mm	inch	No. of buttons	gauge	center	Gauge Angle	Buttons Angle	Side	Center	Weight (kg)
For 22 mm (7/8") hex. Rod 4°46' taper angle. Short Skirt
36	1 13/32"	50	1 31/32"	7	5x7	2x7	35°	-	1	2	0.2
For 22 mm (7/8") hex. Rod 4°46' taper angle. Long skirt
33	1 5/16"	71	2 5/32"	7	5x8	2x7	40°	15°	1	1	0.3
36	1 13/32"	71	2 5/32"	7	5x9	2x7	35°	-	1	1	0.3
For 22 mm (7/8") hex. Rod 7° taper angle. Long skirt
30	1 3/16"	80	3 5/32"	7	5x6	2x7	35°	15°	2	1	0.2
32	1 1/4"	80	3 5/32"	7	5x7	2x7	35°	15°	1	1	0.3
For 22 mm (7/8") hex. Rod. 11° taper angle. Short skirt.
32	1 1/4"	55	2 5/32"	8	6x7	2x7	39°	15°	1	1	0.2
For 22 mm (7/8") hex. Rod. 12° taper angle. Short skirt.
28	1 3/32"	50	1 31/32"	6	4x6	2x6	35°	-	1	1	0.2

Button bits for Hex. 25mm

Diameter		Length		No. of buttons	Buttons x Diameter		Gauge Angle	Buttons Angle	Flushing hole		Weight (kg)
mm	inch	mm	inch	No. of buttons	gauge	center	Gauge Angle	Buttons Angle	Side	Center	Weight (kg)
For 25 mm (1") hex. Rod 7° taper angle. Long skirt
41	1 5/8"	71	2 25/32"	7	5x9	2x8	40°	-	1	1	0.4
43	1 11/16"	71	2 25/32"	9	6x9	3x7	40°	-	1	3	0.5

Cross Bit

DIAMETER		FLUSHING HOLE	GAUGE CARBIDE
MM	IN	FLUSHING HOLE	GAUGE CARBIDE
7° SYSTEM BITS
32	1 1/4"	1F 2G	14 x 8
35	1 3/8"	1F 2G	14 x 8
11° SYSTEM BITS
38	1 1/2"	1F 4G	7 x 8
12° SYSTEM BITS
30	1 3/16"	1F 2G	15 X 8
32	1 1/4"	1F 2G	14 X 8

Frequently Asked Questions

Q1: What are the primary applications for tapered button bits?

Tapered button bits are primarily used as small hole bits for air leg or hand-held jack hammer drillers in quarrying, mining, and tunneling operations.

Q2: What materials are used in the manufacturing of these drill bits?

Our bits are constructed from high-quality 45CrNiMoV alloy steel bars, featuring premium tungsten carbide tips (YK05 or T6) for enhanced durability.

Q3: Which tapered connection degrees do you provide?

We supply various tapered connections, including 6-degree, 7-degree, 11-degree, and 12-degree systems to match different drill rod requirements.

Q4: What is the difference between a cross bit and a button bit?

Cross bits are widely used for hard rock and fractured rock conditions in mining and tunneling, while button bits offer faster penetration and longer life in most standard rock drilling scenarios.

Q5: How many buttons are typically on a tapered button bit?

Depending on the diameter and specific requirements, the quantity of buttons usually ranges from 5, 7, to 8 pieces per bit.

Q6: Can these bits be used with air leg drills?

Yes, these tapered button bits are specifically designed to be used with air leg drills or hand-held jack hammers for efficient rock penetration.
