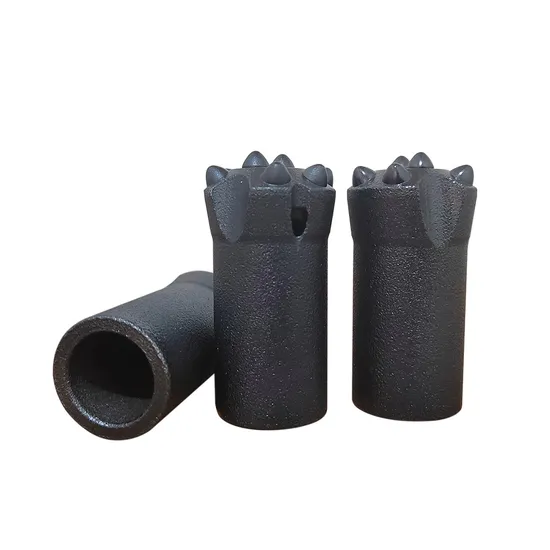

High-Quality Tapered Rock Drilling Tools 34mm 7/8 Buttons Tapered Drill Button Bit with Taper 12 Degree Manufacturers, Pricelist

1 / 5

High-Quality Tapered Rock Drilling Tools 34mm 7/8 Buttons Tapered Drill Button Bit with Taper 12 Degree Manufacturers, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	Repair or Replacement

Send Inquiry

Product Description

Basic Information

Model NO.

34mm

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Surface Treatment

Spray-Paint

Manufacturing Process

Stamping

Material

Carbon Steel

Degree

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Tungsten Carbide

Yk05 or T6

Buttons

7/8

HS Code

82071990

Production Capacity

500,000 PCS/Month

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

Tapered Bits Technical Features:

Connect Shank Size: 19mm, Φ22mm, 25mm maximum.
Bit Diameter Range: 30mm, 32mm, 34mm, 36mm, 38mm, 40mm.
Tapered Connection: 6°, 7°, 11°, 12°, etc.
Material: High-quality Alloy Steel Bar 45CrNiMoV.
Tungsten Carbide Tips: Premium YK05 or T6 grades.
Design: Semi-Ballistic Button Shape with Flat Face and Standard Bit Body.
Button Configuration: Available in 5, 7, and 8 pcs setups.

Technical Specifications

Diameter		Length		No. of Buttons	Button Size (mm)		Gauge Angle	Flushing Hole		Weight (kg)
mm	inch	mm	inch	No. of Buttons	Gauge	Center	Gauge Angle	Side	Center	Weight (kg)
For 22 mm (7/8") hex. Rod 4°46' taper angle (Short Skirt)
36	1 13/32"	50	1 31/32"	7	5x7	2x7	35°	1	2	0.2
For 22 mm (7/8") hex. Rod 4°46' taper angle (Long skirt)
33	1 5/16"	71	2 5/32"	7	5x8	2x7	40°	1	1	0.3
36	1 13/32"	71	2 5/32"	7	5x9	2x7	35°	1	1	0.3
For 22 mm (7/8") hex. Rod 7° taper angle (Long skirt)
30	1 3/16"	80	3 5/32"	7	5x6	2x7	35°	2	1	0.2
32	1 1/4"	80	3 5/32"	7	5x7	2x7	35°	1	1	0.3
For 22 mm (7/8") hex. Rod 11° taper angle (Short skirt)
32	1 1/4"	55	2 5/32"	8	6x7	2x7	39°	1	1	0.2
34	1 11/32"	50	1 31/32"	9	6x7	3x7	40°	2	-	0.3

Frequently Asked Questions (FAQ)

Q1: What materials are used in the construction of these tapered bits?

A: The bits are manufactured using high-grade Alloy Steel Bar 45CrNiMoV for the body and premium Tungsten Carbide Tips (YK05 or T6) for superior drilling performance.

Q2: What taper angles are available for connection?

A: We provide various tapered connection options including 6 degree, 7 degree, 11 degree, and 12 degree angles to suit different drilling requirements.

Q3: What is the monthly production capacity for these drilling tools?

A: Our facility has a robust production capacity of approximately 500,000 pieces per month, ensuring a steady supply for large-scale operations.

Q4: Are there different button shapes and configurations available?

A: Yes, the bits feature a semi-ballistic button shape with a flat face. Depending on the model, they come with 5, 7, 8, or 9 buttons.

Q5: How are the products packaged for international transport?

A: To ensure safety during transit, all tapered bits are securely packed in durable wooden cases, with a standard gross weight of approximately 5.000kg per package.

Q6: What surface treatments are applied to the bits?

A: The bits undergo a professional spray-paint surface treatment, available in colors such as red, black, yellow, and white for identification and corrosion resistance.
