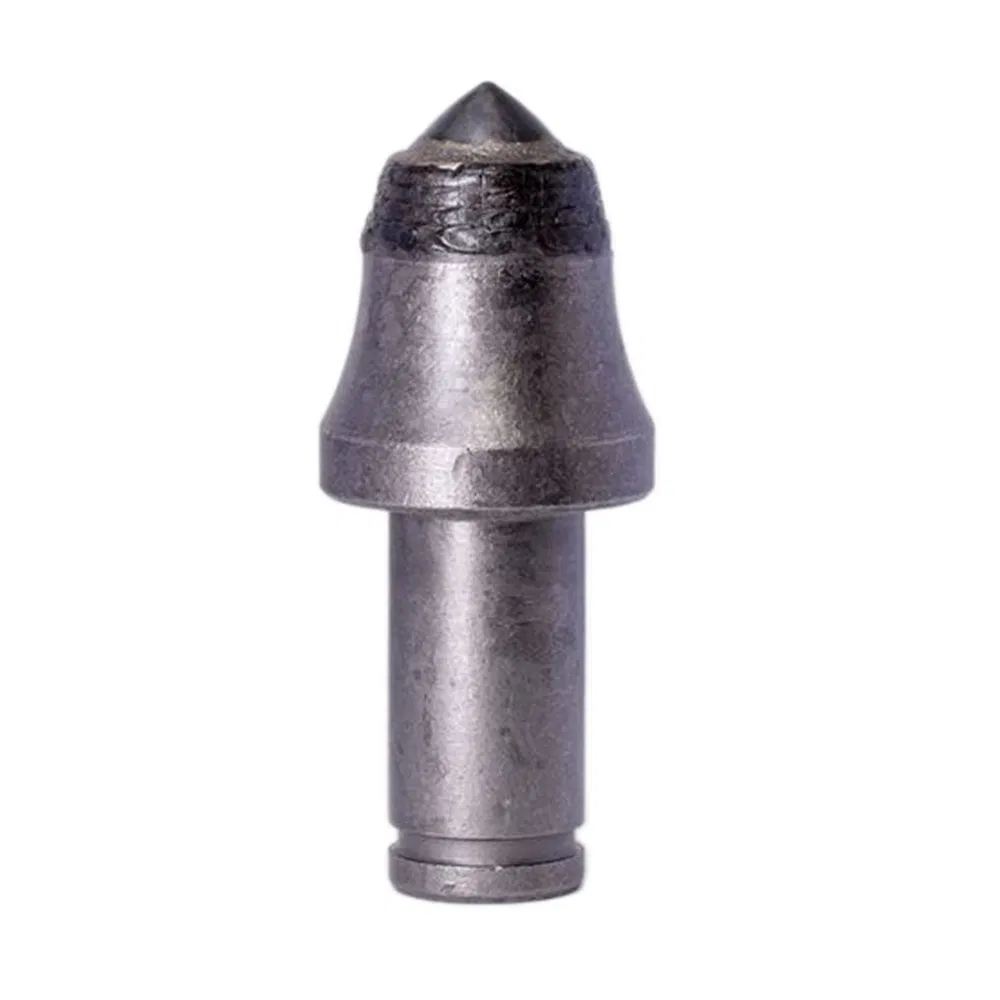

1. Alloy Steel Body: Manufactured using ASTM4140 (42CrMoA) material with heat treatment achieving HRC38-42 hardness. It features high toughness and excellent wearable characteristics.

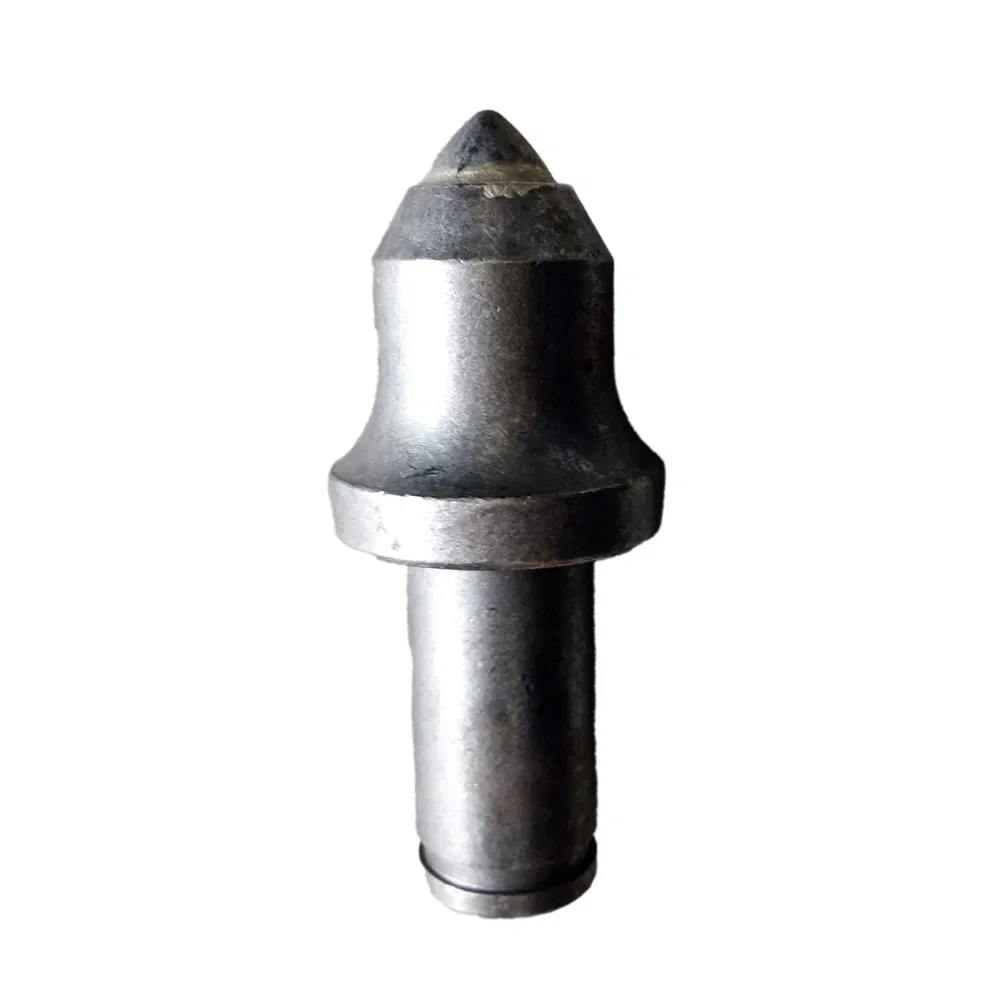

2. Tungsten Carbide Tip: Produced from low-pressure sintered carbide. Grades are specifically selected based on target projects to ensure optimal performance during operation.
3. Operational Performance: These products are designed for high feed rates, long service life, and minimized tool-changing downtime. Suitable for surface mining, underground mining, and tunneling applications.
Replacement Compatibility: Our products serve as high-quality replacements for various industry specifications, including 19mm, 20mm, 25mm, 30mm, 35mm, and 52mm round shank tools (U43, U50, U765, U85, U92, U200 series etc.).
| Model | Carbide (D1) | Body (D2) | Clip (D3) | Clip Width | Holder Length | Body Length | Type |
|---|---|---|---|---|---|---|---|
| DMT3050 | 16-22 | 50 | 30 | 38 | 70-90 | 130-150 | Rotary picks |
| DMT3055 | 19-30 | 55 | 30 | 38 | 75 | 135 | Rotary picks |
| DMT3060 | 19-30 | 60 | 30 | 38 | 73-92 | 133-152 | Rotary picks |

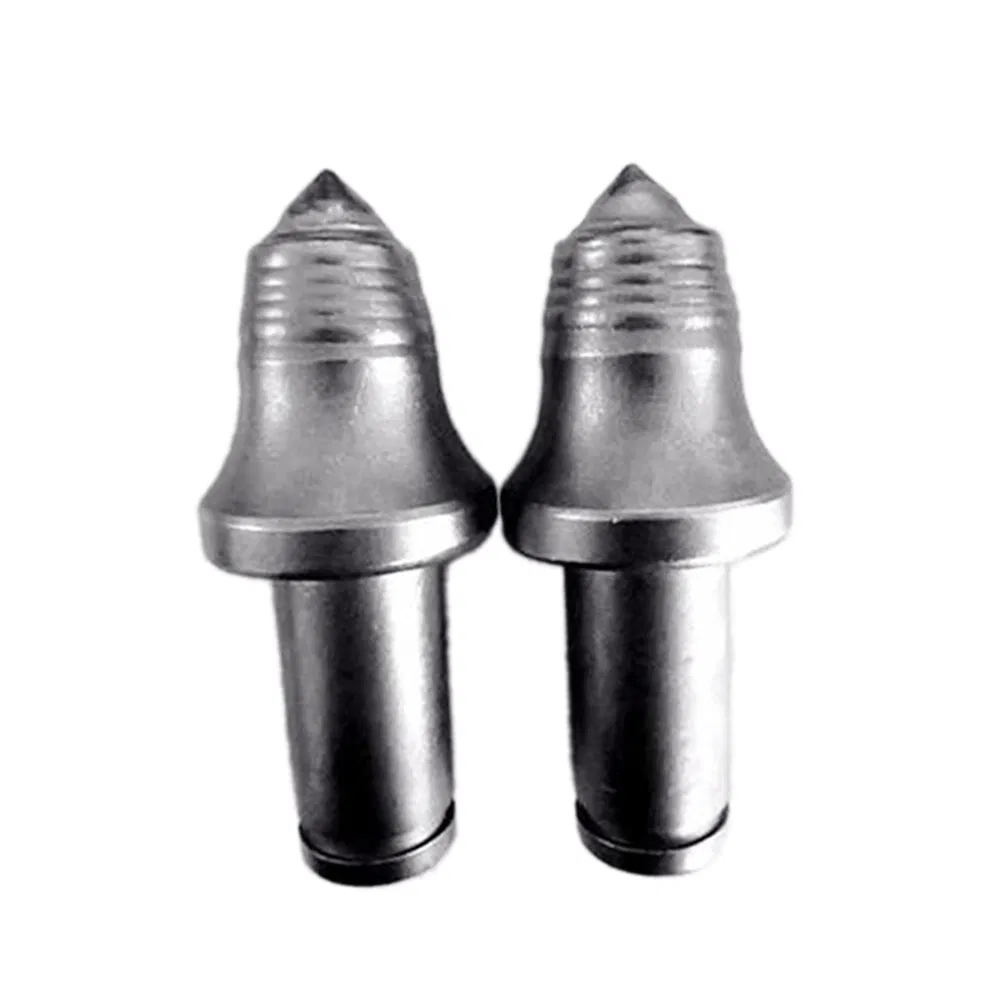

| DMT U84 | 16-22 | 30 | 26 | 28 | 80 | 152 | Coal picks |
| DMT U92 | 16-22 | 35 | 30 | 28 | 102 | 196 | Coal picks |
| DMT U94 | 19-25 | 35 | 30 | 28 | 90 | 184 | Coal picks |
| DMT U95 | 22-30 | 35 | 30 | 28 | 90 | 184 | Coal picks |
